VisuNet FLX System
Mechanical Installation
4.
Carefully fit pre-assembled top sunshield over top of outer housing and install and tighten the 4
screws to a torque of 4 Nm.

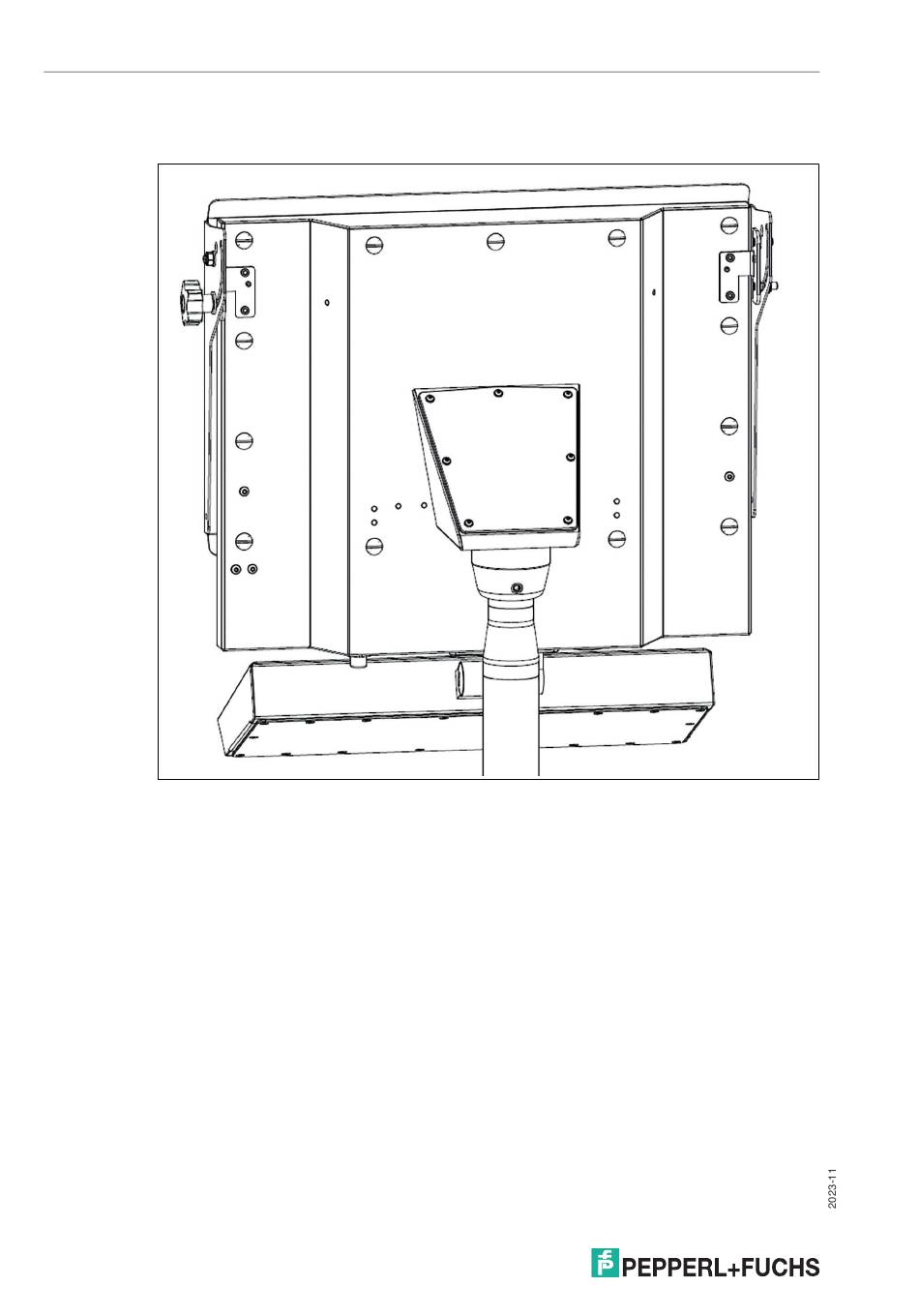

Figure 4.35
5.
Rotate sunshield top into desired operating position and firmly hand tighten knob.
6.
The sunshield top assembly is now complete.
