VisuNet FLX System

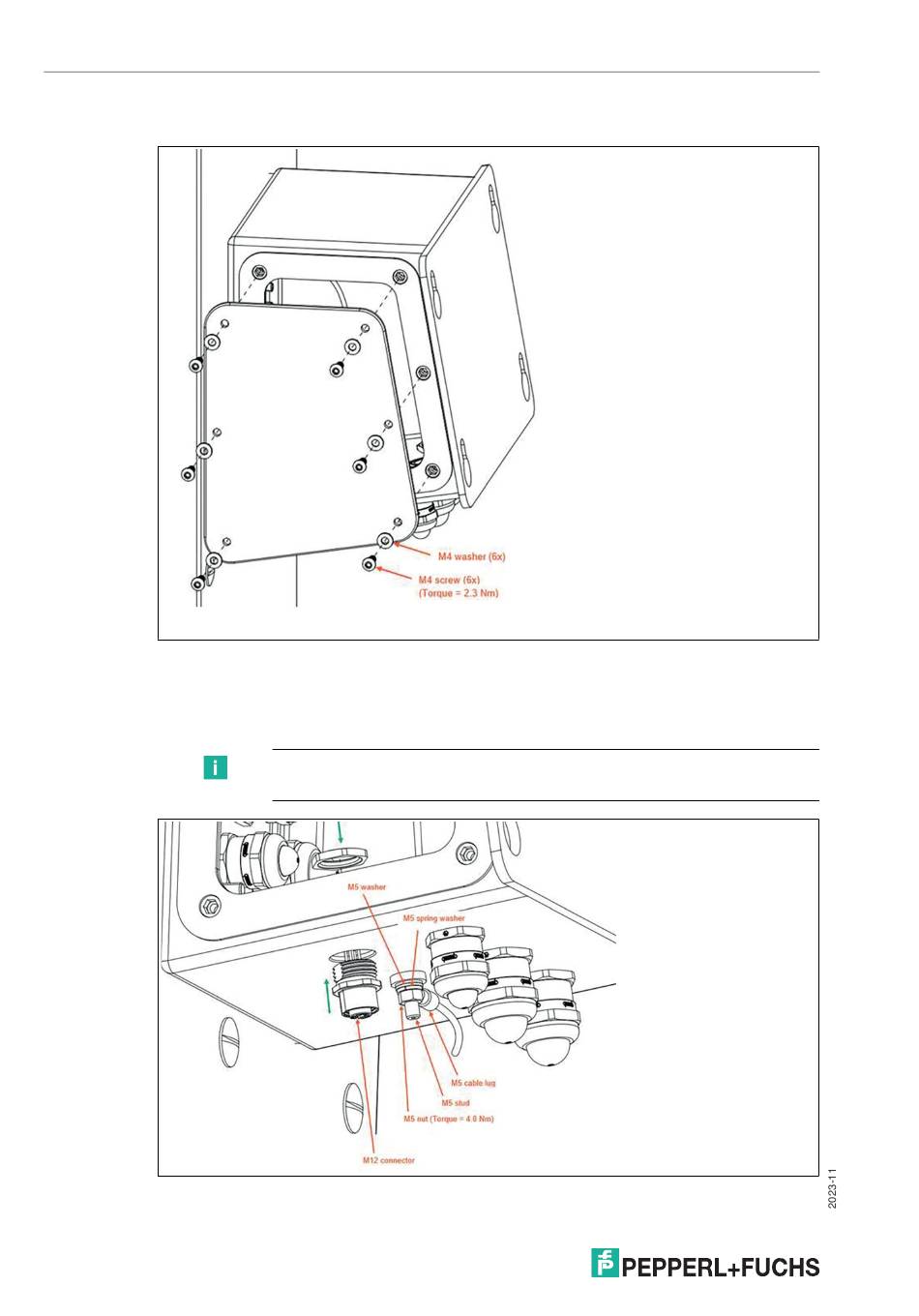

Mechanical Installation
1.
Remove cover.
Figure 4.22
2.
Remove M16 blind plug. In same hole, install the M12 socket. Tighten the M12 socket with 0.6
Nm. The lock nut of the coupling in the adapter with 2 Nm.
3.
Install ground cable in position shown.
Figure 4.23
48
Note
This step can also be performed last.
