Mechanical Installation
1.

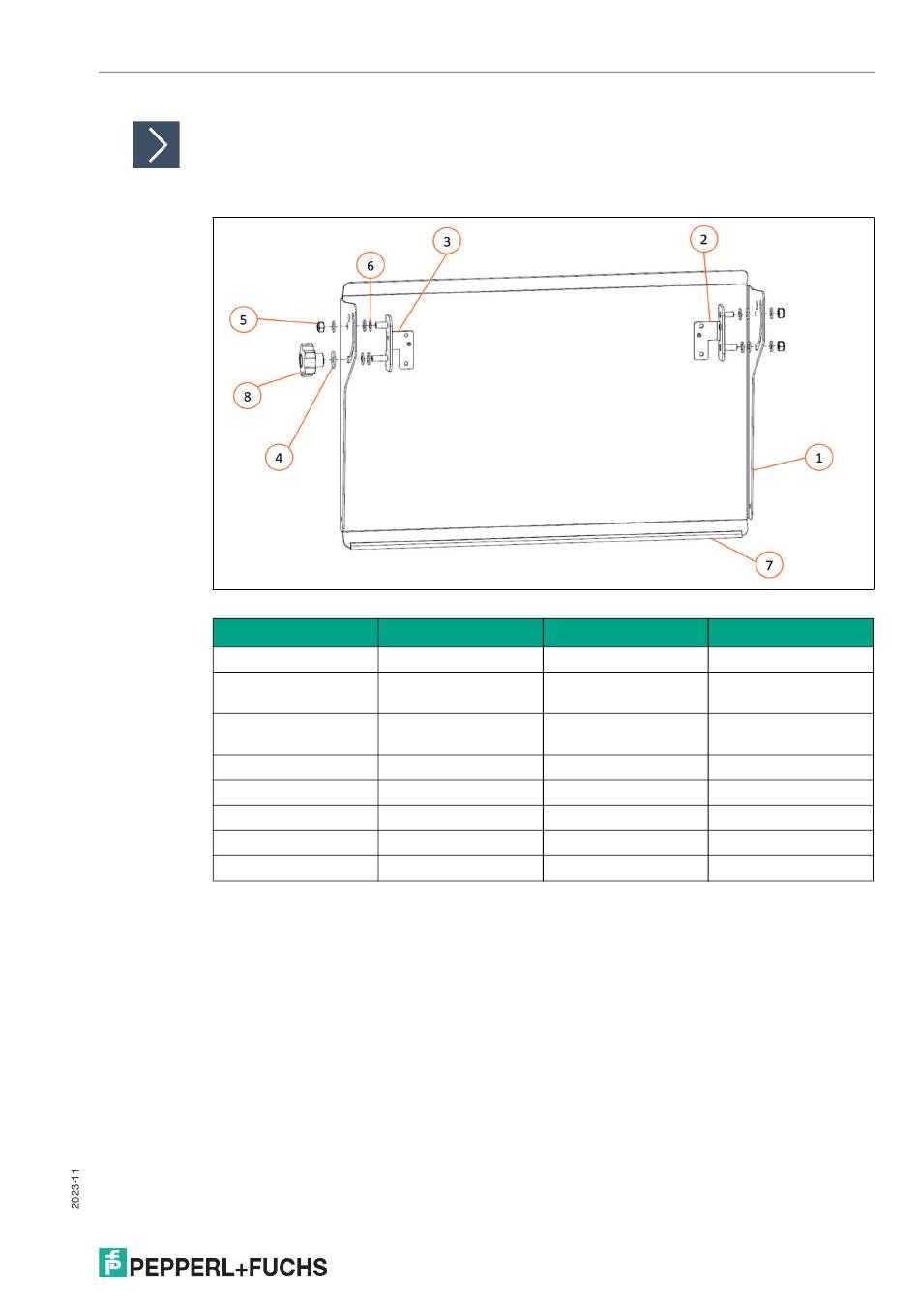

Pre-assemble the top sunshield as shown in the figure.
Figure 4.32
Item
1
2
3
4
5
6
7
8
Items for the pre-installation of the top sunshield
QTY
1
1
1
1
3
11
1
1
Description
Part-No.
Sunshield top
-
Sunshield Mounting
-
Bracket, left
Sunshield Mounting
-
Bracket, right
Washer, M8 oversized 126822
M8 lock nut
311489
Washer, M8 flat
522104
Edge protector
523747
Knob, M8 lobe
922550
55
