VisuNet FLX System
Electrical Installation

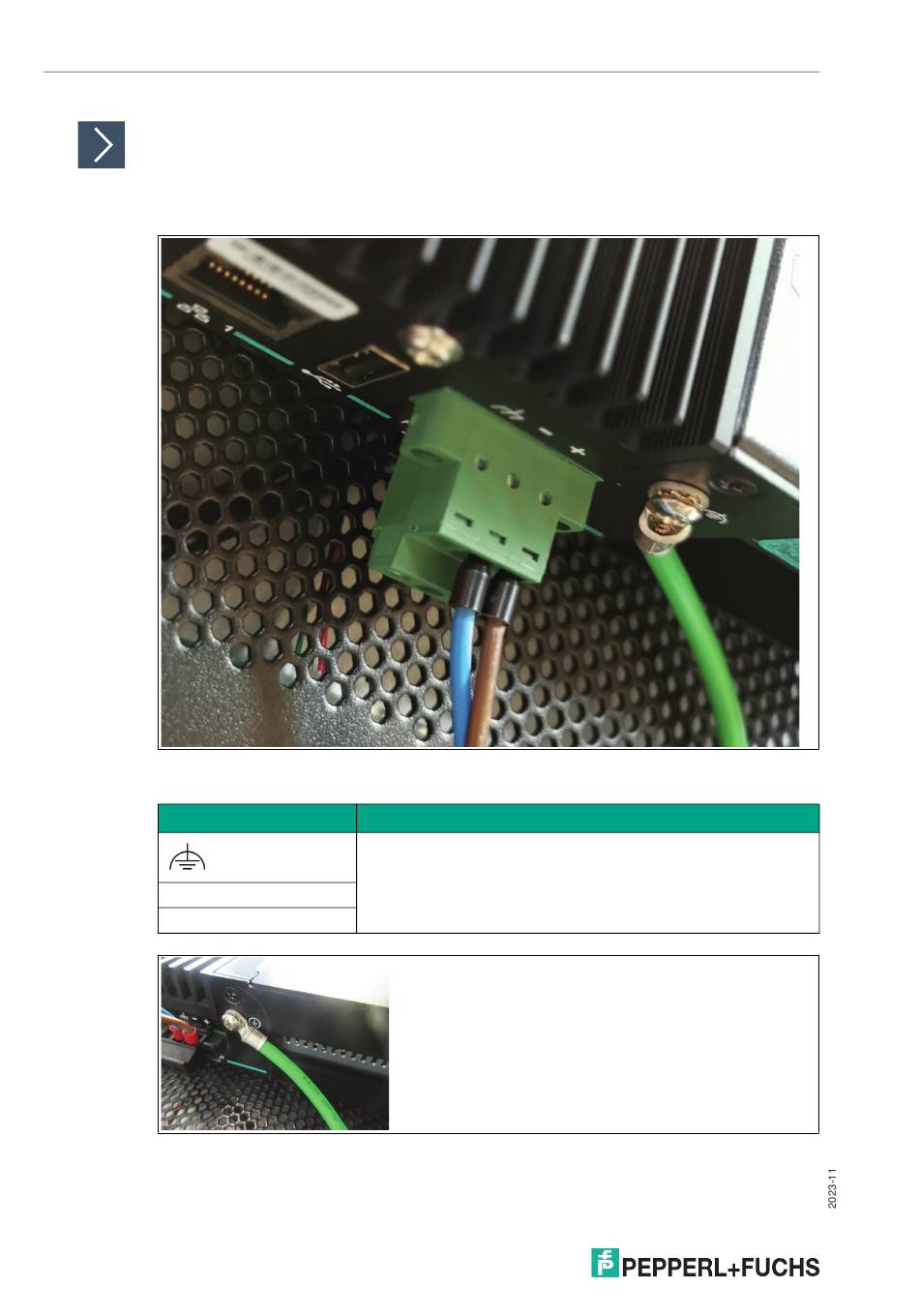

Wiring and Connecting the Terminal Block Field Input
1.
Remove the terminal block from the computing unit and connect the power cable to the
terminal block with a torque of 0.5 - 0.6 Nm.
Figure 5.7
Pin No.
-
+
Figure 5.8
Place the terminal block in the computing unit and tighten the screws with a torque of 0.5 Nm.
76
Allowed Cable Diameter
16 ... 12 AWG
(1.5 ... 4 mm²)
