VisuNet FLX System
Mechanical Installation
11.
The sunshield top and back assembly is now complete.

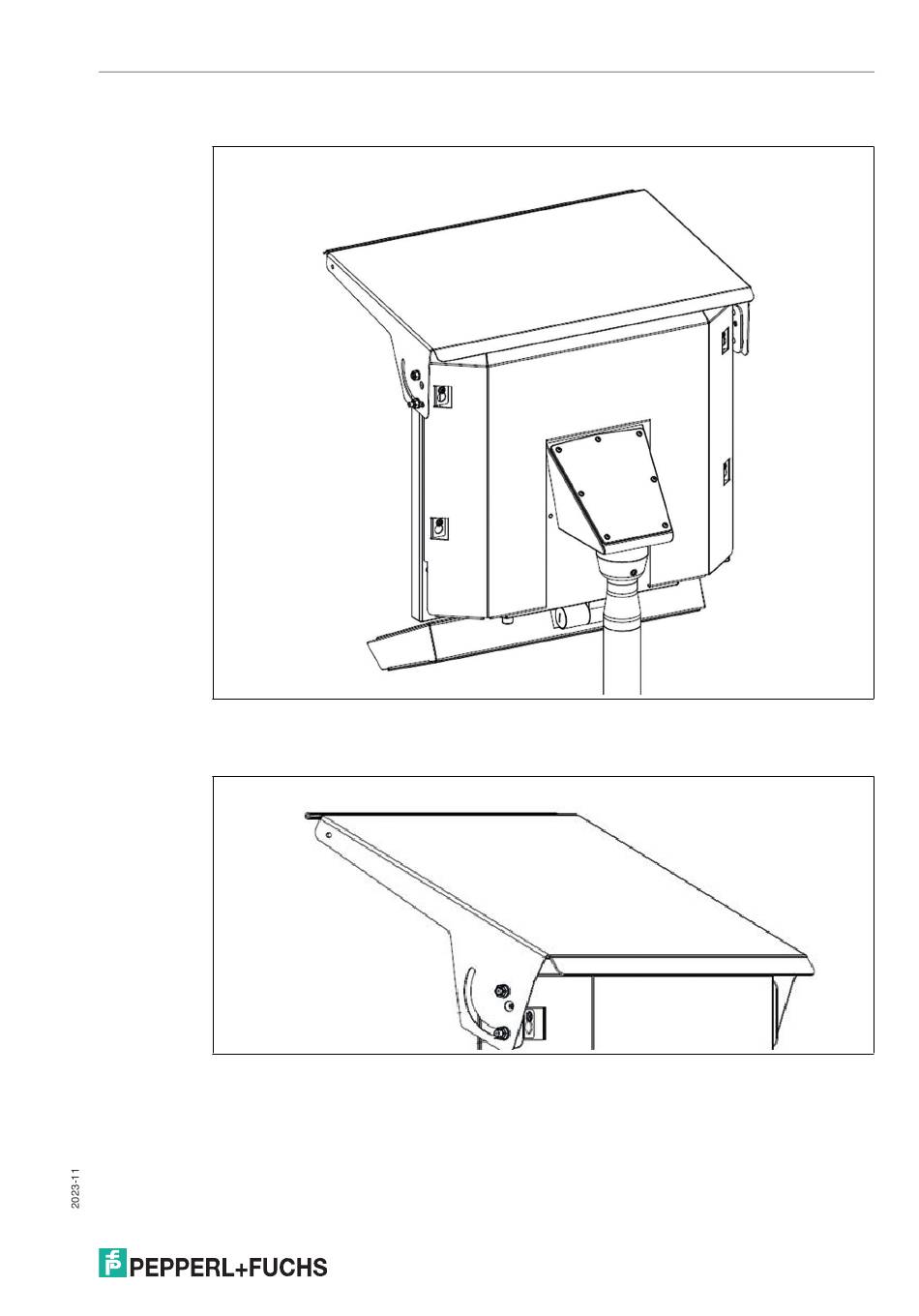

Figure 4.44
12.
Rotate top shield as shown until the side hole aligns with the screw mounting hole. Temporarily
tighten nuts in slotted holes to hold the top shield in position.
Figure 4.45
65
