VisuNet FLX System

Mechanical Installation

Carefully fit pre-assembled top sunshield over top of outer housing and install and tighten the 4

screws to a torque of 4 Nm.

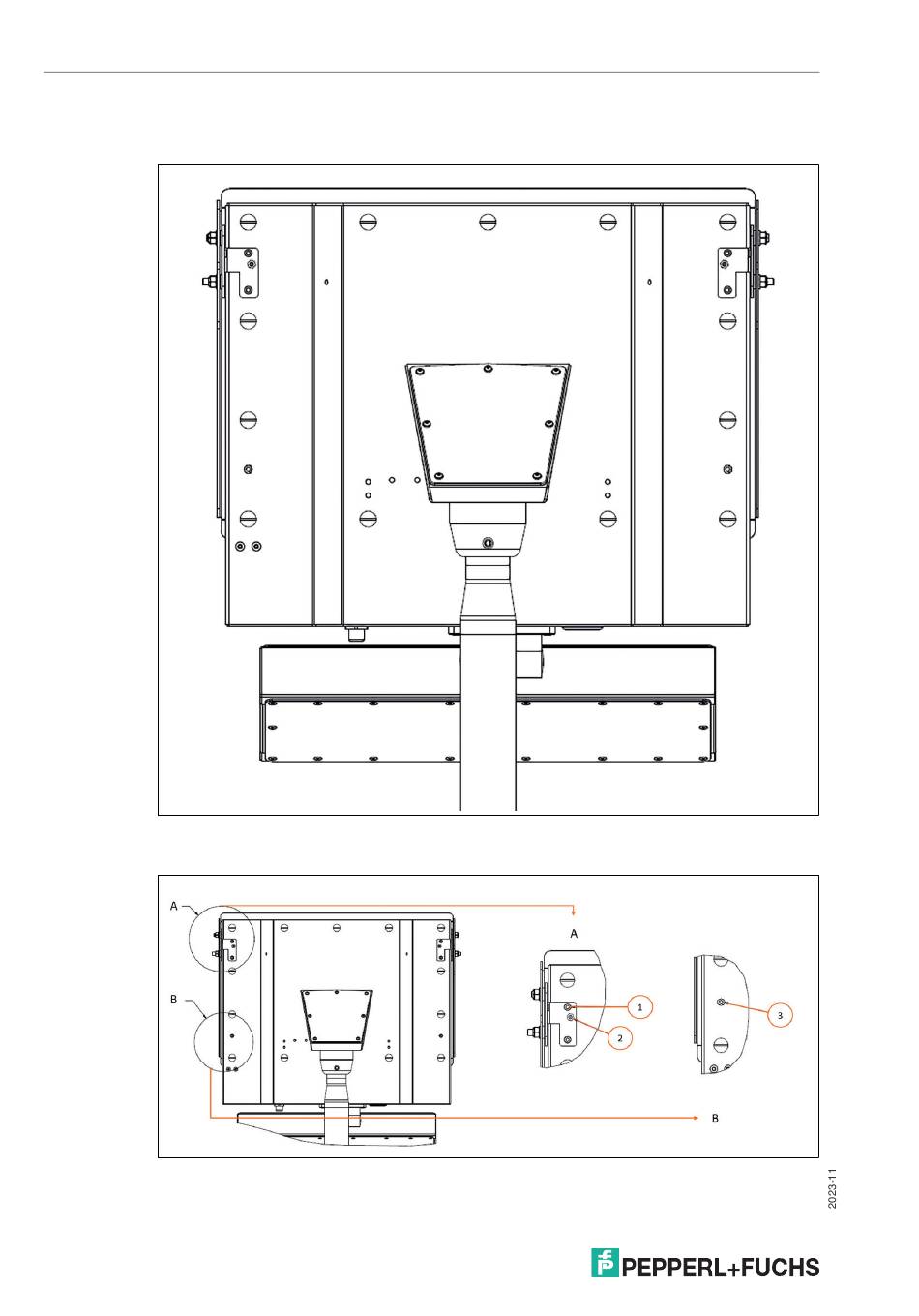

Figure 4.40

Install the 2 female-female spacers to mounting brackets and tighten to a torque of 3 Nm.

Figure 4.41
