VisuNet FLX System
Electrical Installation
5.2.1
Equipotential Bonding Connection of the Housing to the Pedestal
When the AG-3200-* housing option is selected, the VisuNet FLX is shipped with the following
PB connections:

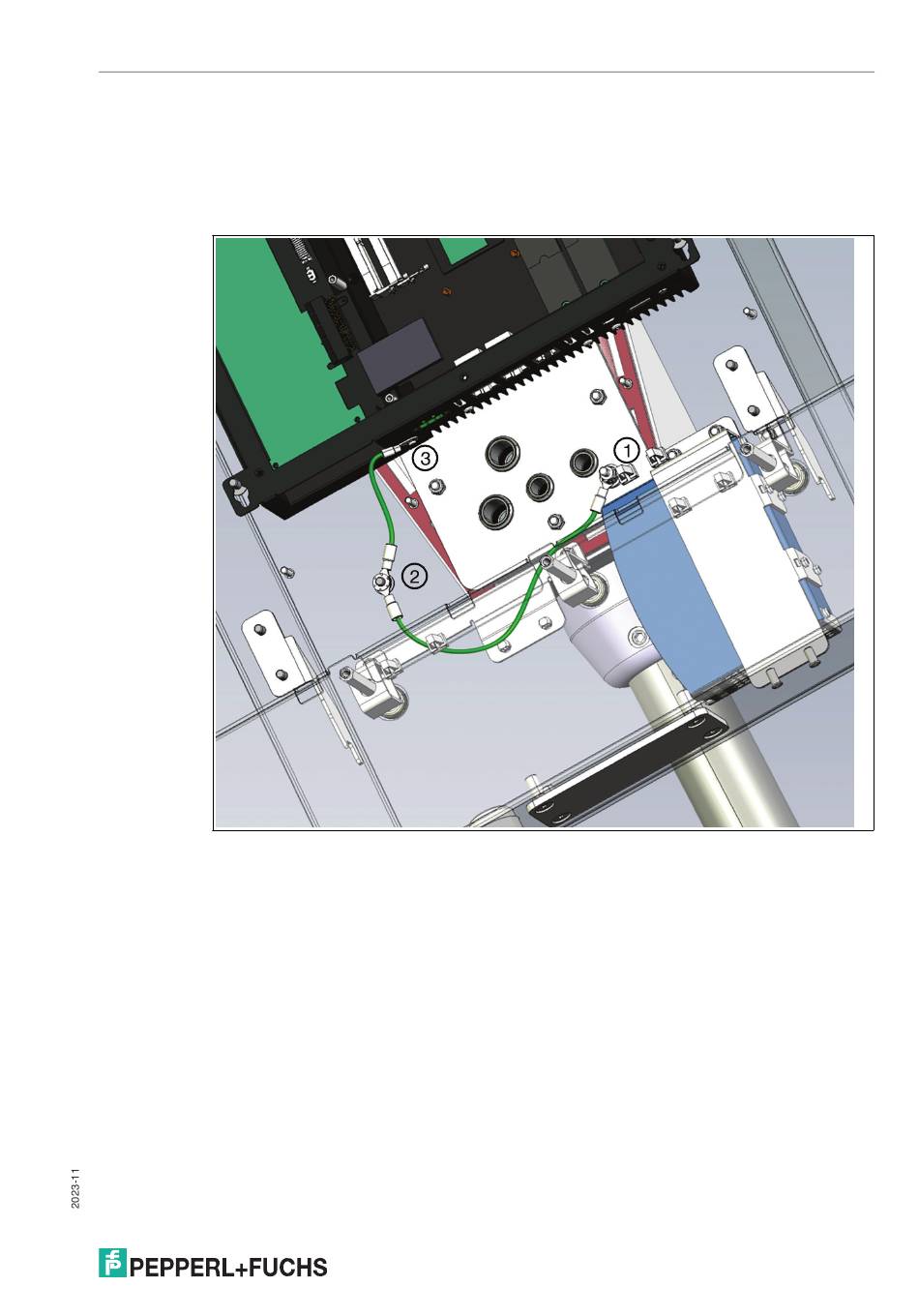

PB wire from the adapter plate (1) to a lens head screw of the panel (2) and an extra PB wire to
the computing platform housing (3).
Figure 5.2
If you replace the DPU or PSU, reestablish the PB connection in the same configuration.
Tighten the PE hardware to 4 Nm (2) and 2,3 Nm (1) and build up the equipotential bonding
welding rods as shown in the picture:
71
