VisuNet FLX System
Electrical Installation

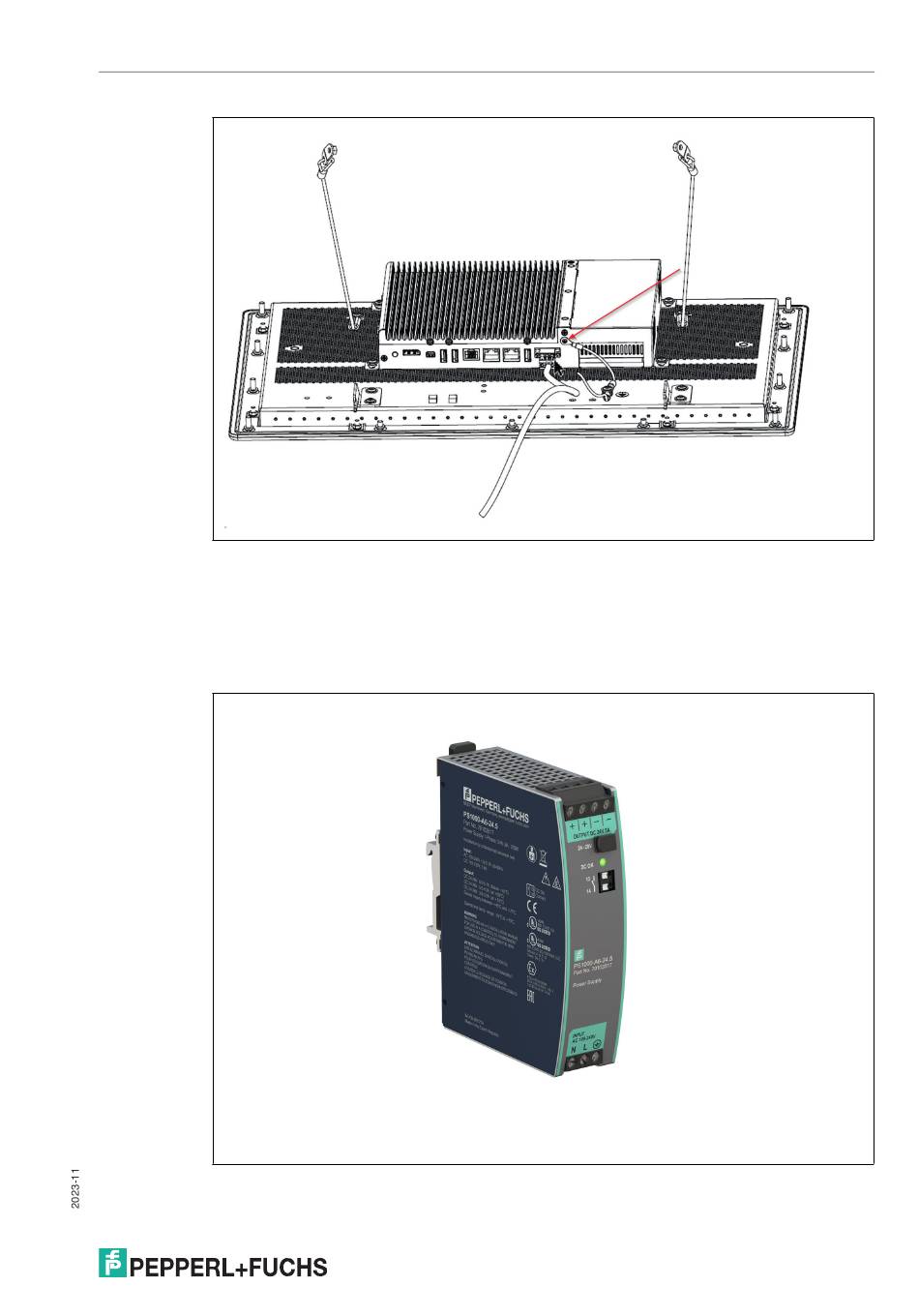

Figure 5.9
5.3.2

Connecting the AC Power Supply

If the VisuNet FLX is configured with AC/DC power supply, the Power supply unit is preinstalled
in the system.
AC-Power Supply
Figure 5.10
PS1000-A6-24.5
77
