VisuNet FLX System
Mechanical Installation
8.

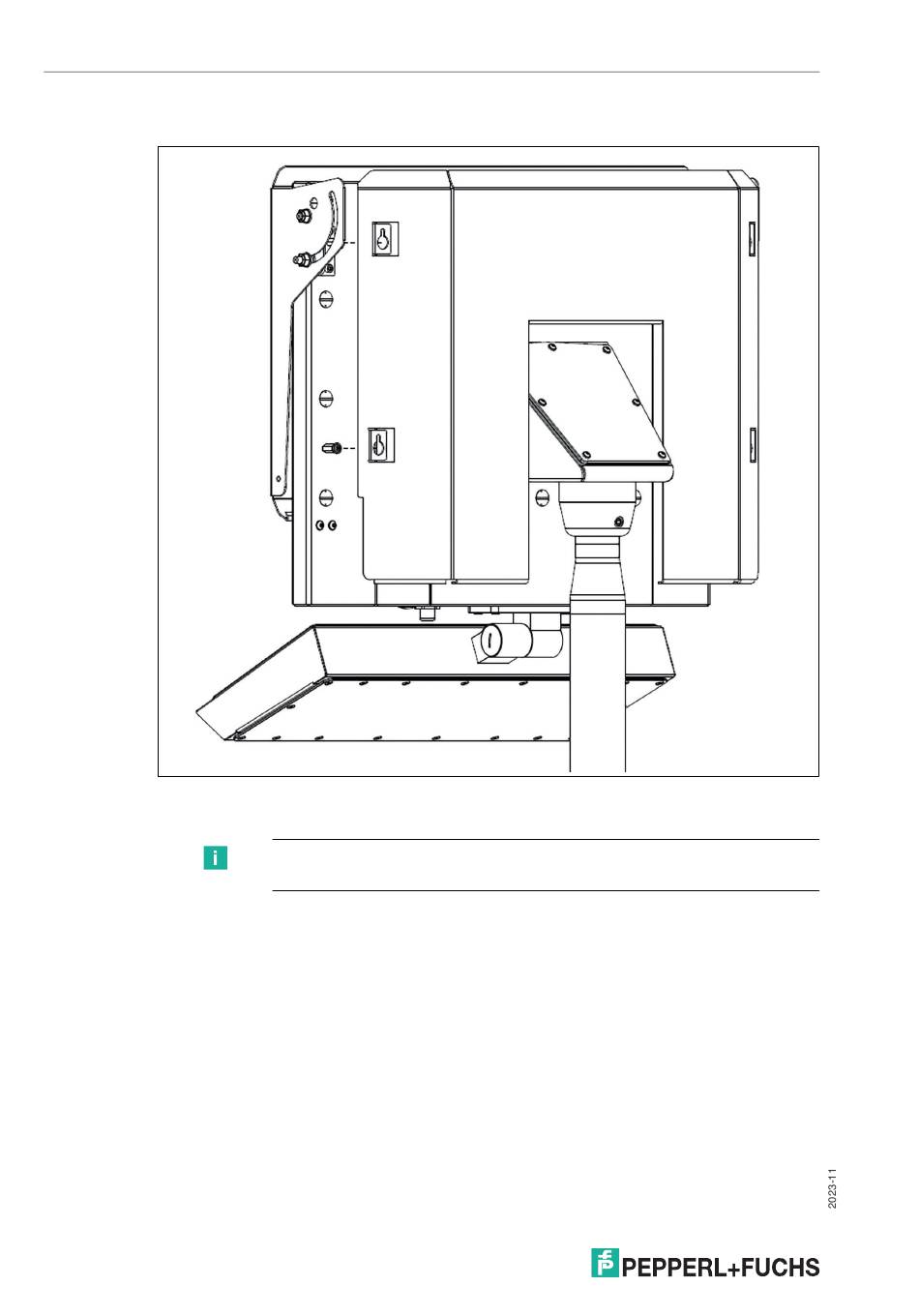

Align back shield with the 4 screws with the keyhole slots and set into place.
Figure 4.43
9.
Tighten the 4 screws to a torque of 2.3 Nm.
10.
Rotate sunshield top into desired operating position and tighten the 2 M8 nuts in slotted holes
to a torque of 8 Nm.
64
Note
If side shields will be installed skip the next step.
