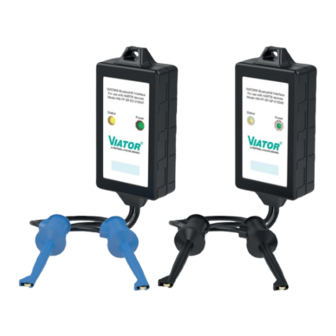

Pepperl+Fuchs HM-PF-BT-EX-010041 Manual

Pepperl+Fuchs HM-PF-BT-EX-010041 Manual

Viator bluetooth hart interface

Advertisement

Quick Links

Viator Bluetooth® HART
Interface
HM-PF-BT-EX-010041
HM-PF-BT-GP-010040
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HM-PF-BT-EX-010041 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pepperl+Fuchs HM-PF-BT-EX-010041

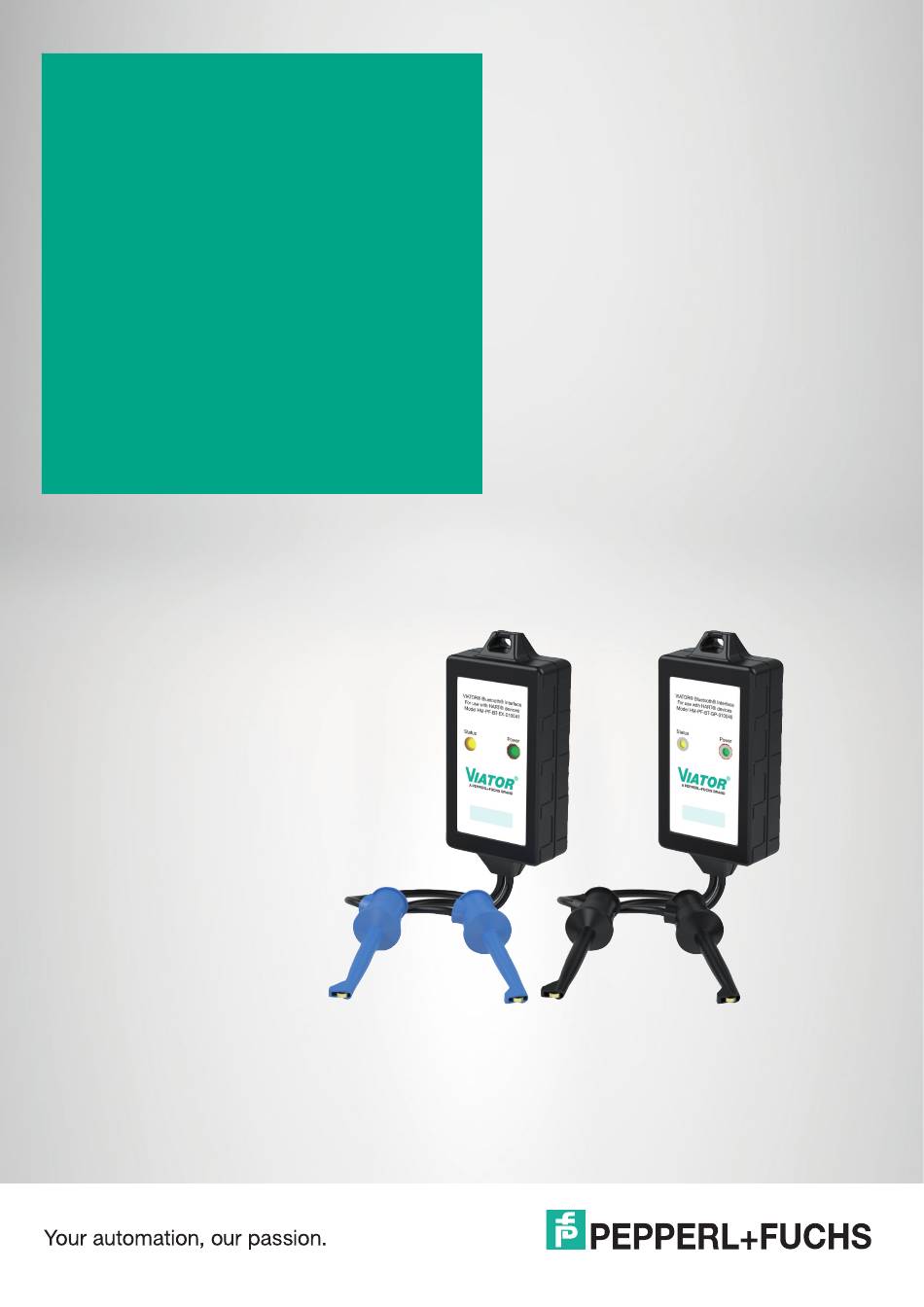

  • Page 1 Viator Bluetooth® HART Interface HM-PF-BT-EX-010041 HM-PF-BT-GP-010040 Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
  • Page 3: Table Of Contents

    Symbols Used ....................6 Overview........................7 Intrinsically Safe and General Purpose Models ......... 7 Technical Data......................8 Approved batteries for HM-PF-BT-EX-010041 ..........9 Markings and Certifications ................... 10 Intrinsically Safe Model (HM-PF-BT-EX-010041) Certifications....10 General Purpose Model (HM-PF-BT-GP-010040) Certifications....11 Front labels....................
  • Page 4 Viator Bluetooth® HART Interface Contents Installing ViatorCheck Software ................21...
  • Page 5: Introduction

    Certificates • Control drawings • Additional documents Manufacturer Pepperl+Fuchs Group Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount- ing lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, com- missioning, operation, maintenance, and dismounting of the product.
  • Page 6: Symbols Used

    Viator Bluetooth® HART Interface Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage.
  • Page 7: Overview

    20 hours powered by three internal, replaceable AAA alkaline bat- tery cells. Note For HM-PF-BT-EX-010041 only type-proofed batteries are allowed to be used. See the separate instruction manual for detailed information. The PC host uses an internal Bluetooth® interface or an external Bluetooth® adapter to com- municate with the Bluetooth®...
  • Page 8: Technical Data

    HM-PF-BT-EX-010041 & HM-PF-BT-GP-010040 Electrical specifications Battery type 3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03 The model HM-PF-BT-EX-010041 should be used only with approved batteries. For a complete list of approved batteries see chapter 3.1. Operating duration approx.
  • Page 9: Approved Batteries For Hm-Pf-Bt-Ex-010041

    Danger! Approved batteries for HM-PF-BT-EX-010041 The model HM-PF-BT-EX-010041 should be used only with approved batteries. For a complete list of approved batteries see chapter 3.1. Approved batteries for HM-PF-BT-EX-010041 The model HM-PF-BT-EX-010041 should be used only with approved batteries. See the follow- ing list of approved batteries.
  • Page 10: Markings And Certifications

    II 1G Ex ia IIC T4 Ga -20 °C ≤ T ≤ 50 °C Danger! Approved batteries for HM-PF-BT-EX-010041 The model HM-PF-BT-EX-010041 should be used only with approved batteries. See the follow- ing chapter for a complete list of approved batteries: see chapter 3.1.
  • Page 11: General Purpose Model (Hm-Pf-Bt-Gp-010040) Certifications

    Viator Bluetooth® HART Interface Markings and Certifications General Purpose Model (HM-PF-BT-GP-010040) Certifications Directive conformity Radio and telecommunication terminal equipment Directive 2014/53/EU EN 300328 V 2.2.2:2019-07 EN 301489-1 V 2.2.3:2019-11 EN 301489-17 V 3.2.4:2020-09 EN 62311:2008-01 EN 62479:2010-09 EN IEC 62368-1:2020-03 RoHS Directive 2011/65/EU (RoHS) EN IEC 63000:2018-12...
  • Page 12: Rear Label

    Viator Bluetooth® HART Interface Markings and Certifications Rear Label HM-PF-BT-EX-010041 Figure 4.1...
  • Page 13: Fcc Class

    Viator Bluetooth® HART Interface Markings and Certifications HM-PF-BT-GP-010040 Figure 4.2 Entity parameters are listed on the label. FCC Class This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environ- ment.
  • Page 14: Getting Started

    The Viator connects to your computer over the air using Bluetooth wireless technology. No additional Pepperl+Fuchs hardware is required for the PC. There are no Pepperl+Fuchs-spe- cific drivers or software required to use this product. All communications are handled through the Bluetooth serial port profile.
  • Page 15: Powering The Viator Bluetooth

    Viator Bluetooth® HART Interface Powering the Viator Bluetooth Powering the Viator Bluetooth Power Button and Battery Status The power button controls power to the Viator and is also used to determine the battery status. The Viator is turned on by depressing the power button for a half second. The status indicator lights for 1 second, turn off for a half second, and then blink to indicate the amount of charge left in the batteries: Number of blinks...
  • Page 16: Battery Replacement

    Danger! Explosion hazard. Do not open or replace battery when flammable or combustible atmosphere is present. Danger! Approved batteries for HM-PF-BT-EX-010041 Only the following batteries have been approved for use in explosion-hazardous areas: see chapter 3.1. Danger! Do not operate device with battery cover removed.
  • Page 17 Viator Bluetooth® HART Interface Powering the Viator Bluetooth Warning! Do not mix old and new batteries. Warning! Disconnect the device leads from measurement circuit before replacing the batteries.
  • Page 18: Establishing Communication

    Viator Bluetooth® HART Interface Establishing Communication Establishing Communication The Viator uses the standard Bluetooth® serial port profile (SPP), which is supported by most Bluetooth® hosts. Using SPP creates a virtual serial COM port, which allows the interface to be used with HART applications in a manner similar to traditional, built-in serial COM ports. The method to connect to Bluetooth®...
  • Page 19: Bluetooth® Radio

    Viator Bluetooth® HART Interface Establishing Communication Bluetooth® Radio This product contains a Class 2 Bluetooth® radio module operating in the 2.4 GHz (ISM) band utilizing a frequency hopping spread spectrum (FHSS) scheme. The radio module has a range of up to 20 m. The operating range can be reduced by interference from other nearby devices transmitting in the 2.4-GHz ISM band.
  • Page 20: Maintenance And Repair

    Warning! Do not submerge device in liquid when cleaning. Repair The Viator Bluetooth® interface can only be repaired by authorized Pepperl+Fuchs personnel. For information about obtaining repairservices, refer to the limited warranty provided in section 12 of this manual. Warning!
  • Page 21 Viator Bluetooth® HART Interface Installing ViatorCheck Software Installing ViatorCheck Software To install the ViatorCheck software on your PC, please refer to the ViatorCheck Software User Manual. To download the ViatorCheck Software User Manual and the ViatorCheck Software, visit www.pepperl-fuchs.com.
  • Page 22 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-B1Q2B...
