VisuNet FLX System
Mechanical Installation
Item No.
1
2
3
6.
Install the 2 female-male spacers to outer housing and tighten to a torque of 4 Nm.
7.
Install the 4 screws onto spacers leaving a gap more than the thickness of the back shield.

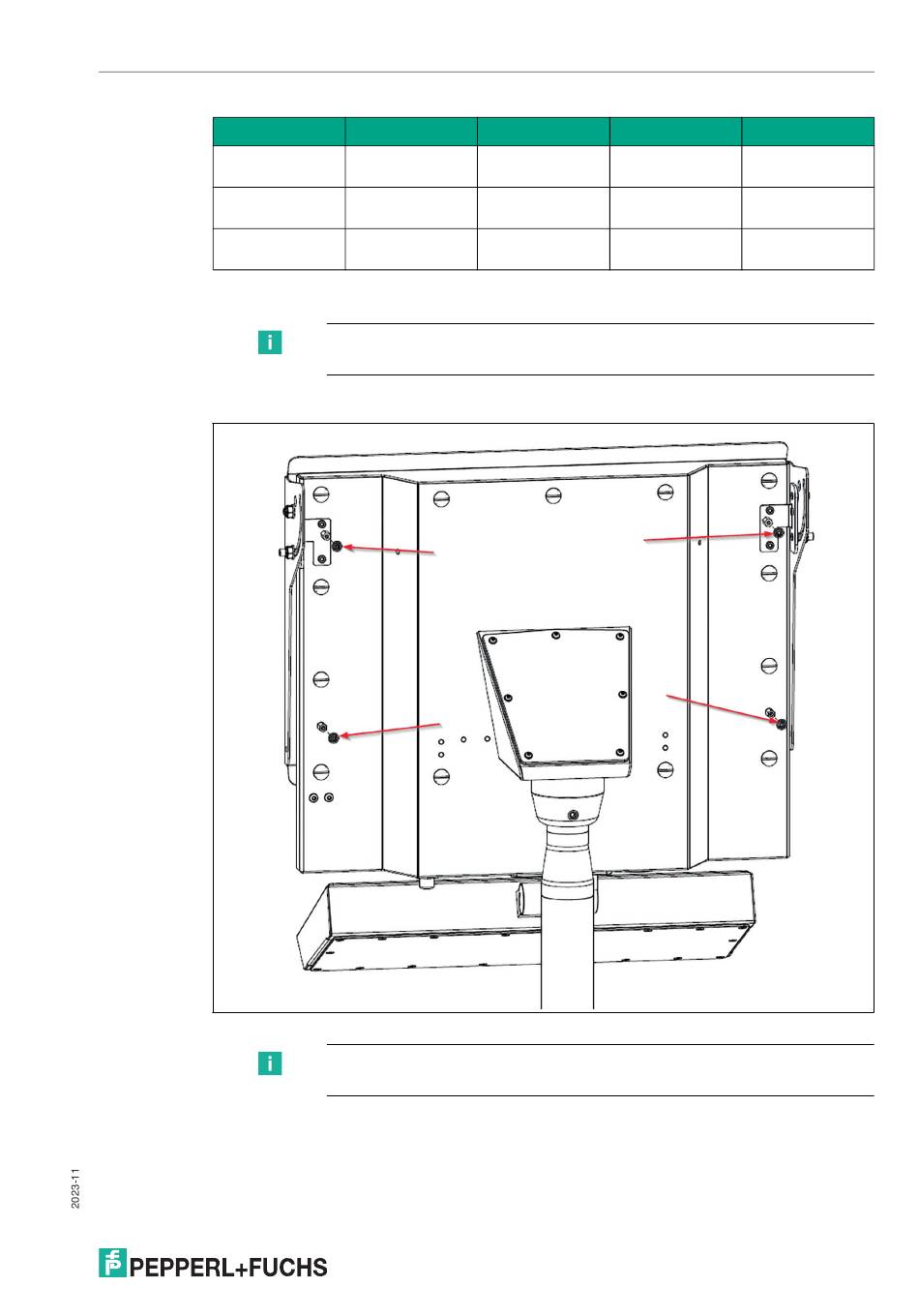

Figure 4.42
Part-Nr. QTY
112373 4
70171760 2
70171761 2
Note
These spacers are only used for the back shield option.
Note
If side shields will be installed leave out the bottom 2 screws.
Description Torque (Nm)
M5x12 Socket 4
Head Cap Screw
M5x15mm, F-F 3
Space
M5x15mm, M-F 4
Spacer
