VisuNet FLX System
Mechanical Installation

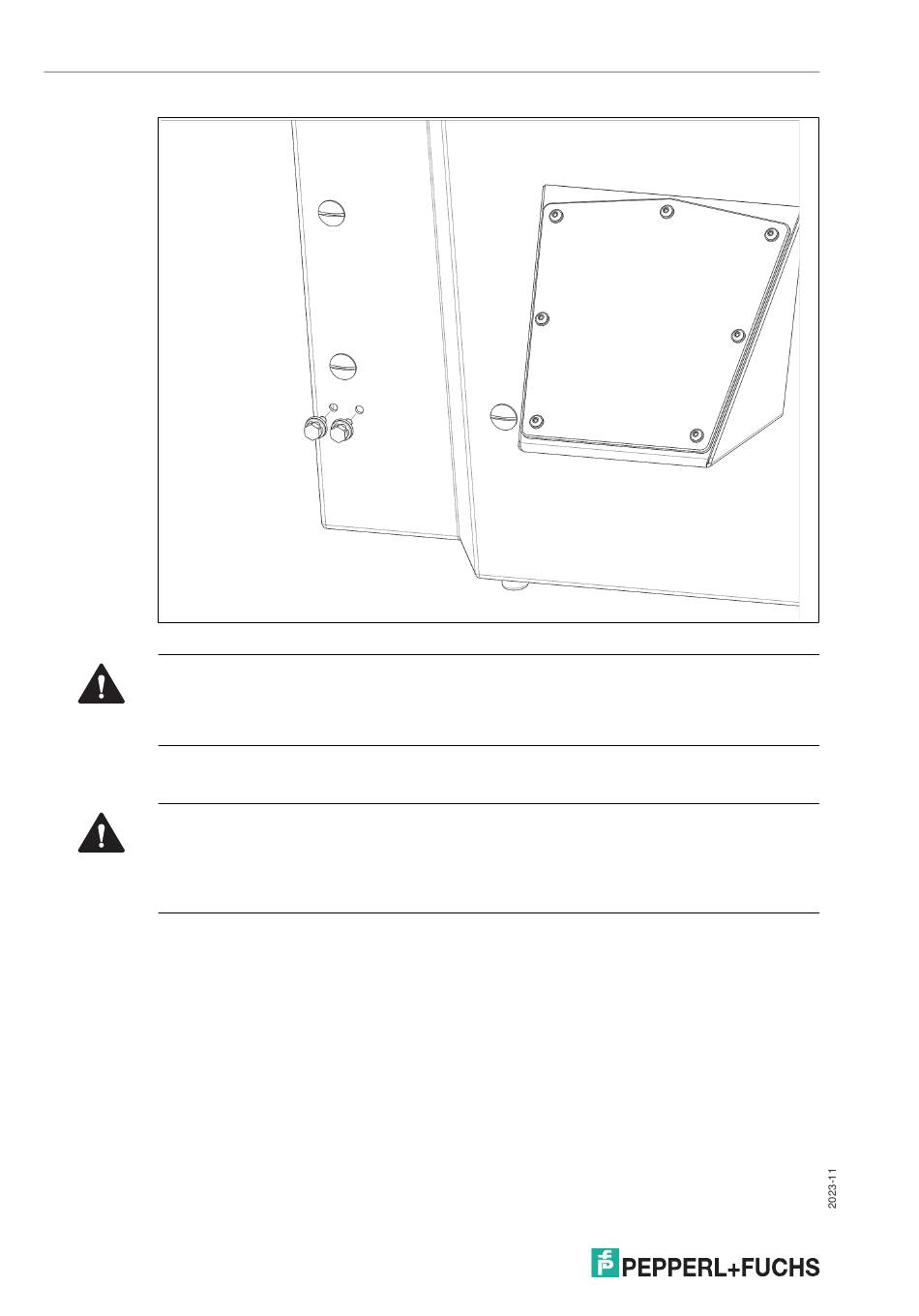

Figure 4.20
Caution!
Foreign bodies!
Keep the housing doors and openings permanently closed, so that no foreign bodies accumu-
late in the workstation.
4.9

Wall Mount Installation

Warning!
Proper installation on the wall!
It is the installer's responsibility to select a suitable location with sufficient strength to hold the
device. It is the installer's responsibility to select the proper screws based on the installation
conditions.
Required Components
• Pre-assembled VisuNet FLX PC-, RM-, DM- mounted into AG-3200-* housing (H1- or P1-
Housing Option)
• Wall bracket adapter (WALL-BRACKET-3200-304A-N0) for wall mounting installation
compatible with AG-3200-* housing (H1- or P1-Housing Option)
• Optional EXTA4-* keyboard/mouse
Required Installation Tools
• 8-mm socket wrench for attaching PE hardware and housing screws
• Safety gloves
