VisuNet FLX System
Installing Peripherals
3.

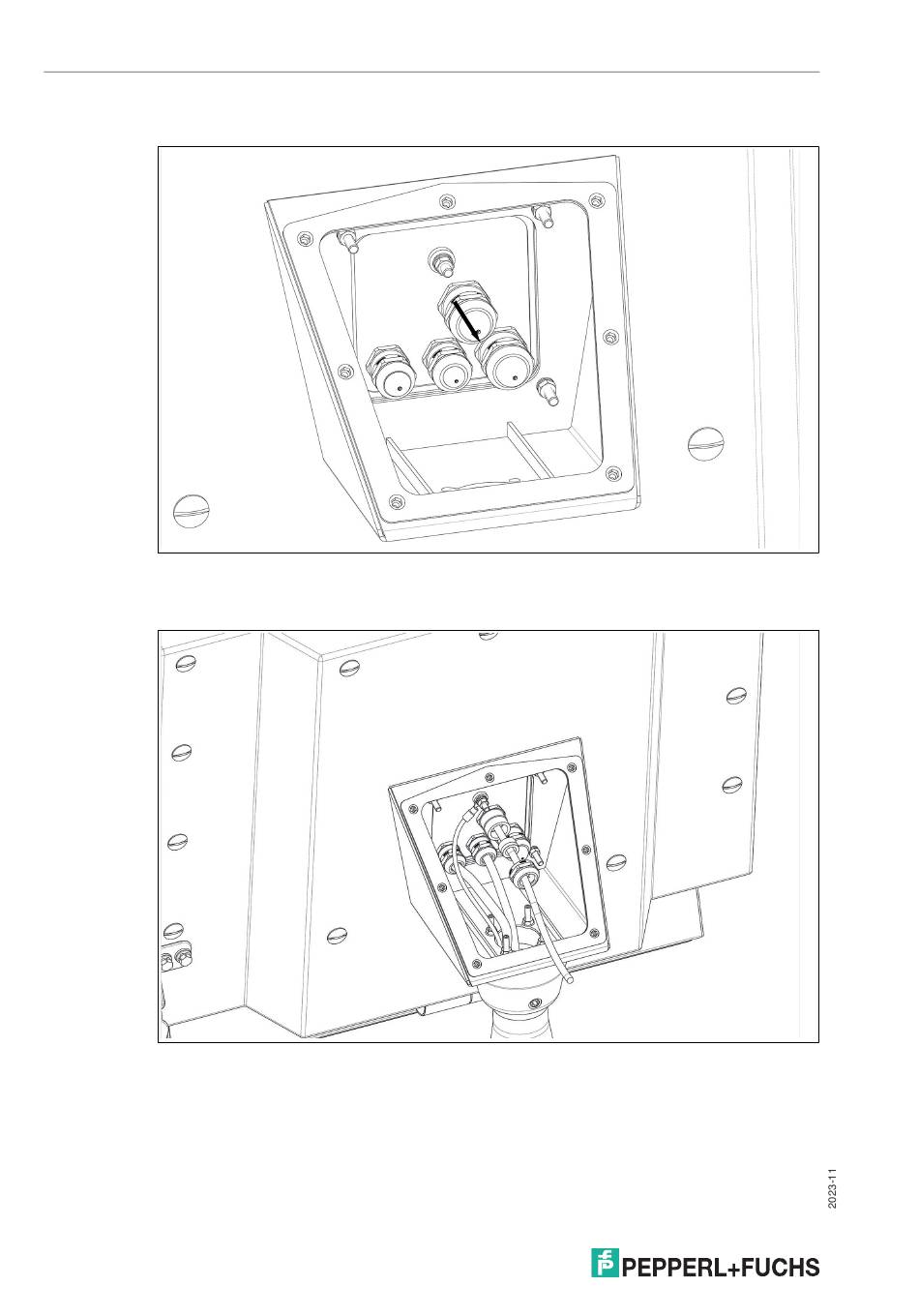

After installing the Ethernet and Power cables, remove cable gland N° 4 (M20 Ø7-12 mm)
Figure 7.12
4.
Fix the integrated cable gland of the supply cable in the section that has become free. Fix it with
a torque of 10 Nm.
Figure 7.13
94
