VisuNet FLX System
Mechanical Installation
Item
5
6
2.
Tighten the M8 lock nuts (item nr. 4) to keep the top shield in place but still allow rotation with
some force applied. Align brackets to allow installation of sunshield in closed position. Tighten
them so that the brackets provide resistance but still allow some force to be rotated.

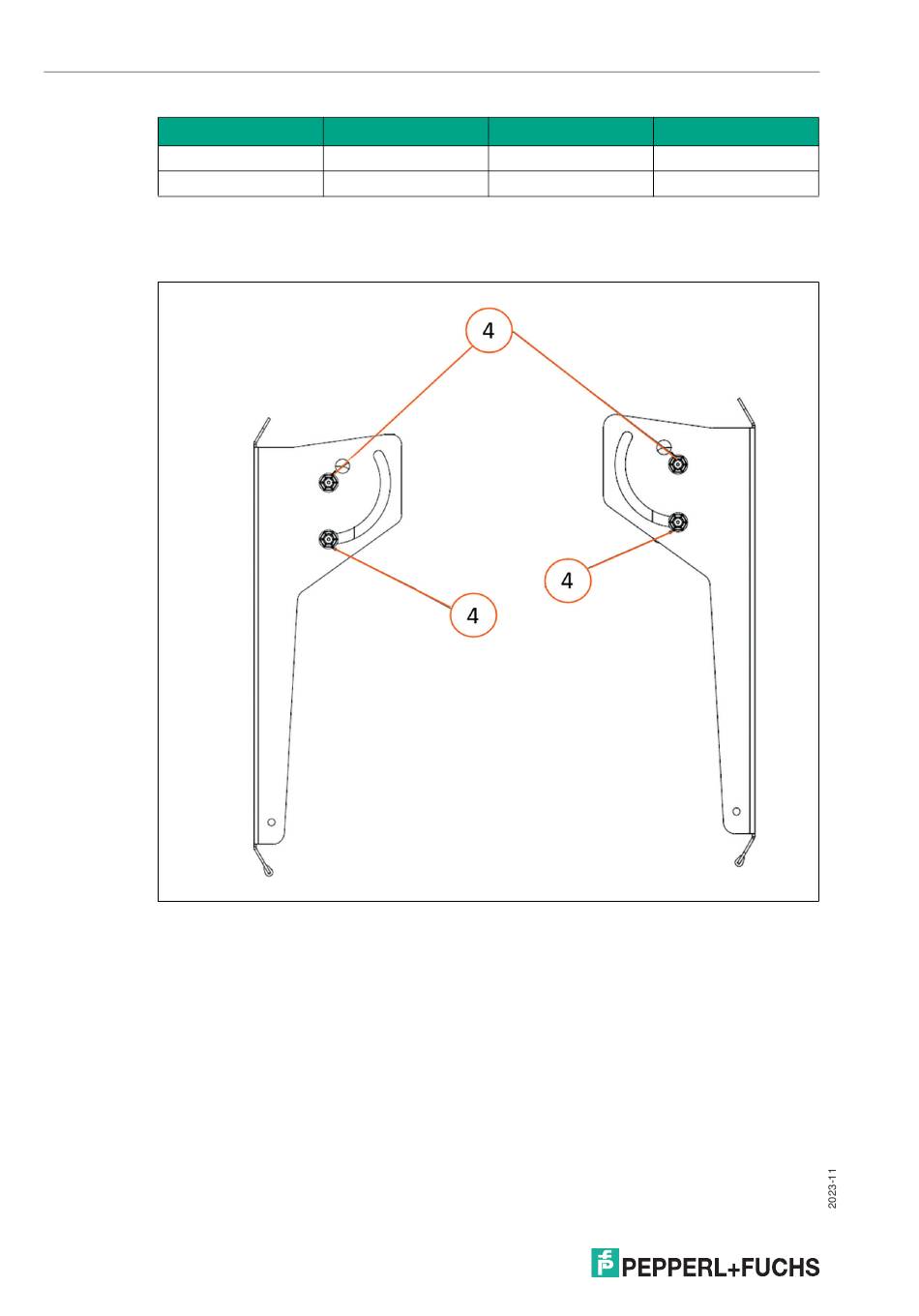

Figure 4.38
60
QTY Description
12 Washer, M8 flat
1 Edge protector
Part-No.
522104
523747
