VisuNet FLX System
Mechanical Installation
4.3

Preparing for Pedestal Installation

For floor mounting, the preferred installation option uses PEDESTAL-3200-* with either two or
three cable glands. The pedestal is shipped with a pre-installed rotating coupling with four bolts
and a PB wire, which is attached to the pedestal tube.
Warning!
Proper floor mounting!
It is the installer's responsibility to select a suitable location with sufficient strength to hold the
equipment. It is the installer's responsibility to select the proper screws based on the installa-
tion conditions.
Note
An additional mounting adapter is necessary and must be ordered separately!

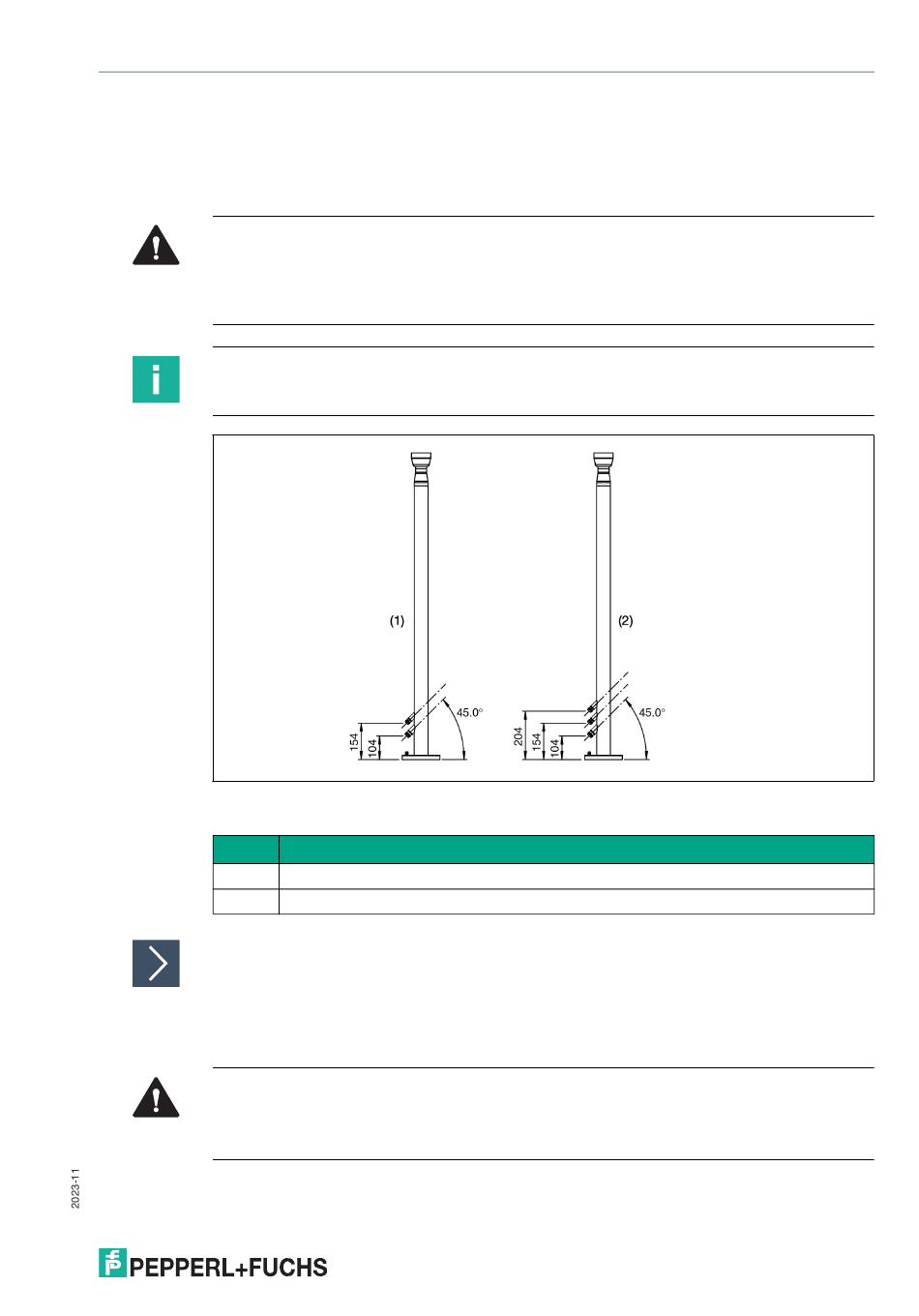

Figure 4.5
No.
1
2
Preparing the Pedestal for Connection to the Housing
1.
The pedestal must be firmly screwed to the floor.
2.
Bend the PE wire with a max. radius of 20 mm and place it within the pedestal tube.
Warning!
Damage to the PB protective (equipotential) bonding wire!
The PB wire may become damaged if it gets stuck between the pedestal and the adapter. Bend
the PB wire in such a way that it does not get stuck between the pedestal and the adapter.
Description
PEDESTAL-3200-131-2-304B-T-N0 with 2 cable glands
PEDESTAL-3200-131-3-304B-T-N0 with 3 cable glands
