VisuNet FLX System
Mechanical Installation
Installing the Adapter to the Pedestal
1.
Remove the cover of the adapter plate.
2.
Align the pedestal centrally – determine the center by turning it to the right and left stop. Then
align it at right angle to cable glands at the bottom of the pedestal.

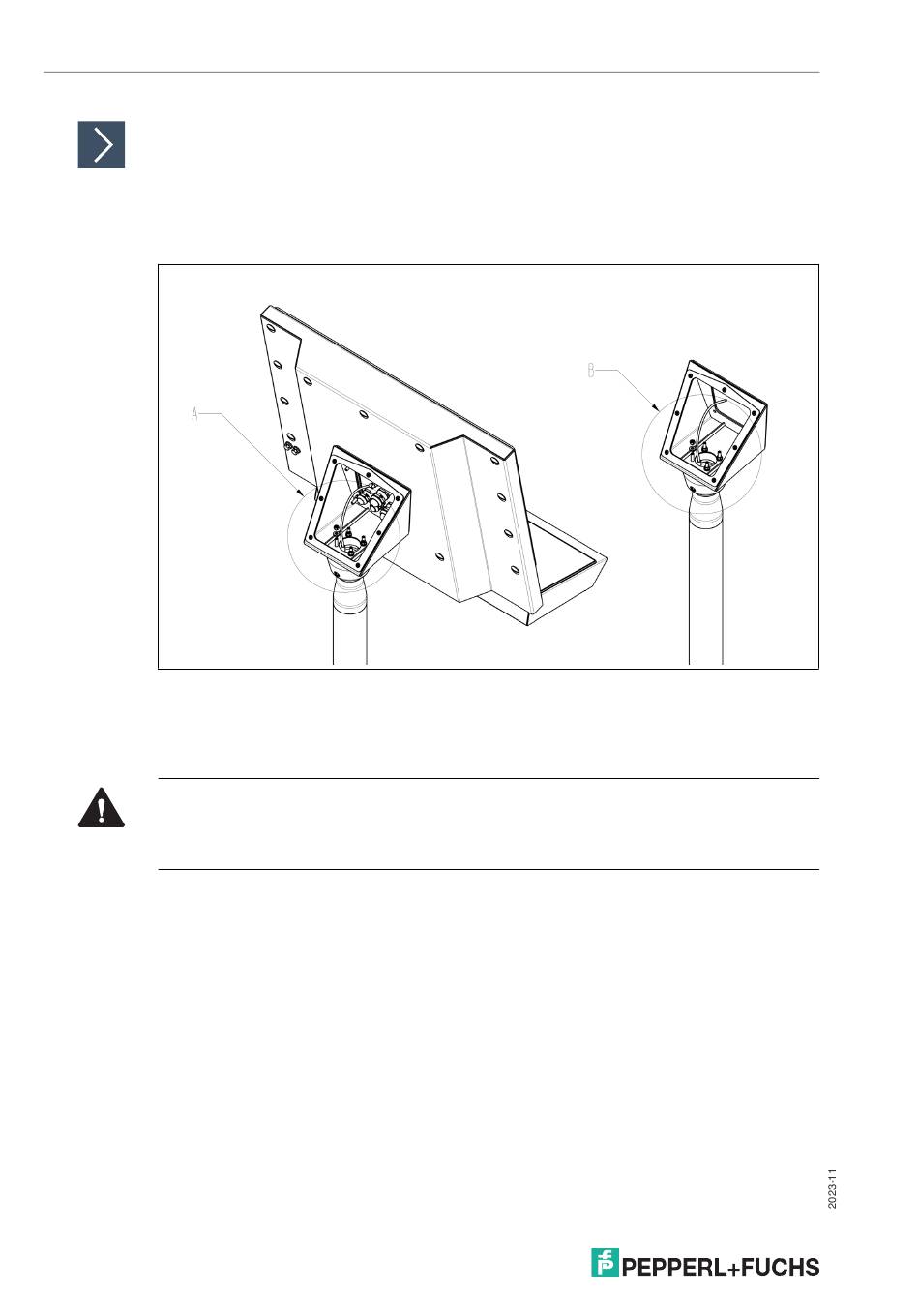

Figure 4.6
3.
Screw the adapter tight with 4 Nm.
4.4

Mounting the Housing onto the Pedestal

Warning!
Risk of injury!
Lifting the device on your own may lead to injury. Do not attempt to lift the device on your own.
Use a crane or get another person for help.
Required Components
Prepared pedestal that is properly secured to the floor
Installed Mounting Adapter to pedestal
VisuNet FLX pre-assembled in an AG-3200-* housing
Required Installation Tools
8-mm socket wrench for attaching PE hardware and housing screws
10-mm flat wrench for nuts on pedestal set screws
Open-ended wrench for cable glands (cable gland installation tool)
Safety gloves
32
The pedestal comes with a preinstalled equipotential bonding cable.
