5.5.3 VRRP

The Virtual Router Redundancy Protocol (VRRP) is a computer networking protocol that
automatically assigns available Internet Protocol (IP) routers to participating hosts. The VRRP router
with the highest number becomes the virtual master router. VRRP router numbers range from 1 to
255, where 255 is usually used for highest priority and 100 for backup priority. If the current virtual
master router receives an announcement from a group member (Router ID) with a higher priority,
the latter will pre-empt and become the virtual master router.

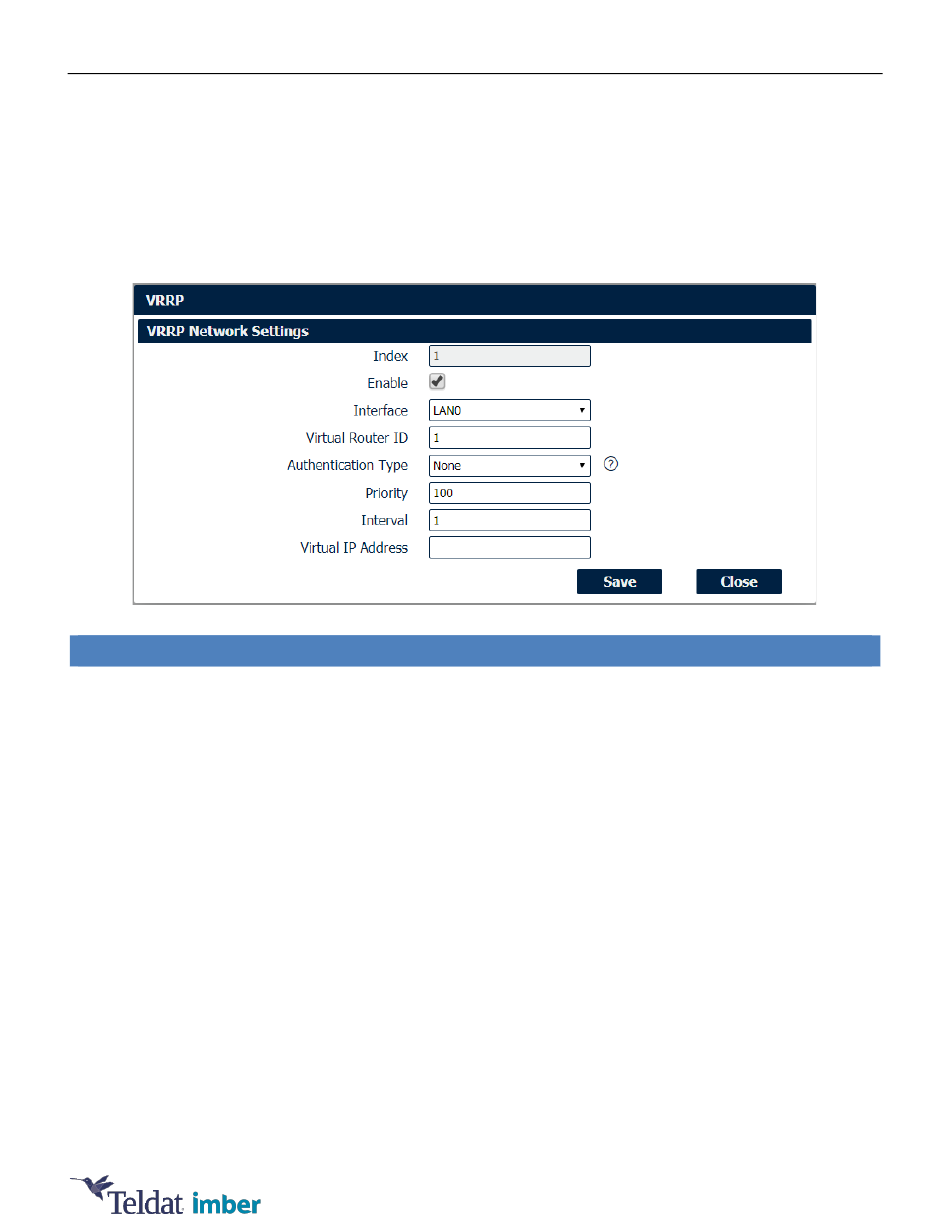

Network->VRRP
Enable
•
Checking this box enables VRRP.
Interface
•
Select the interface of the Virtual Router.
Virtual Router ID
•
User-defined Virtual Router ID. Range: 1-255.
Authentication Type
•
Select the authentication type for VRRP.
Priority
•
Enter the VRRP priority. Range is 1-254 (a higher number indicates a higher priority).
Interval
•
Heartbeat package transmission time interval between routers in the virtual IP group. Range: 1-255.
Virtual IP Address
•
Enter the virtual IP address of the virtual gateway.
