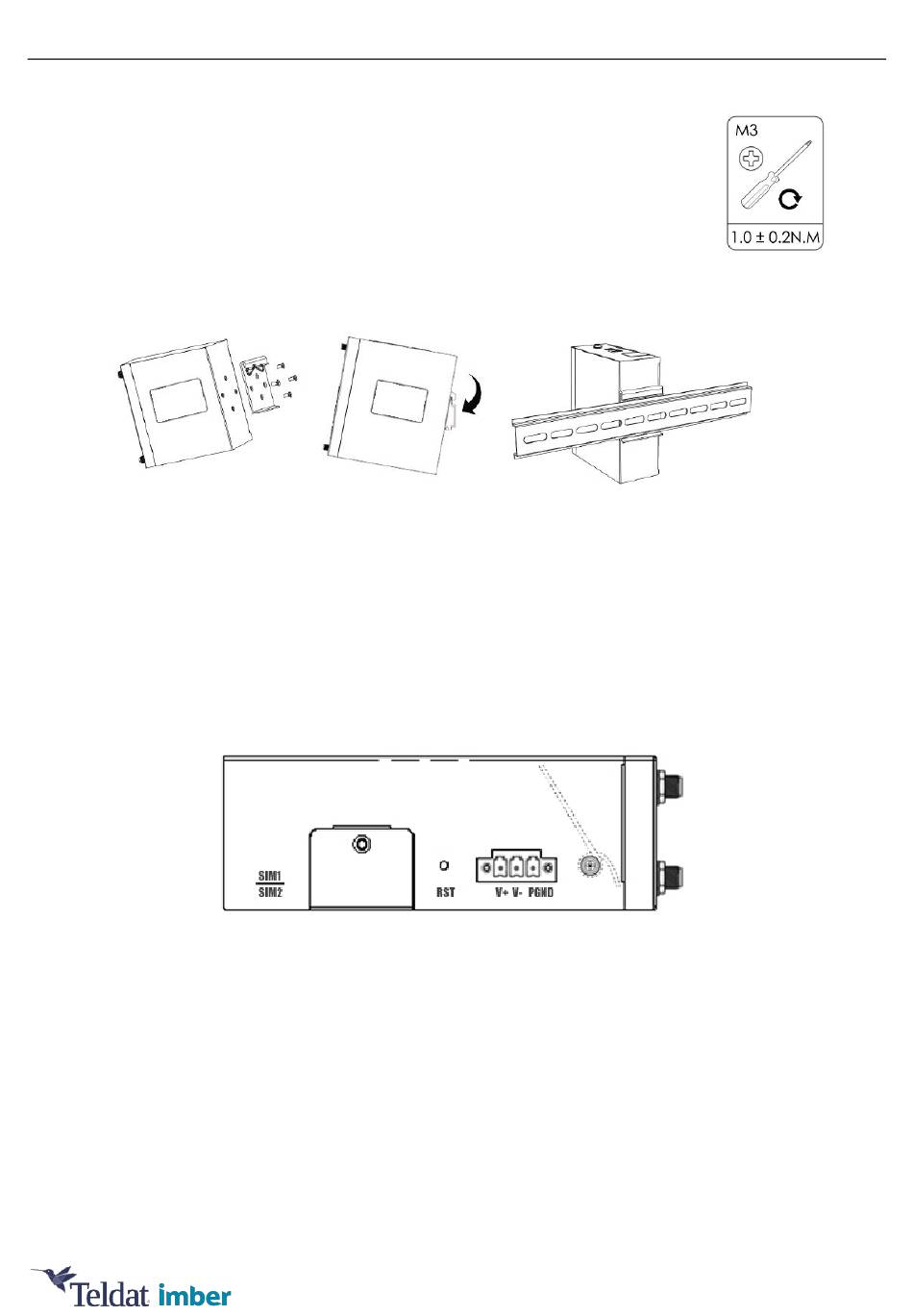

3.8 DIN Rail Mounting
1.
Attach the DIN-rail bracket to the router using four M3 x 6mm Phillips flat
head screws.
2.
Insert the upper lip of the DIN-rail bracket onto the DIN-rail track.
3.
Lightly press the router towards the DIN-rail track until the bracket snaps
into place.
3.9 Installing Protective Grounding
1.
Remove the grounding nut.
2.
Connect the grounding ring on the cabinet's grounding wire to the grounding stud and tighten
the grounding nut.
NOTE: Ensure that the router is properly grounded at all times.
User Manual
Page 18 / 92
