Alarm ON Content
•
Specify the alarm on content to be sent out via SMS messages.
Alarm OFF Content
•
Specify the alarm off content to be sent out via SMS messages

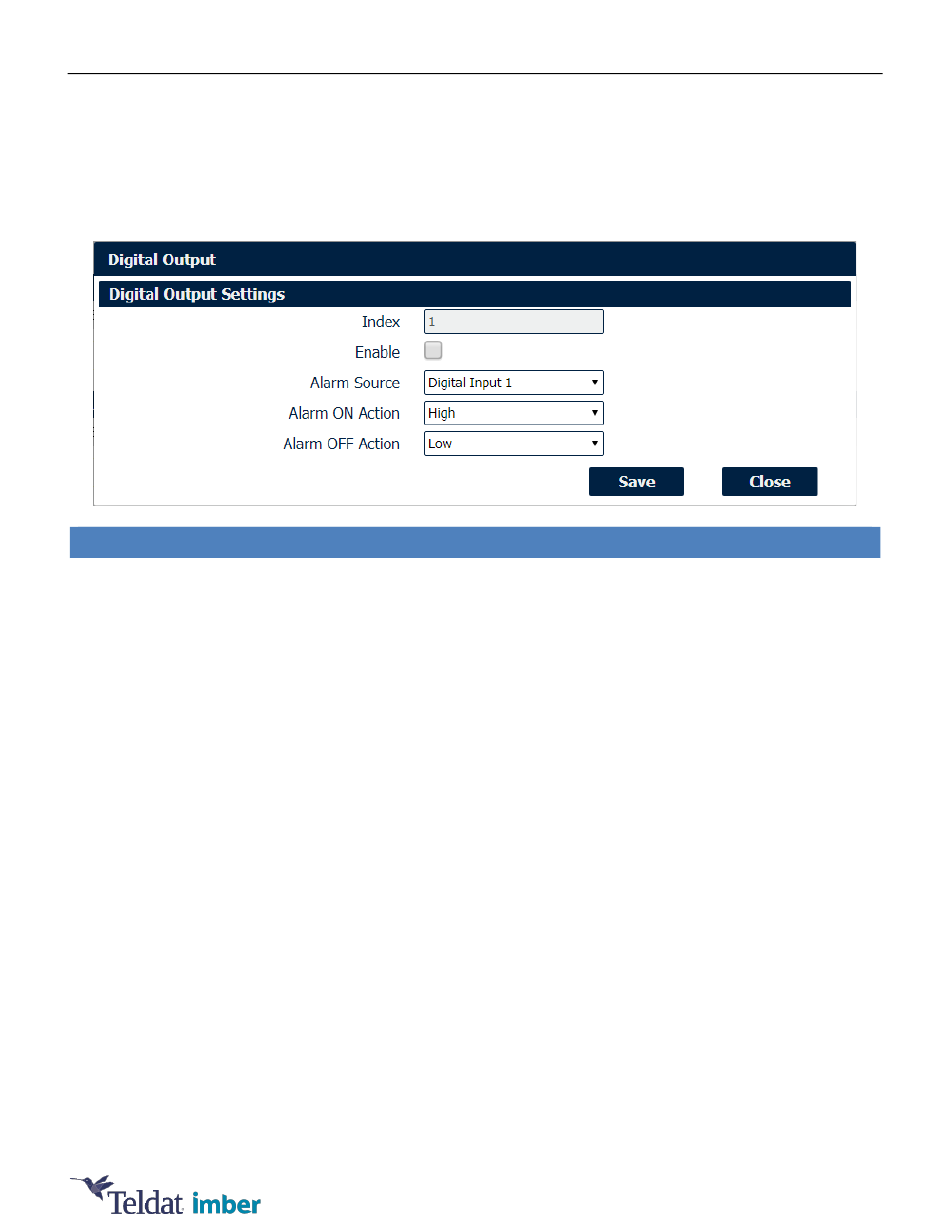

Digital IO->Digital Output
Enable
•
Check this box to enable the digital output function.
Alarm Source
•
Select from "Digital Input1", "Digital Input2" or "SMS". Digital output triggers the related action if an
alarm from Digital Input or SMS is detected.
Alarm ON Action
•
Select from "High", "Low" or "Pulse". High means high electrical level output. Low means low
electrical level output. Pulse will generate a square wave as specified in the pulse mode parameters
when triggered.
Alarm OFF Action
•
Initiates when the alarm disappears. Select from "High", "Low" or "Pulse". High means high electrical
level output and Low means low electrical level output. Pulse will generate a square wave as
specified in the pulse mode parameters when triggered.
Pulse Width
•
This parameter is only available when "Pulse" is set to "Alarm ON Action/Alarm OFF Action". The
selected digital output channel will generate a square wave as specified in the pulse mode
parameters.
.
