Teldat IMBER SMART User Manual page 54

IMBER SMART – Industrial Series
Local Address
•
Sets the LAN address of a device connected to one of the router's LAN interfaces. Inbound requests will
be forwarded to this IP address.
Local Port
•
Sets the LAN port number range used when forwarding to the destination IP address.

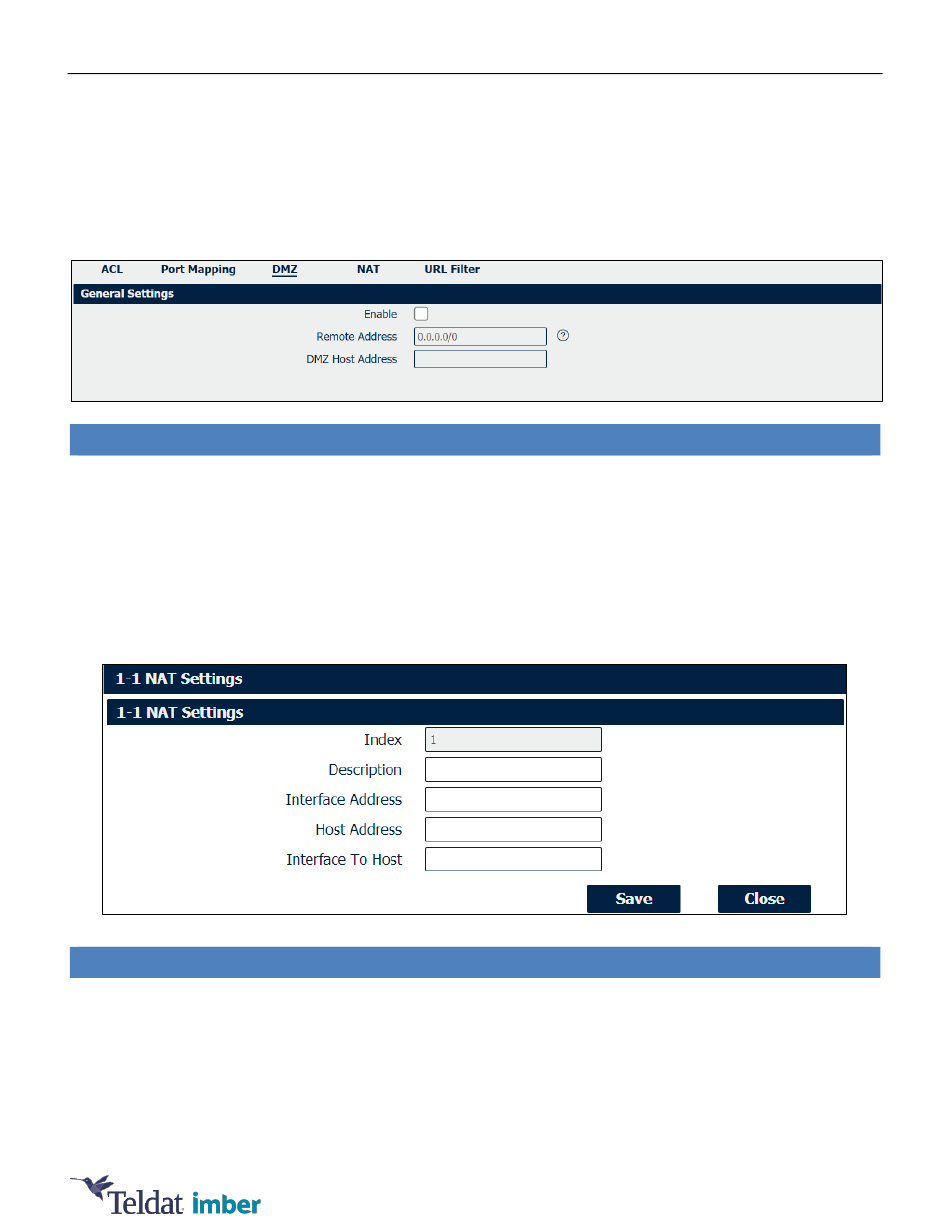

Firewall->DMZ
Enable
•
Check this box to enable the DMZ feature.
Remote Address
•
Optionally restricts DMZ access to the specified WAN IP address.
NOTE: If set to 0.0.0.0/0, DMZ is open to all incoming WAN IP addresses.
DMZ Host Address
•
The WAN IP address that has all ports exposed except those defined in the Port Forwarding
configuration.
Firewall->NAT
Description
•
Enter a description for the 1-to-1 NAT setting.
Interface Address
•
Specify the interface address that needs to be accessed before NAT.
Host Address
•
Specify the host address that needs to be accessed after NAT.
User Manual
Page 53 / 92
