Teldat S.A.

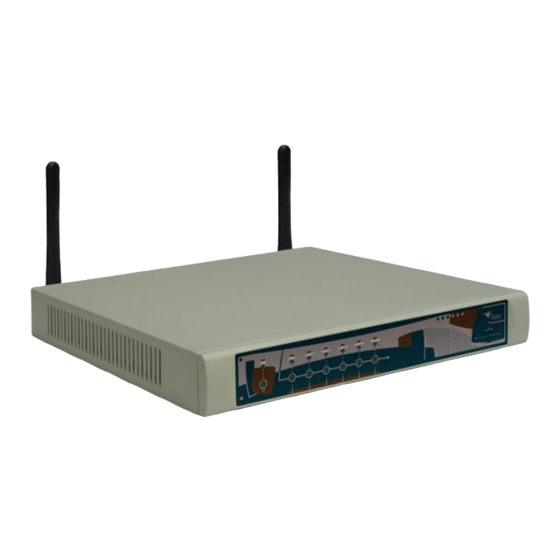

Teldat C1+L Router
Installation Manual
Copyright© Teldat-DM445-I Version 9.0 7/2015 Teldat S.A.
Teldat C1+L Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1+L and is the answer not in the manual?

Questions and answers

Related Manuals for Teldat C1+L

Summary of Contents for Teldat C1+L

  • Page 1 Manual Teldat S.A. Teldat C1+L Router Installation Manual Copyright© Teldat-DM445-I Version 9.0 7/2015 Teldat S.A. Teldat C1+L Router...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.

  • Page 3: Table Of Contents

    Compliance Information ....... . B.3.1 Compliance Information for Teldat C1+L Routers Relevant to the European Union and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive) ....
  • Page 4 Table of Contents Teldat S.A. Teldat C1+L Router...

  • Page 5: I Important Information

    Furthermore, it is crucial to avoid any kind of contact between the device components and necklaces, bracelets, rings, ties etc. Teldat C1+L Router...

  • Page 6: Installing The Router

    Ethernet LAN Switch and an integrated Wireless LAN module. The Teldat C1+L router is perfectly adaptable to a wide variety of IP scenarios: from providing simultaneous access to Internet for private LAN users and/or for the corporation through Virtual Private Networks (VPNs) to the adaptation of teleprocess networks and SNA support.

  • Page 7: Connections

    1 Installing the Router Teldat S.A. Teldat C1+L : External aspect Fig. 3: 1.2 Connections Caution Before connecting the router, please read the following instructions carefully. Workplace Conditions. Main Characteristics • Excessive cold and heat should be avoided, as should humidity and dust.

  • Page 8: Power Source Connection

    The Teldat C1+L router has the following available connectors: 1.2.2.1 4 port Ethernet Switch (connectors LAN1..4) The Teldat C1+L router has a 410/100BaseT switch incorporated with an automatic MDI/MDIX to connect to the loc- al area network (LAN). Please pay close attention to the labeling. This is important in order to avoid mixing up the switch with other types of ports.
  • Page 9 1.2.2.2 ADSL/ADSL2+ connection over PSTN (DSL connector) The Teldat C1+L router has a DSL connector to connect to an ADSL/ASDL2+ network over PSTN. This is a female RJ11 connector with 4 wires. The central pair is used for data transmission/reception.
  • Page 10 1.2.2.3 Wireless LAN connection (ANT connectors) The Teldat C1+L router has two RF antenna connectors to connect an external antenna to improve the quality of the signal received and transmitted by the Wireless LAN module. This module is internal and can be activated by pur- chasing the corresponding software license.

  • Page 11: Configuration Connection

    1.2.2.4 Connecting a 3G USB device (USB connector) The Teldat C1+L router has a USB HOST 2.0 Type A connector interface which allows 3G USB modems to be con- nected. The interface can be activated by purchasing the corresponding software license.
  • Page 12 1.2.3.2 Configuration using an IP terminal (connectors LAN1..4) The Teldat C1+L router includes a default configuration that activates if the device has not been previous configured or if the “Procedure to establish the default configuration” has been executed (this is explained further on in this manual).

  • Page 13: Meaning Of The Leds

    The RST pushbutton is located on the rear of the Teldat C1+L router. It is protected in such a way that it’s only ac- cessible from the outside of the device by using something with a sharp end to press it.

  • Page 14: Procedure To Ignore The Current Configuration And To Establish The Default Configuration

    Parallel flash device: name AM29LV320MT, id 0x2201, size 16384KB CPU type 0x2A010: 300MHz, Bus: 133MHz, Ref: 64MHz CPU running TP0 Total memory: 67108864 bytes (64MB) Boot Address 0xbe000000 *** default configuration required *** Board IP address : 172.24.251.14:ffff0000 Teldat C1+L Router...

  • Page 15: Procedure To Force Start Up In Boot Mode

    • Turn on the device with the ON/OFF switch. • Wait until the WLAN LED begins to flash (see Fig. 16 on page 11 ). Keep the RST pushbutton held down. The WLAN LED flashes Fig. 16: Teldat C1+L Router...
  • Page 16 Waiting for connection on socket 0. • The device is now in BOOT mode with the default IP configuration from BOOT (IP address 192.168.1.1 and mask 255.255.255.0). Accessing the BOOT menu from the console without using the RST button. Teldat C1+L Router...

  • Page 17: Procedure To Force Start Up In Bios Mode

    (x seconds) ***” , and before the indicated seconds run out. In this way the C.I.T. start up cancels and the device pauses in the BOOT prompt: “CFE>” . From this menu, you can access all the BOOT menu commands. Below you can see an example of a C1+L start up: CFE version 1.0.37-102.9-01 for BCM96358 (32bit,SP,BE)
  • Page 18 Entry at 0x80330000 Closing network. Closing DMA Channels. Starting program at 0x80330000 CIT software version: 10.08.01 Current software license: 22 48 S/N: 706/00122 === INITIAL MENU === a) Set Date and Time c) Change Code to Run Teldat C1+L Router...
  • Page 19 It’s also possible to access the BIOS menu without using the RST button if you have access to the device’s local console. Simply access the BOOT menu and from there execute the “rb” command. Below you can see an example of a C1+L in BIOS mode start up: CFE> rb Booting from latest image (0xbe160000) ...
  • Page 20 1 Installing the Router Teldat S.A. r) Reset v) Change version control for loading w) Reset and break into boot 0) Exit >> Teldat C1+L Router...

  • Page 21: Appendix A Technical Information

    There are various ways to update a Teldat router: please see the software upgrading manual for further information. The software required to update the Teldat routers is provided in a format known as distribution. This consists of a single file containing all the necessary files to update your device as well as detailed information on the content.

  • Page 22: Lan Connector

    RJ45 LAN Tx+(input) Tx-(input) Rx+(output) Rx-(output) A.3.2 DSL Connector RJ11 PIN RJ11 DSL Joined to 2 Line Line Joined to 3 A.3.3 ANT Connectors Internal RF in/out External A.3.4 USB Connector USB Type A DATA- DATA+ Shell Shield Teldat C1+L Router...

  • Page 23: Configuration Connector

    2 RF SMA Female USB Interface 3G USB MODEMS Please consult the Teldat webpage http://www.teldat.com to obtain the list of sup- ported 3G USB modems. SPEED The interface complies with the USB 2.0 standard (480 Mbps); the final speed de- pends on the 3G USB modem used.
  • Page 24 LENGTH x WIDTH x HEIGHT 220 x 220 x 30 mm WEIGHT 0,9 kg Environmental Specifications AMBIENT TEMPERATURE OPERATING NORMALLY: 0 °C to 45 °C STORED: -30 °C to 85 °C RELATIVE HUMDITY On: 5 % to 90 % Teldat C1+L Router...

  • Page 25: Appendix B Regulatory Compliance And Safety Information

    B.1 Recycling and the Environment Please do not, under any circumstances, throw away any Teldat C1+L with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e-waste. Al- ways respect the current laws regarding waste material.

  • Page 26: Translated Safety Warnings

    Regulatory compliance and safety information Teldat S.A. B.2 Translated Safety Warnings Connections B.3 Compliance Information Teldat C1+L Router...

  • Page 27: Compliance Information For Teldat C1+L Routers Relevant To The European Union And Other Countries Following The Eu Directive 1999/5/Ec (R&Tte Directive)

    Union and Other Countries Following the EU Directive 1999/5/EC (R&TTE Direct- ive) This section contains compliance information for Teldat C1+L. This information is relevant to the European Union and other countries that are following the EU Directive1999/5/EC. You will find the following information in this sec- tion: •...
  • Page 28 Regulatory compliance and safety information Teldat S.A. B.3.1.1 Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive) Teldat C1+L Router...
  • Page 29 Tel.: +34 918 076 565 - Fax: +34 918 076 566 - International Tel.: +34 918 076 630 B.3.1.2 Countries where the equipment is intended to be used This equipment may be operated in B.3.1.3 CE Marking For the Teldat C1+L, the following CE mark and class 2 identifier are added to the equipment. Teldat C1+L Router...
  • Page 30 Later in this paragraph you will find an overview of countries in which additional restrictions or requirements or both are applicable. The requirements for any country may evolve. Teldat recommends that you check with the local authorities for the latest status of their national regulations for 2.4 wireless LANs.
  • Page 31 B.3.1.6 Technical Documents on http://www.teldat.com For further information on how to find Technical documents on the Teldat website, please insert the following ad- dress: http://www.teldat.com in your web browser. Teldat C1+L Router...
