Terminal assignment

Transmitter
EtherNet/IP connection version
Order code for "Output", option N
Depending on the housing version, the transmitters can be ordered with terminals or
device plugs.
Connection methods available
Order code
"Housing"
Output
Options Device plug
A, B connectors
→  29
Options Device plug
A, B, C connectors
→  29
Order code for "Housing":
• Option A: compact, coated aluminum
• Option B: compact, hygienic, stainless
• Option C ultra-compact, hygienic, stainless

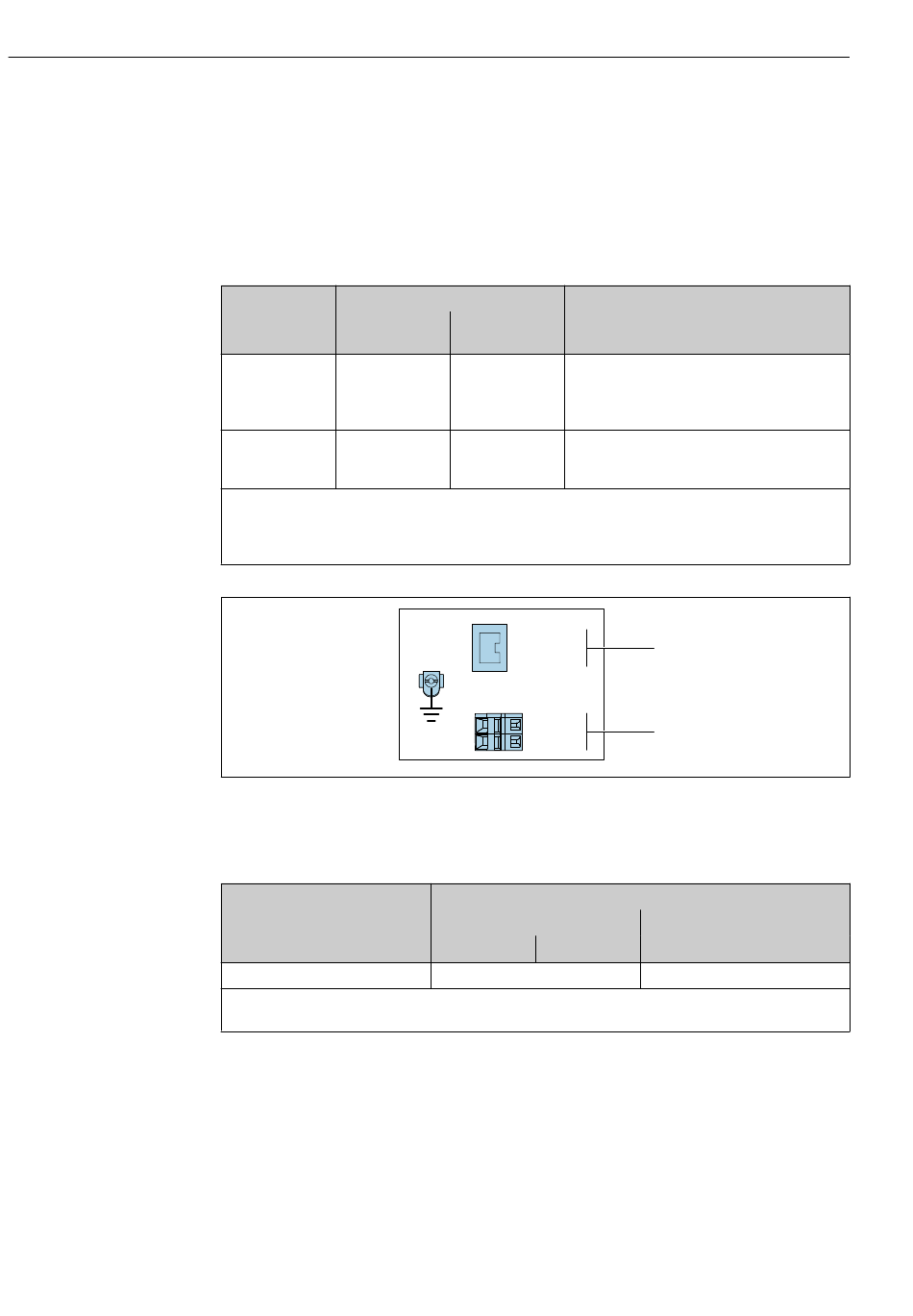

 7 EtherNet/IP terminal assignment
1 Power supply: DC 24 V
2 EtherNet/IP
Order code
"Output"
Option N
Order code for "Output":
Option N: EtherNet/IP
Proline Cubemass C 100 Ethernet/IP
Possible options for order code
Power
supply
Terminals • Option L: plug M12x1 + thread NPT ½"
• Option N: plug M12x1 + coupling M20
• Option P: plug M12x1 + thread G ½"
• Option U: plug M12x1 + thread M20
Device plug Option Q: 2 x plug M12x1
connectors
→  29
1 +
L
_
2
L
Terminal number
Power supply
2 (L-) 1 (L+)
DC 24 V
"Electrical connection"
2
1
Output
Device plug M12x1
EtherNet/IP
Endress+Hauser
A0017054
