Proline Cubemass C 100 Ethernet/IP
Remote operation
Service interface
Endress+Hauser
For some work performed on the measuring device (e.g. electrical connection), it is
advisable to disconnect the local display from the main electronics module:
1. Press in the side latches of the local display.
2. Remove the local display from the main electronics module. Pay attention to the
length of the connecting cable when doing so.
Once the work is completed, plug the local display back on.
Via EtherNet/IP network
This communication interface is available in device versions with EtherNet/IP.
Star topology
1
17

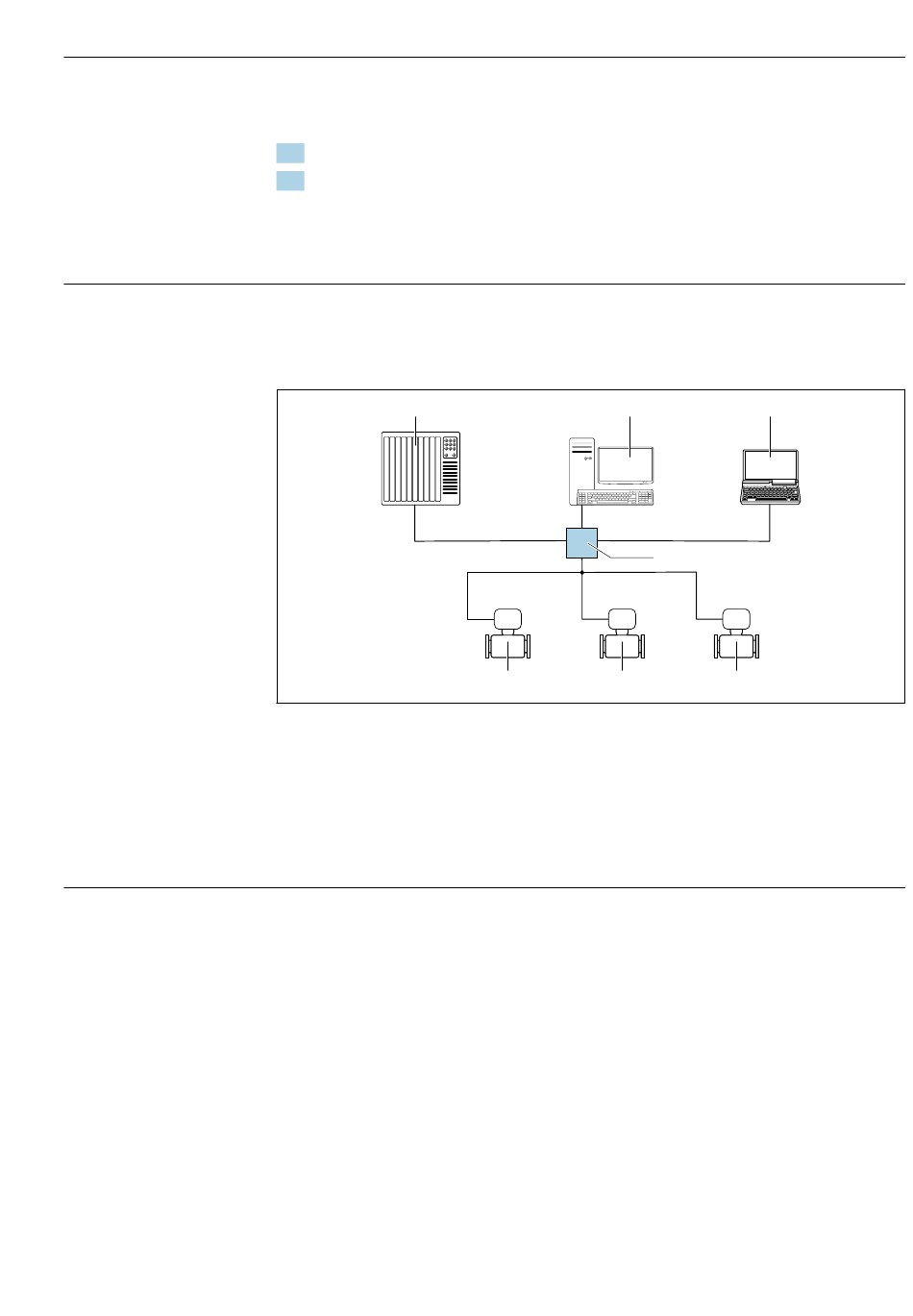

Options for remote operation via EtherNet/IP network: star topology
1
Automation system, e.g. "RSLogix" (Rockwell Automation)
2
Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell
Automation) or with Electronic Data Sheet (EDS)
3
Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or
computer with operating tool (e.g. FieldCare, DeviceCare) with COM DTM "CDI Communication TCP/IP"
4
Ethernet switch
5
Measuring device
Via service interface (CDI-RJ45)
2
4
5
5
Technical data
3
5
A0032078
117
