Electrical connection
32
7.5

Hardware settings

7.5.1

Setting the device address

EtherNet/IP
The IP address of the measuring device can be configured for the network via DIP switches.
Addressing data
IP address and configuration options
1st octet
2nd octet
192.
Can only be configured via software addressing
IP address range
1 to 254 (4th octet)
IP address broadcast
255
Addressing mode ex
Software addressing; all DIP switches for hardware addressing are set to OFF.
works
IP address ex works
DHCP server active
For device addressing via software

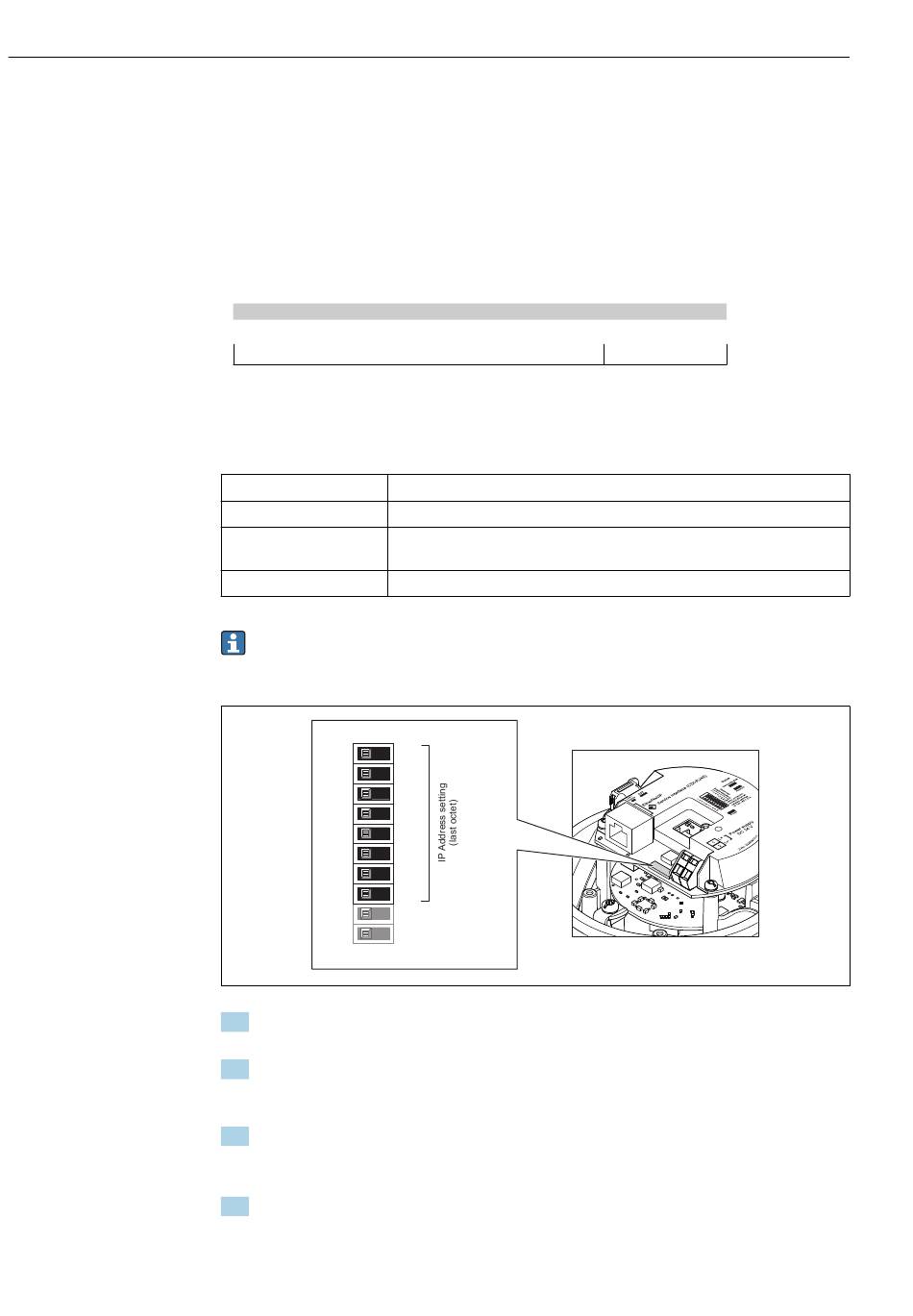

Setting the address
OFF ON
1
2
3
4
5
6
7
8
9
10
1. Depending on the housing version, loosen the securing clamp or fixing screw of the
housing cover.
2. Depending on the housing version, unscrew or open the housing cover and
disconnect the local display from the main electronics module where necessary
→  116.
3. Set the desired IP address using the corresponding DIP switches on the I/O
electronics module.
 Hardware addressing with the configured IP address is enabled after 10 s.
4. Reverse the removal procedure to reassemble the transmitter.
3rd octet
168.
1.
1
2
4
8
16
32
64
128
- Write protection
- Default Ethernet
network settings
IP 192.168.1.212
Proline Cubemass C 100 Ethernet/IP
4th octet
XXX
Can be configured via
software addressing
and hardware
addressing
Endress+Hauser
A0017913
