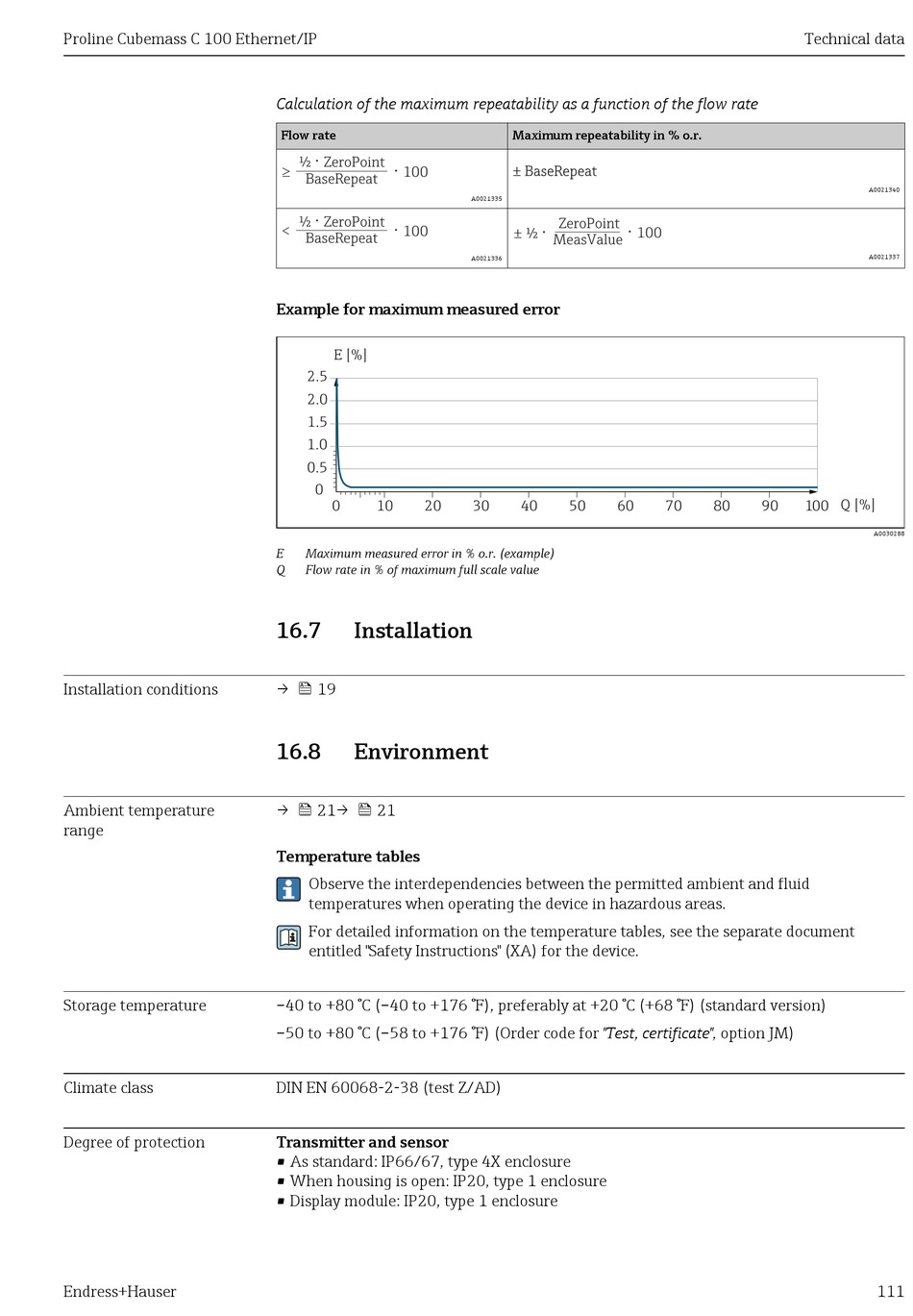

Proline Cubemass C 100 Ethernet/IP
Installation conditions
Ambient temperature
range
Storage temperature
Climate class
Degree of protection
Endress+Hauser
Calculation of the maximum repeatability as a function of the flow rate
Flow rate
⋅
½ ZeroPoint
⋅
100
³
BaseRepeat
⋅
½ ZeroPoint
⋅
< 100
BaseRepeat
Example for maximum measured error
E [%]
2.5
2.0
1.5
1.0
0.5
0
0 10 20
E Maximum measured error in % o.r. (example)
Q Flow rate in % of maximum full scale value
16.7

Installation

→  19
16.8

Environment

→  21→  21
Temperature tables
Observe the interdependencies between the permitted ambient and fluid
temperatures when operating the device in hazardous areas.
For detailed information on the temperature tables, see the separate document
entitled "Safety Instructions" (XA) for the device.
–40 to +80 °C (–40 to +176 °F), preferably at +20 °C (+68 °F) (standard version)
–50 to +80 °C (–58 to +176 °F) (Order code for "Test, certificate", option JM)
DIN EN 60068-2-38 (test Z/AD)
Transmitter and sensor
• As standard: IP66/67, type 4X enclosure
• When housing is open: IP20, type 1 enclosure
• Display module: IP20, type 1 enclosure
Maximum repeatability in % o.r.
A0021335
ZeroPoint
⋅
⋅
100
± ½
MeasValue
A0021336
30 40 50 60
Technical data
100 Q [%]
70 80 90
A0021340
A0021337
A0030288
