12.4

Diagnostic information in the Web browser

12.4.1

Diagnostic options

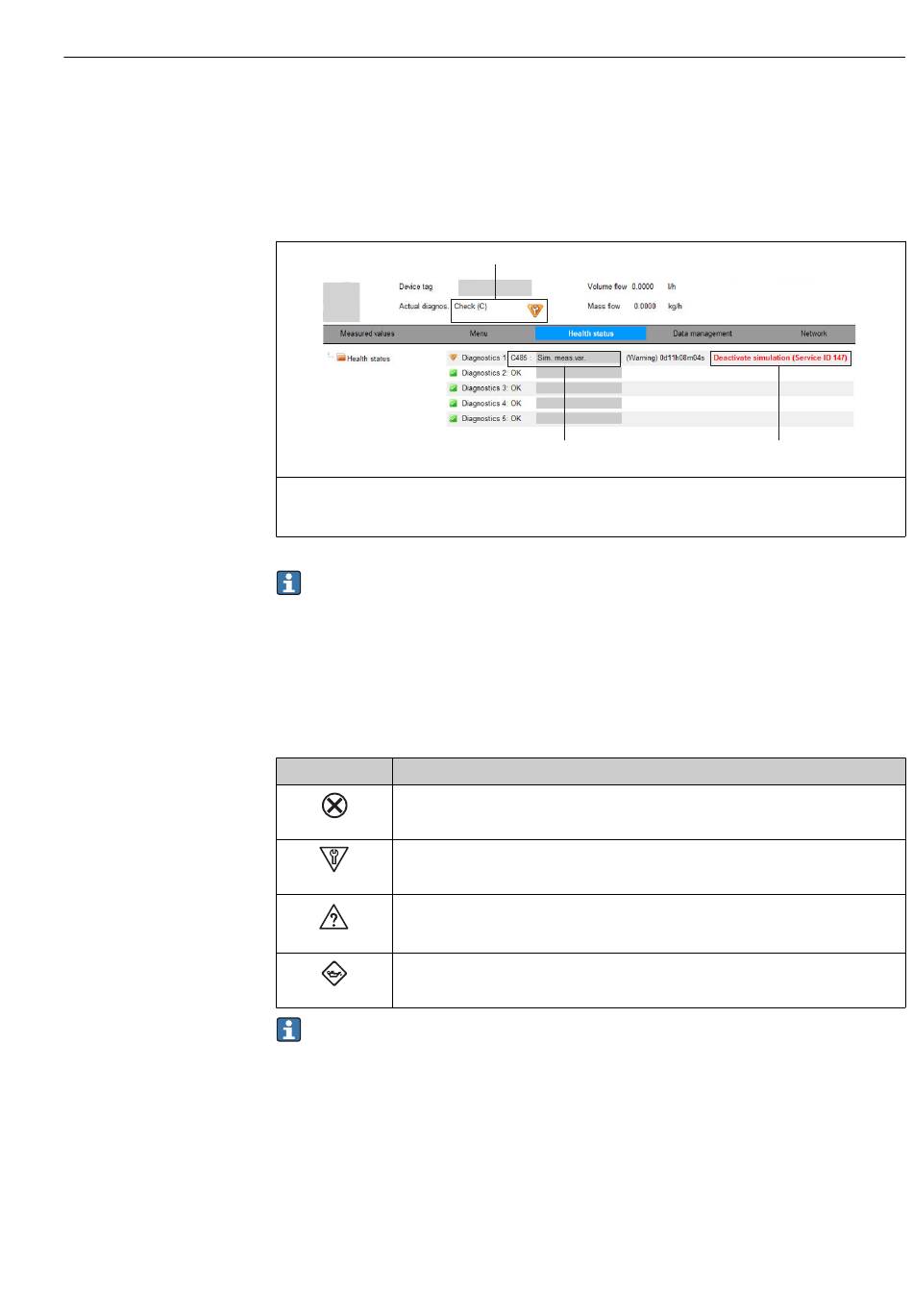

Any faults detected by the measuring device are displayed in the Web browser on the
home page once the user has logged on.
1 Status area with status signal
2 Diagnostic information
3 Remedial measures with Service ID
Furthermore, diagnostic events that have occurred can be viewed in the Diagnostics
menu:
• Via parameters →  89
• Via submenus →  90
Status signals
The status signals provide information on the state and reliability of the device by
categorizing the cause of the diagnostic information (diagnostic event).
Symbol Meaning
Failure
A device error has occurred. The measured value is no longer valid.
A0017271
Function check
The device is in service mode (e.g. during a simulation).
A0017278
Out of specification
The device is operated:
Outside its technical specification limits (e.g. outside the process temperature range)
A0017277
Maintenance required
Maintenance is required. The measured value is still valid.
A0017276
The status signals are categorized in accordance with VDI/VDE 2650 and NAMUR
Recommendation NE 107.
1
2
Diagnostics and troubleshooting
3
A0017759-EN
83
