Operation options
40
Network connections
In the event of connection problems:
Measuring device: Via CDI-RJ45 service interface
Device
Measuring device
Web server
IP address
8.4.3

Establishing a connection

Via service interface (CDI-RJ45)
Preparing the measuring device
Configuring the Internet protocol of the computer
The IP address can be assigned to the measuring device in a variety of ways:
• Dynamic Host Configuration Protocol (DHCP), factory setting:
The IP address is automatically assigned to the measuring device by the automation
system (DHCP server).
• Hardware addressing:
The IP address is set via DIP switches .
• Software addressing:
The IP address is entered via the IP address parameter (→  60) .

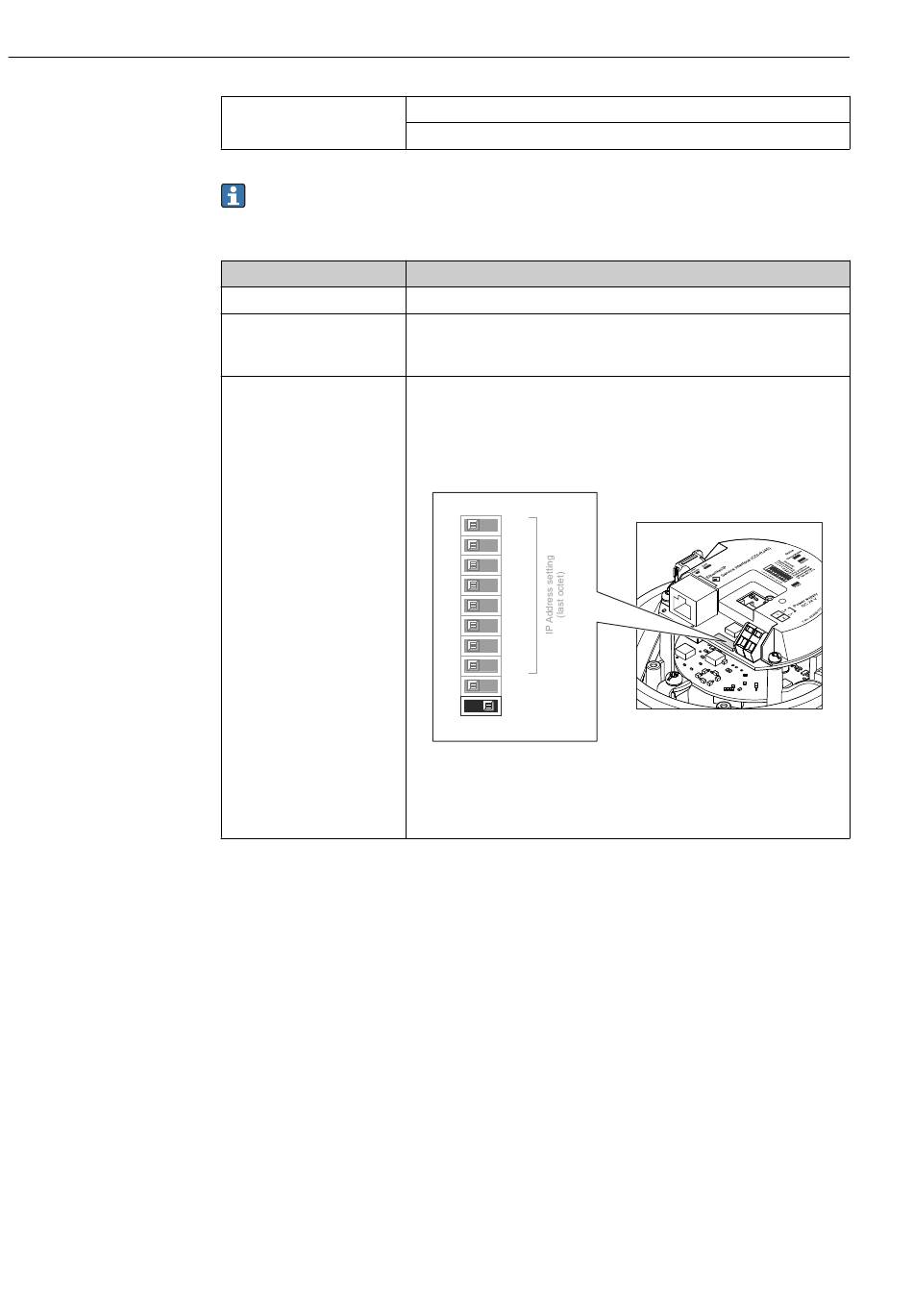

• DIP switch for "Default IP address":
To establish the network connection via the service interface (CDI-RJ45): the fixed IP
address 192.168.1.212 is used .
Only the active network connections to the measuring device should be used.
Switch off all other network connections.
CDI-RJ45 service interface
The measuring device has an RJ45 interface.
Web server must be enabled; factory setting: ON

For information on enabling the Web server →  44
If the IP address of the device is not known, communication with the Web
server can be established via the default IP address 192.168.1.212.
The DHCP function is enabled in the device at the factory, i.e. the device
expects an IP address to be assigned by the network. This function can be
disabled and the device can be set to the default IP address 192.168.1.212:
set DIP switch No. 10 from OFF → ON.
OFF ON
1 1
2 2
3 4
4 8
5 16
6 32
7 64
8 128
9 - Write protection
10 - Default Ethernet
network settings
IP 192.168.1.212

• Once the DIP switch has been activated, the device must be restarted
before the device uses the default IP address.
• If the default IP address is used (DIP switch No. 10 = ON), there is no
connection to the EtherNet/IP network.
Proline Cubemass C 100 Ethernet/IP
