Diagnostics and troubleshooting
80
12.3

Diagnostic information on local display

12.3.1

Diagnostic message

Faults detected by the self-monitoring system of the measuring device are displayed as a
diagnostic message in alternation with the operational display.

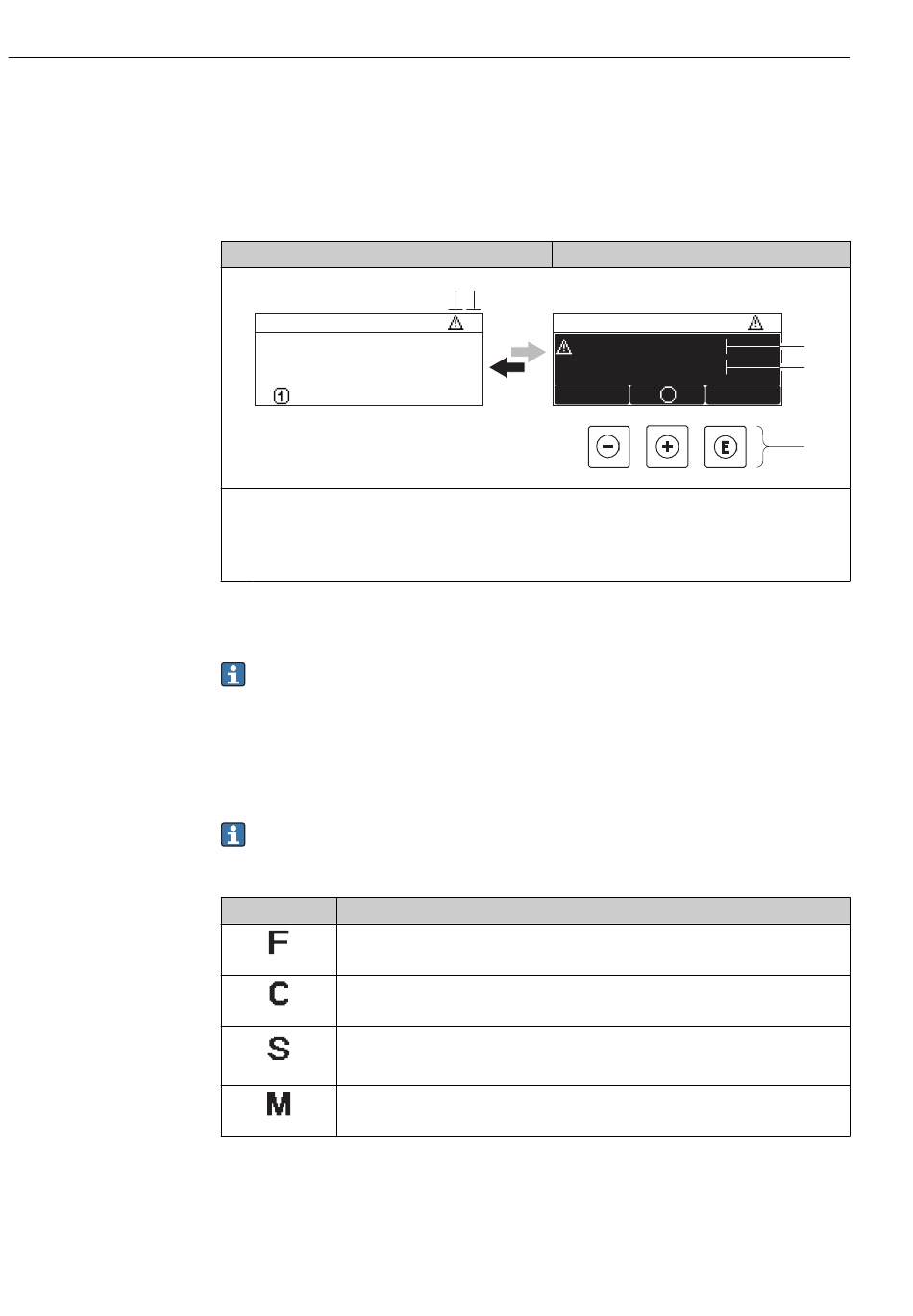

Operational display in alarm condition
X X X X X X X X X
20.50
X
1 Status signal
2 Diagnostic behavior
3 Diagnostic behavior with diagnostic code
4 Short text
5 Operating elements
If two or more diagnostic events are pending simultaneously, only the message of the
diagnostic event with the highest priority is shown.
Other diagnostic events that have occurred can be called up in the Diagnostics menu:
• Via parameters →  89
• Via submenus →  90
Status signals
The status signals provide information on the state and reliability of the device by
categorizing the cause of the diagnostic information (diagnostic event).
The status signals are categorized according to VDI/VDE 2650 and NAMUR
Recommendation NE 107: F = Failure, C = Function Check, S = Out of Specification, M
= Maintenance Required
Symbol Meaning
Failure
A device error has occurred. The measured value is no longer valid.
A0013956
Function check
The device is in service mode (e.g. during a simulation).
A0013959
Out of specification
The device is operated:
Outside its technical specification limits (e.g. outside the process temperature range)
A0013958
Maintenance required
Maintenance is required. The measured value remains valid.
A0013957
Proline Cubemass C 100 Ethernet/IP
1
2
S
X X X X X X X X
S801
Supply voltage
XX
Diagnostic message
X S
3
4
i Menu
5
A0013939-EN
