7.6

Ensuring the degree of protection

The measuring device fulfills all the requirements for degree of protection IP66/67, Type
4X enclosure.
To guarantee degree of protection IP66/67, Type 4X enclosure, carry out the following
steps after the electrical connection:
1. Check that the housing seals are clean and fitted correctly.
2. Dry, clean or replace the seals if necessary.
3. Tighten all housing screws and screw covers.
4. Firmly tighten the cable glands.

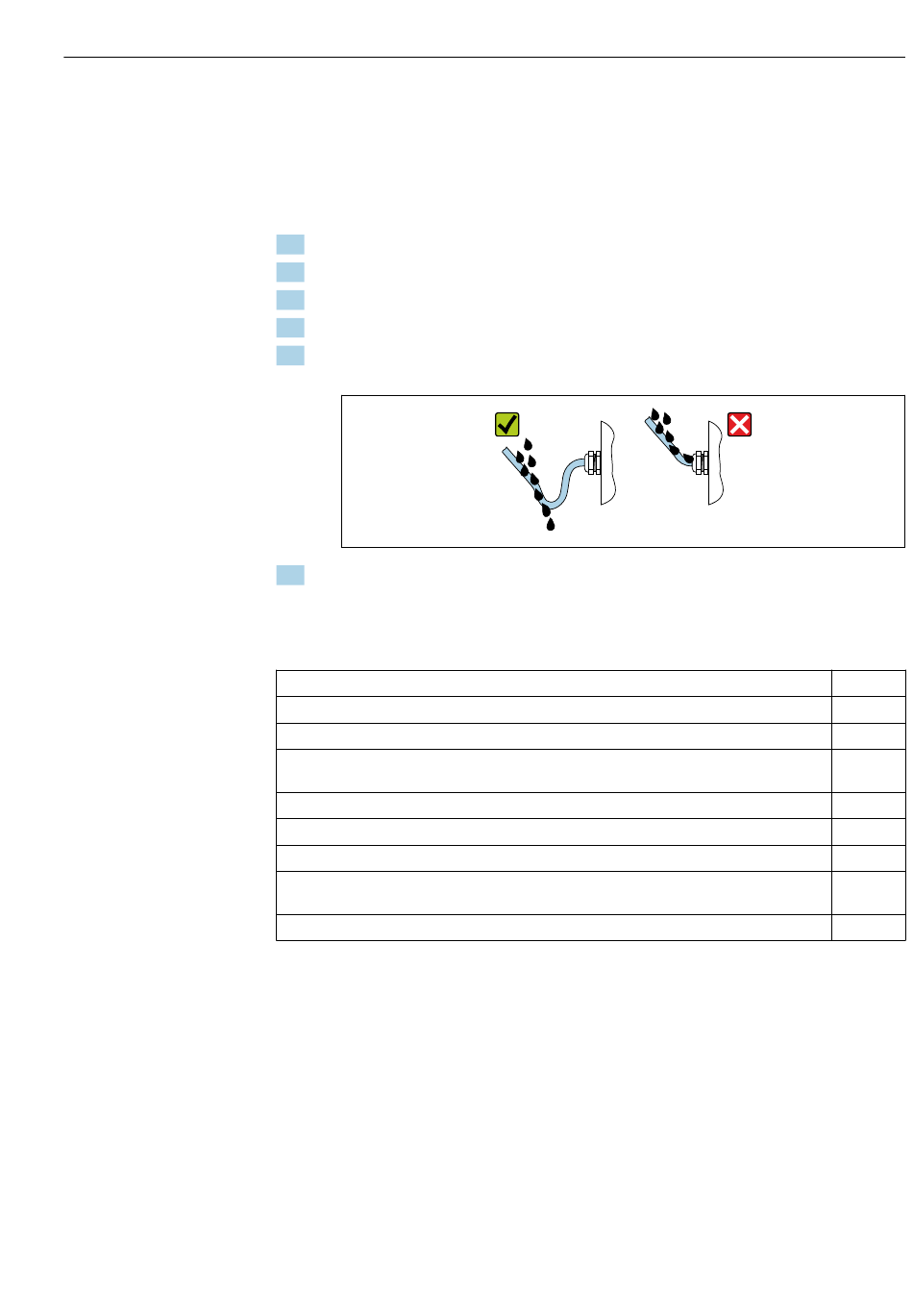

5. To ensure that moisture does not enter the cable entry:
Route the cable so that it loops down before the cable entry ("water trap").

6. Insert dummy plugs into unused cable entries.
7.7

Post-connection check

Are cables or the device undamaged (visual inspection)?
Do the cables used meet the requirements →  27?
Do the cables have adequate strain relief?
Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"
→  33?
Depending on the device version: are all the device plugs firmly tightened →  30?
Does the supply voltage match the specifications on the transmitter nameplate →  106?
Is the terminal assignment →  28 or pin assignment of the connector →  29 correct?
If supply voltage is present, is the power LED on the electronics module of the transmitter lit green
→  12?
Depending on the device version, is the securing clamp or fixing screw firmly tightened?
