Endress+Hauser Proline Cubemass C 100 Operating Instructions Manual page 23

Proline Cubemass C 100 Ethernet/IP
Endress+Hauser

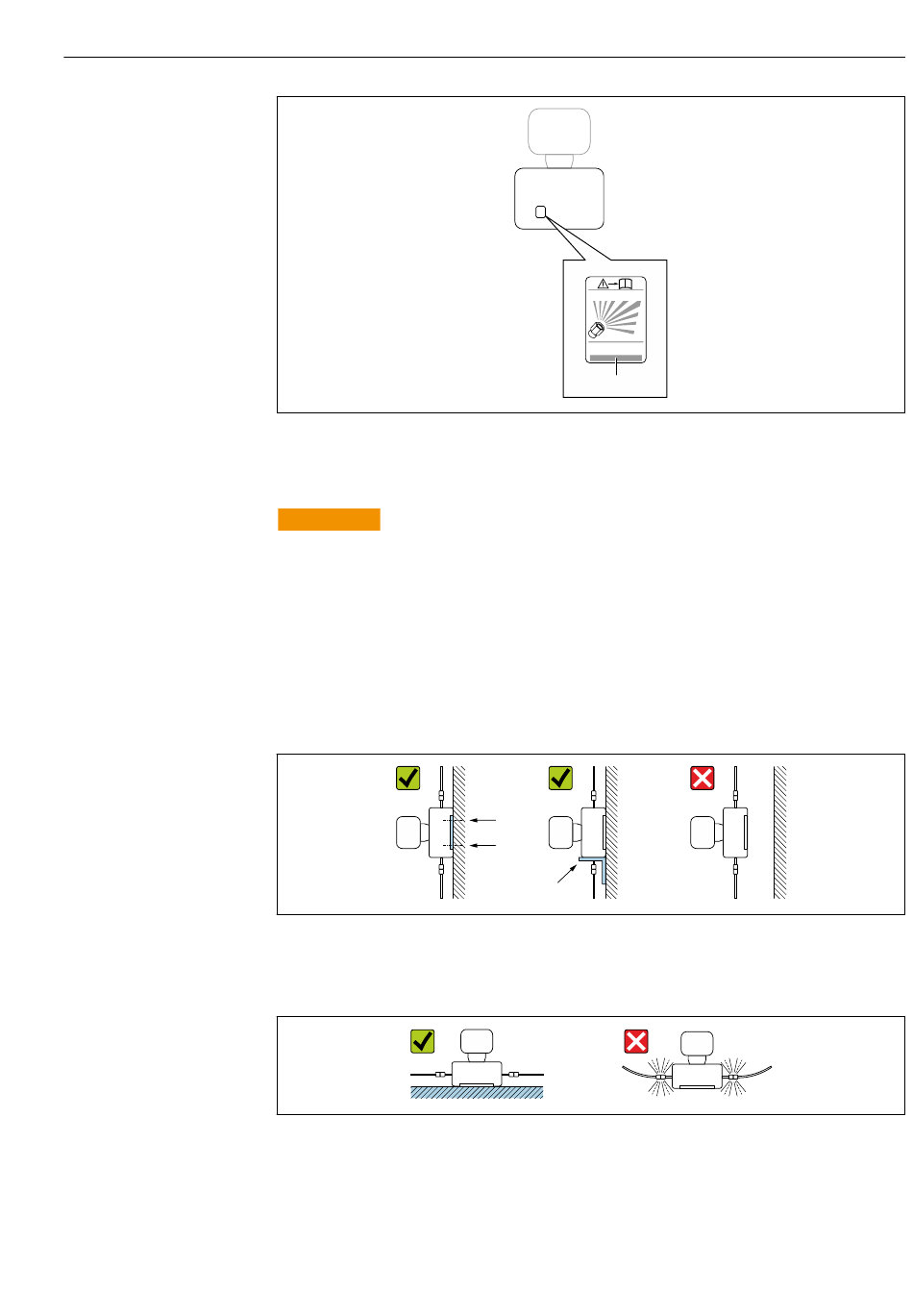

1 Rupture disk label
Wall mounting
WARNING
L
Incorrect sensor mounting
Risk of injury if measuring tube breaks
‣
The sensor should never be installed in a pipe in a way that it is freely suspended
‣
Using the base plate, mount the sensor directly on the floor, wall or ceiling.
‣
Support the sensor on a securely mounted support base (e.g. angle bracket).
The following mounting versions are recommended for the installation.
Vertical
• Mounted directly on a wall using the base plate, or
• Device supported on an angle bracket mounted on the wall
Horizontal
Device standing on a solid support base
Mounting plate
The universal mounting plate can be used to affix or place the unit on a flat surface (order
code for "Accessories", option PA).
i
RUPTURE DISK
1
Installation
A0029940
A0030286
A0030287
23
