1. Select the Logout entry in the function row.
 The home page with the Login box appears.
2. Close the Web browser.
3. If no longer needed:
Reset modified properties of the Internet protocol (TCP/IP) →  40.
If communication with the Web server was established via the default IP address
192.168.1.212, DIP switch No. 10 must be reset (from ON → OFF). Afterwards, the IP
address of the device is active again for network communication.
8.5

Access to the operating menu via the operating tool

8.5.1

Connecting the operating tool

Via EtherNet/IP network
This communication interface is available in device versions with EtherNet/IP.
Star topology
1
 12

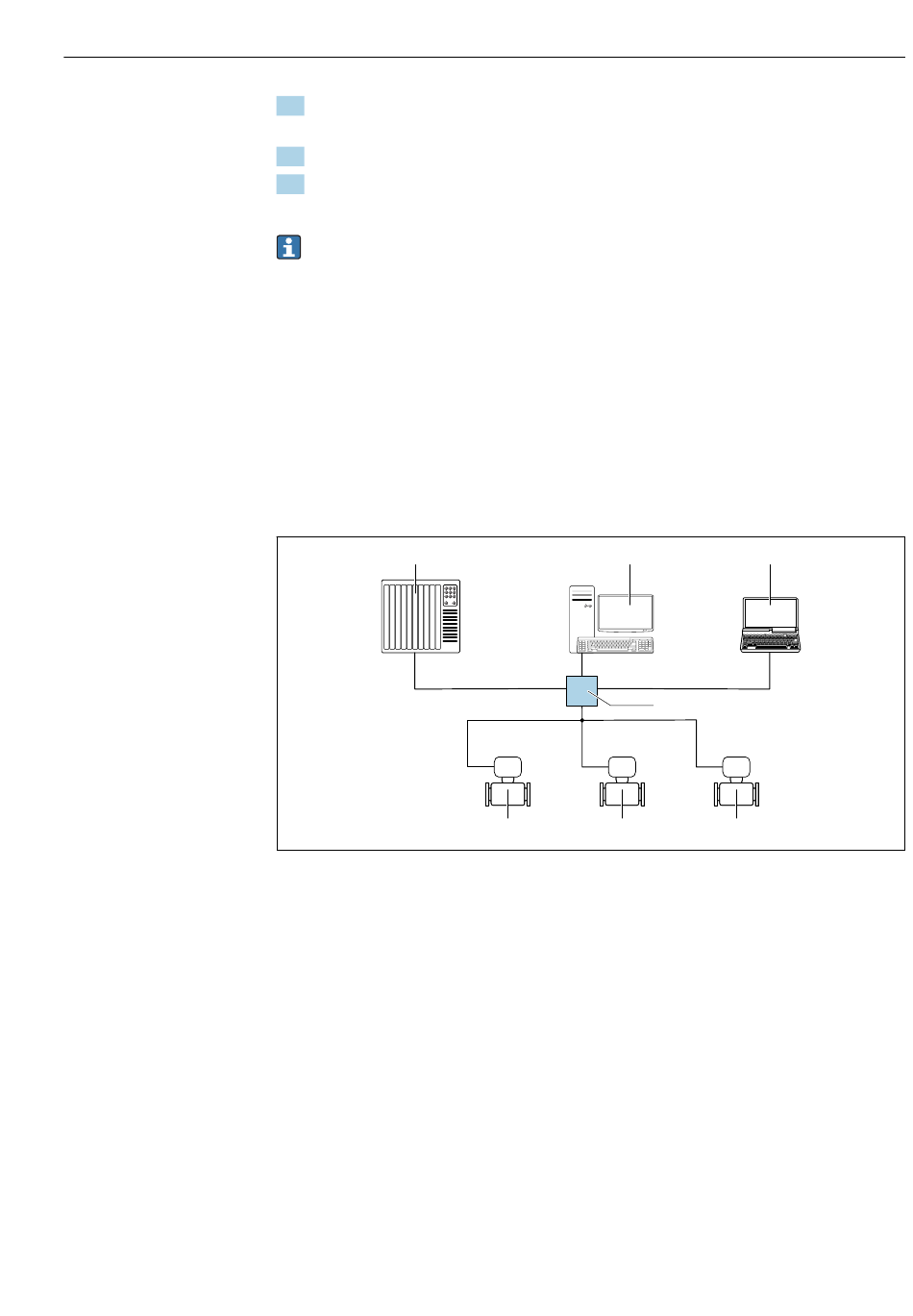

Options for remote operation via EtherNet/IP network: star topology
1
Automation system, e.g. "RSLogix" (Rockwell Automation)
2
Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell
Automation) or with Electronic Data Sheet (EDS)
3
Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or
computer with operating tool (e.g. FieldCare, DeviceCare) with COM DTM "CDI Communication TCP/IP"
4
Ethernet switch
5
Measuring device
2
4
5
5
Operation options
3
5
A0032078
