Chapter 4

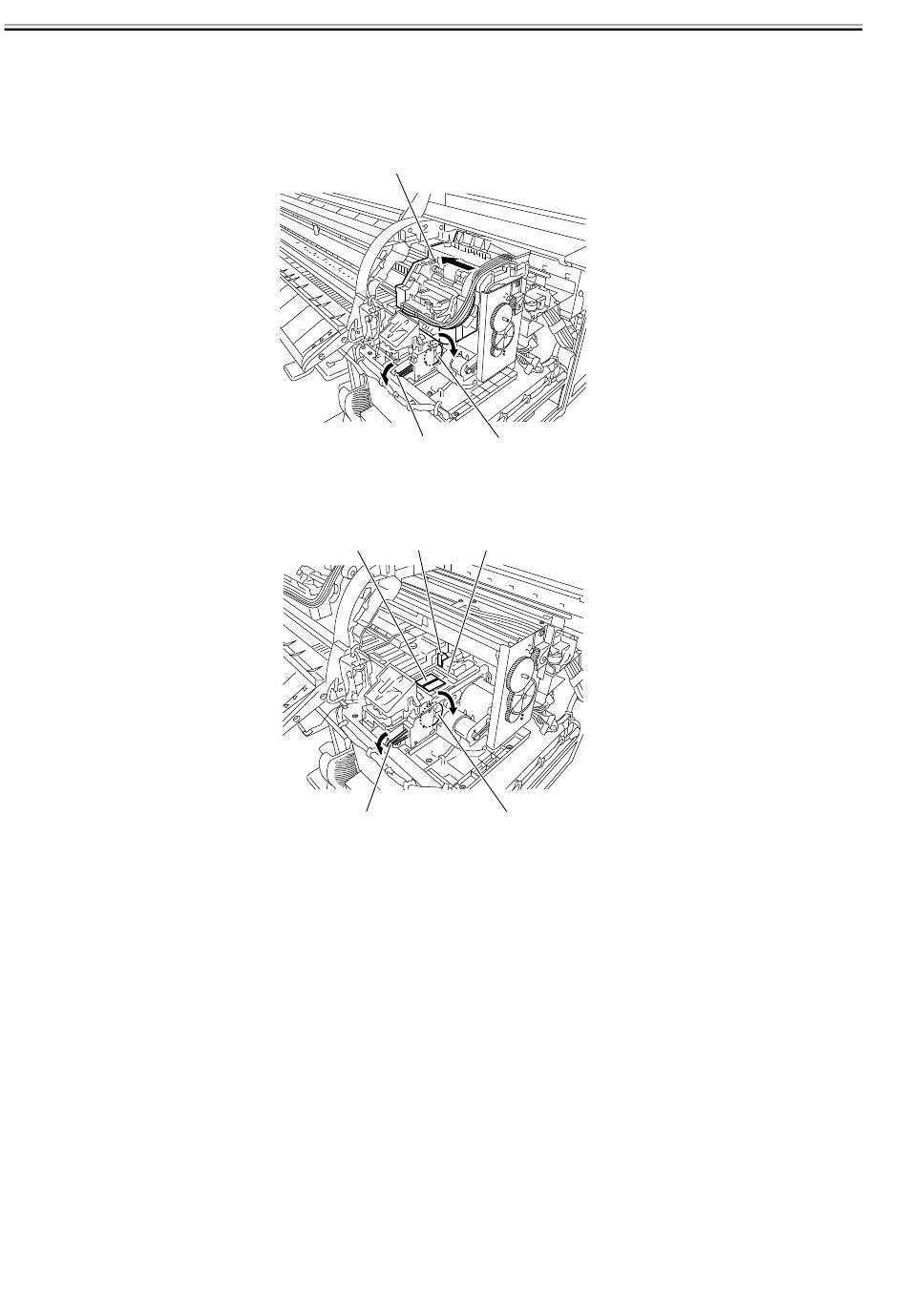

4.3.17 Opening the Cap/Moving the Wiper Unit

This section explains how to move the cap, carriage lock pin and wiper unit manually.
Moving carriage when the power of the printer is off, releasing carriage lock pin and uncapping must be done manually.
1. Uncapping, releasing the carriage lock pin
1) Open the upper cover and remove the right circle cover (L), right circle cover (S), right side cover, rear right cover and upper right cover.
2) Turn the gear [1] or motor pulley [2] of the purge unit toward the direction of the arrow. This will lower cap and lock pin, allowing the carriage [3] to be moved.
2. Moving the wiper unit
1) Open the upper cover and remove the right circle cover (L), right circle cover (S), right side cover, rear right cover and upper right cover.
2) To move the cap [3], lock pin [4] and wiper unit [5], turn the gear [1] or motor pulley [2] of the purge unit toward the direction of the arrow.
4-50
[3]
[2]
[1]
F-4-110
[3] [4] [5]
[2] [1]
F-4-111
