Ink Tank Unit - Canon imagePROGRAF iPF815 Service Manual

Chapter 4

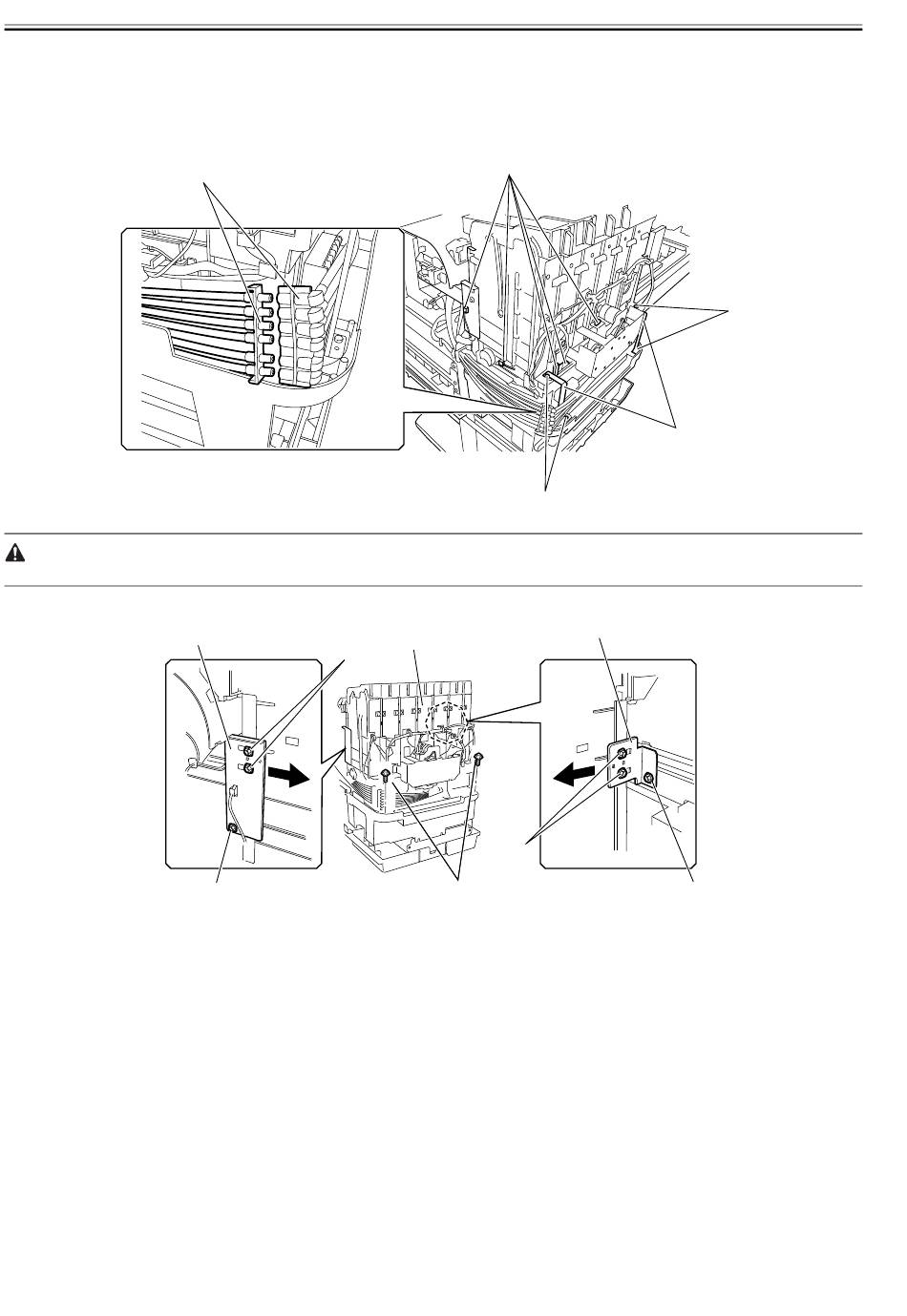

4.3.12 Ink Tank Unit

a) Removing ink tank unit
1) Perform ink drainage. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Ink Drainage."
2) Remove the joint [1] interconnecting the ink tube unit and the ink tank unit to each other.
3) Remove four screws [2] to remove two ground plates [3].
4) Remove five connectors [4] to release the bundled wires and ink tube from the guide.
Cover the joint in the ink tube, as with a PVC bag, to keep inks from splashing from them.
5) Remove two screws [1] and loosen four screws [2] to slide support [3]. Remove two screws [4] to remove ink tank unit [5].
4-42
[1]
[3]
[2]
[1]
[4]
[2]
F-4-97
[5]
[2]
[4]
F-4-98
[2]
[3]
[3]
[1]
0020-5673
