Chapter 4

4.3.14 Opening the Cap/Moving the Wiper Unit

0028-9713
This section explains how to open the cap and ink supply valve.
To move the carriage with the power off, you need to release the carriage lock pin and cap.
a) Opening the Cap/Releasing the Carriage Lock Pin by service mode
After entering the service mode, execute the following mode.
Service mode: SERVICE MODE > FUNCTION > CR UNLOCK
b) Opening the Cap/Releasing the Carriage Lock Pin/Moving the Wiper Unit manually
1) Remove right circle cover (L), right circle cover (S), right side cover and upper right cover.

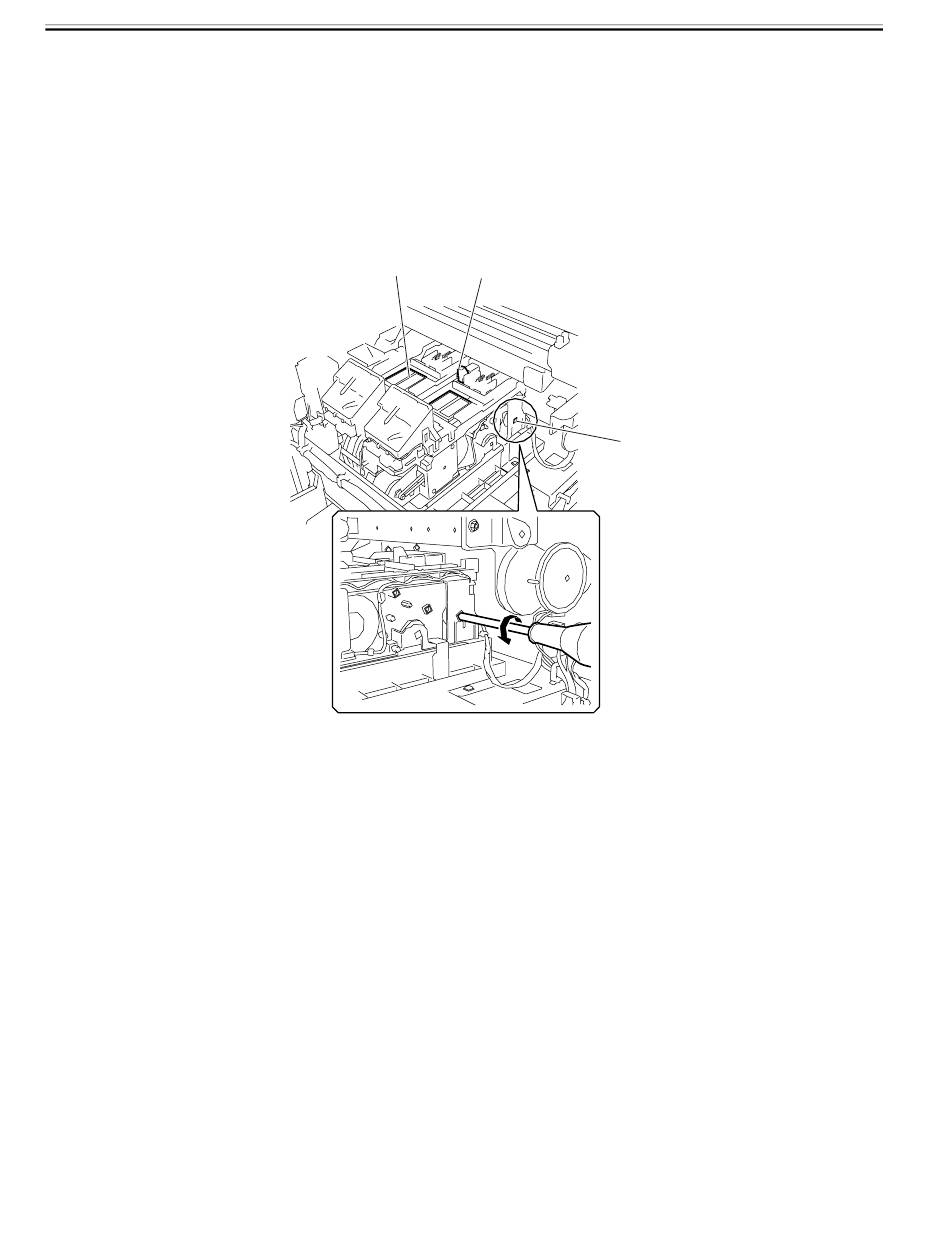

2) Insert a Phillips screwdriver from the right side into hole [1] in the shaft of the lift unit in the purge unit and turn it counterclockwise. This will lower cap [2] and
lock pin [3], allowing the carriage to be moved.
The wiper unit will move in sync with the motion of the cap and lock pin.
[2]
[3]
[1]
F-4-48
4-30
