Canon imagePROGRAF iPF815 Service Manual page 177

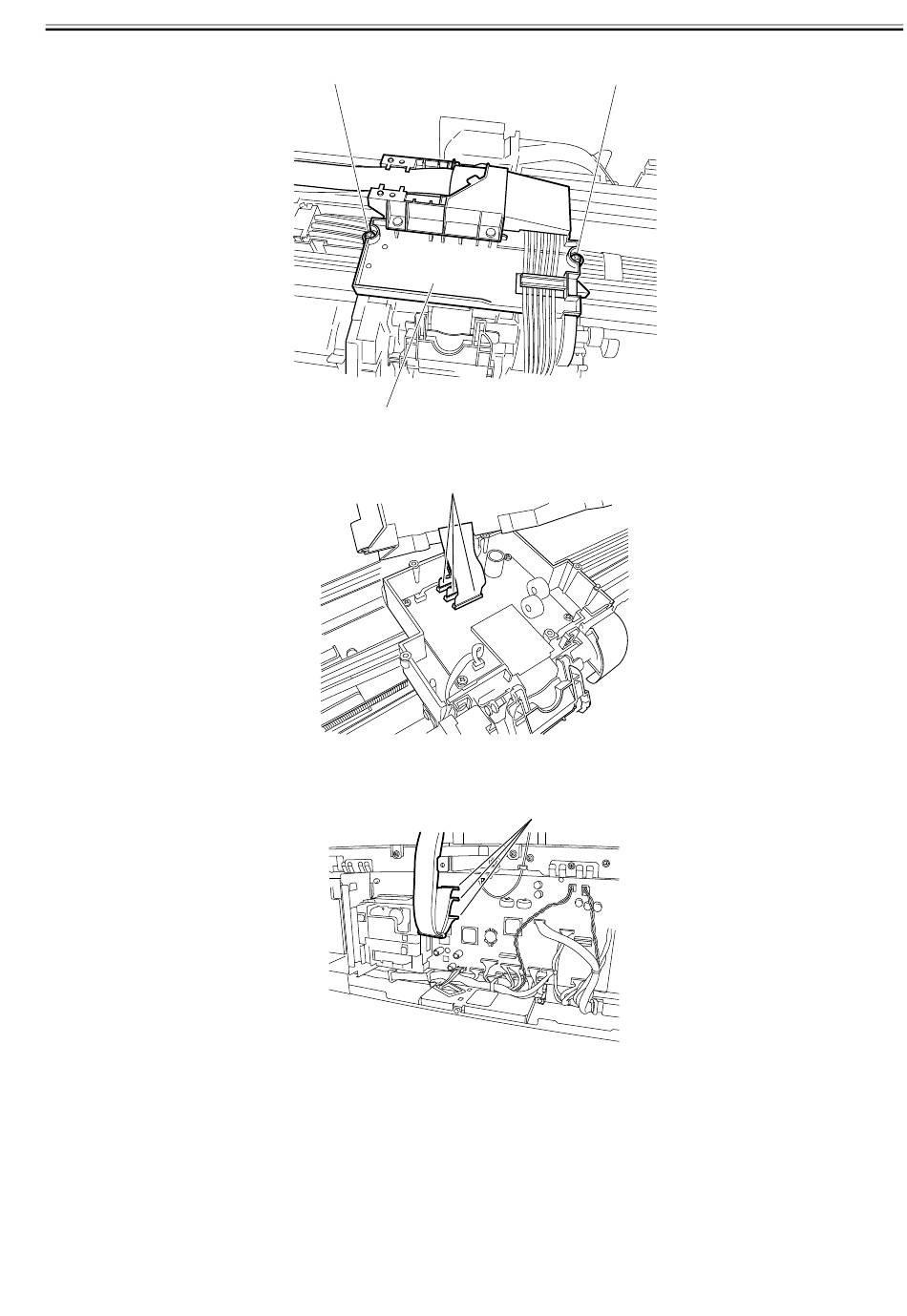

5) Remove two screws [1] to remove carriage upper cover [2].
6) Remove three connectors [1].
7) Remove the PCB cover.
8) Remove three connectors [3] from the main controller PCB.
[1]
[2]
F-4-53
[1]
F-4-54
F-4-55
[1]
[1]
Chapter 4
4-27
