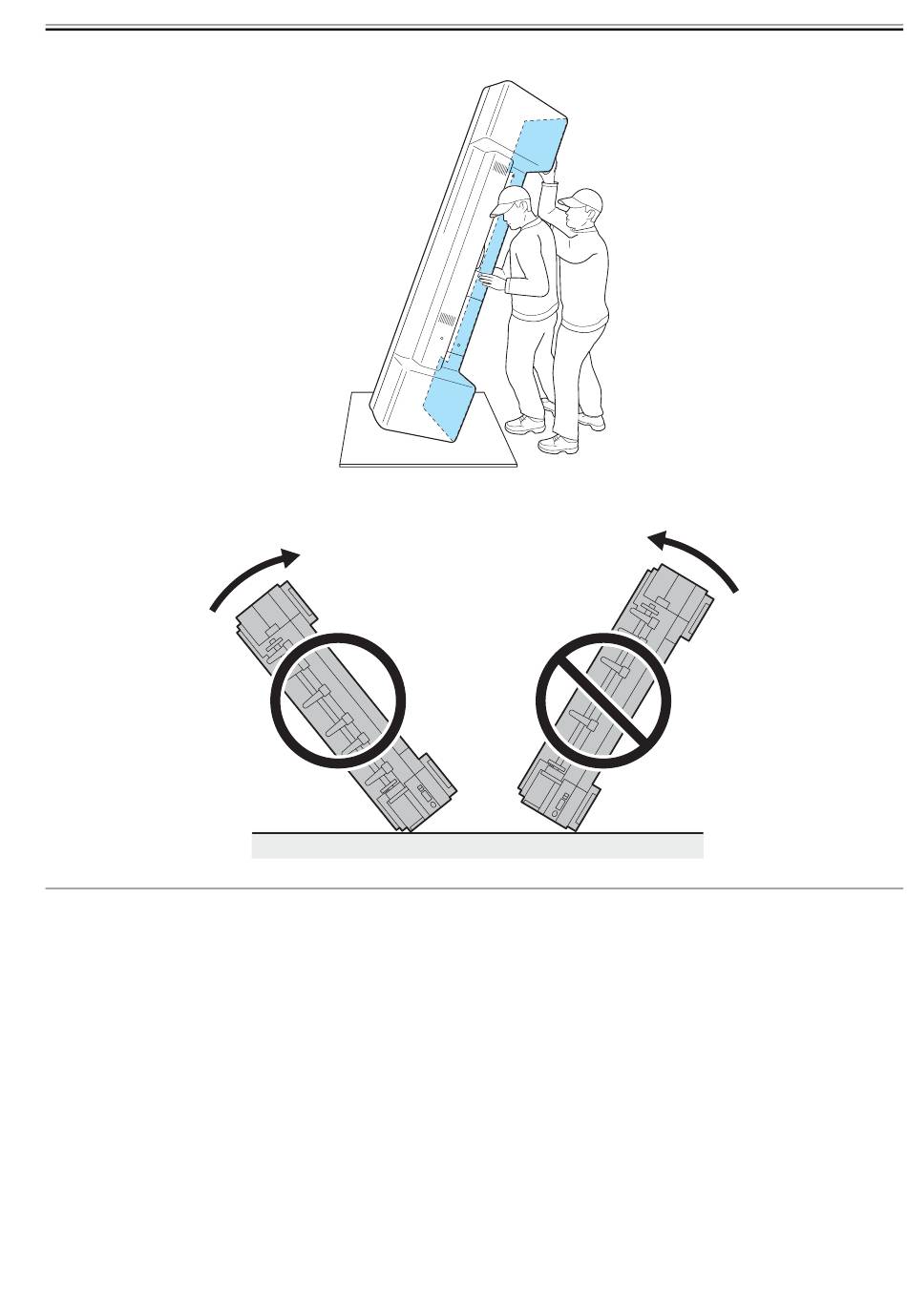

When tilting the printer, be sure to hold the carrying handles or the bottom's metal cover of the printer and place a cardboard or blanket on the floor to prevent
damage to the printer.
When tilting the printer, support the printer at bottom left and right side of the printer.
If the printer is supported at any other location, the printer may be damaged or deformed.
F-3-5
Top
Bottom
F-3-6
Bottom
Top
Chapter 3
3-3
