Purge Unit - Canon imagePROGRAF iPF815 Service Manual

4.3.10 Purge Unit

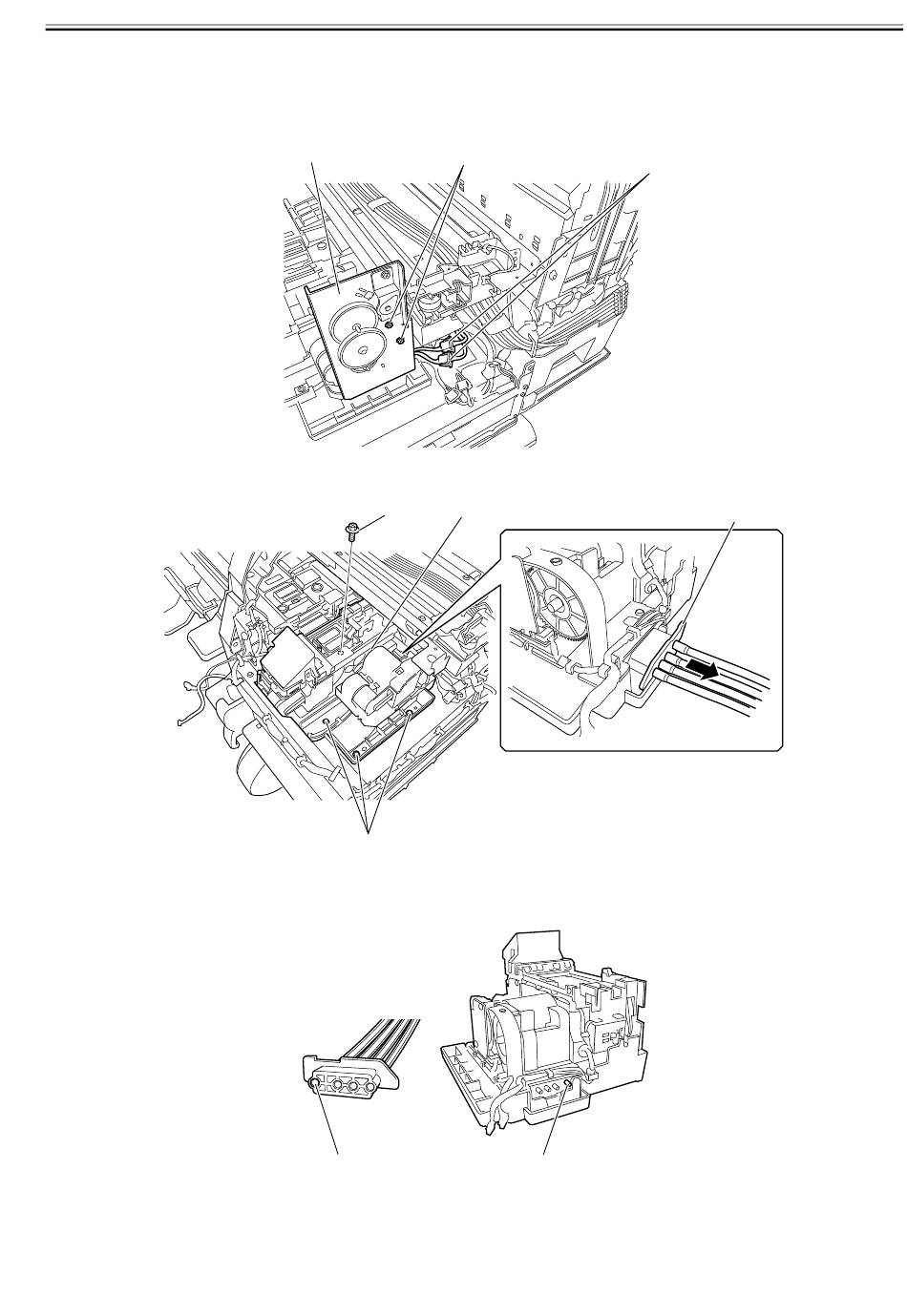

a) Removing the purge unit
1) Turn off the power to move the carriage onto the platen. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Opening the Cap and Moving
the Wiper Unit."
2) Remove two screws [1] and two connectors [2] to remove lift drive unit [3].
3) Remove four screws [1] and waste ink tube joint [2] to remove purge unit [3].
b) Precaution in mounting the purge unit
In mounting the waste ink tube joint, insert it fully into position to make sure that it is not loose or the tube is not buckled.
Mount also the joint to fit into the hole in [A].
