p) Cover stay unit (R)

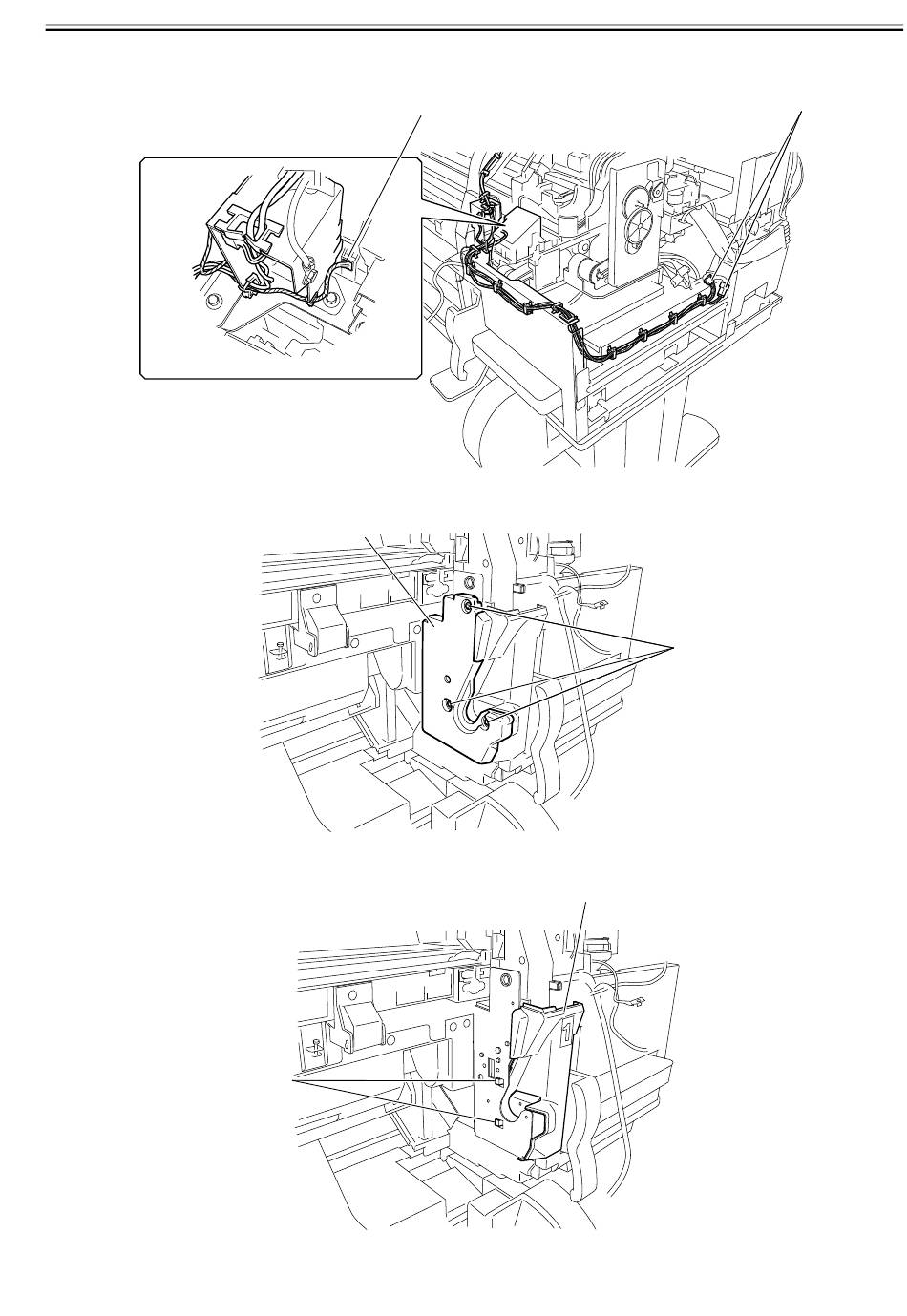

Removing the cover stay unit (R)
1) Disconnect three connectors [1] to release the harness from the harness guide.
2) Remove there screws [1] to remove spool holder (R) [2].
3) Remove two hooks [1] to remove spool holder from cover [2].
[1]
[2]
[1]
F-4-24
F-4-25
[2]
F-4-26
Chapter 4
[1]
[1]
4-13
