Canon imagePROGRAF iPF815 Service Manual page 187

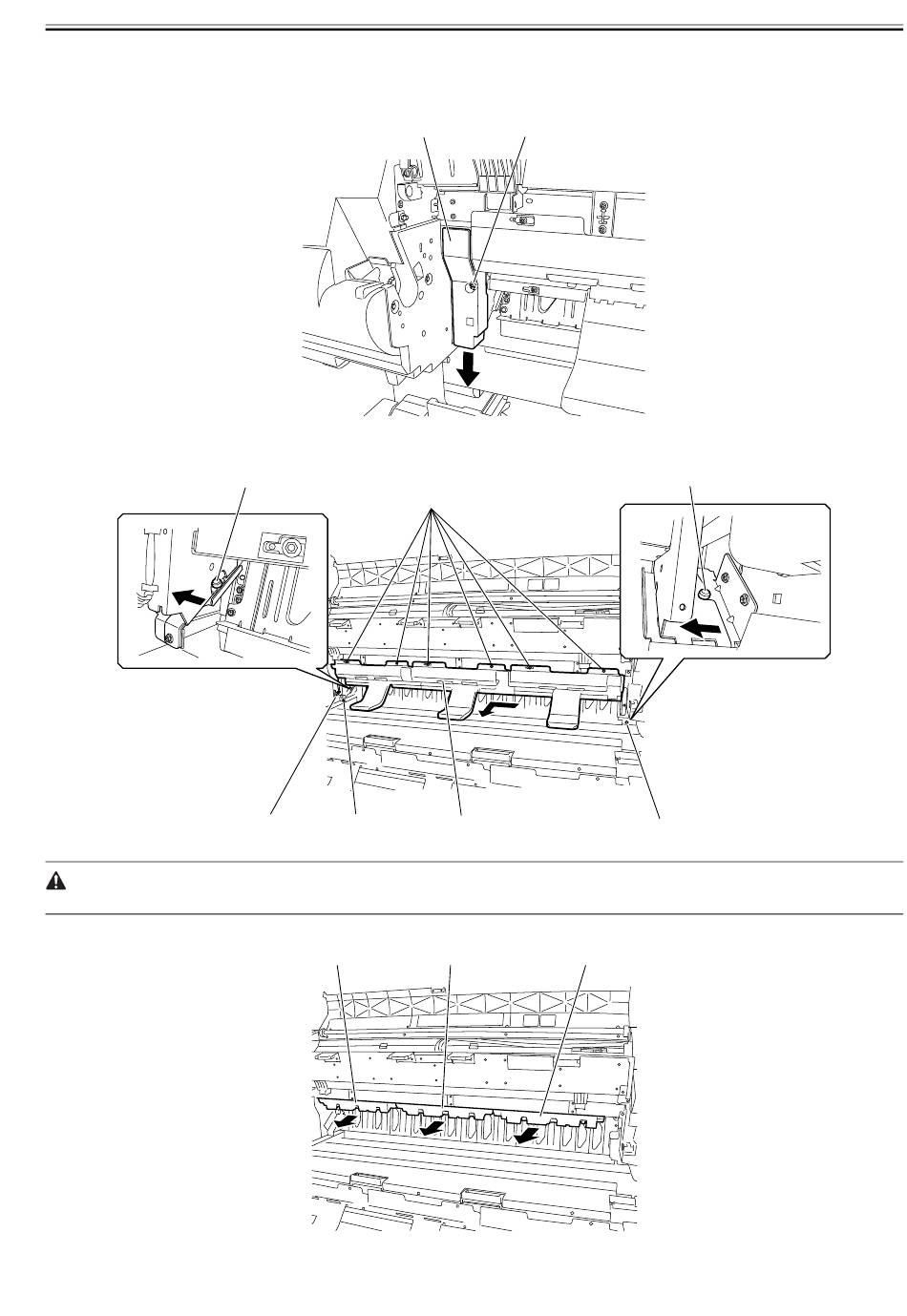

f) Removing the platen ink BOX unit
1) Open the upper cover.
2) Raise the ejection guides.
3) Pull out the lower roll unit as far as possible.
4) Remove screw [1] to remove left front inner cover [2].
5) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3].
The pick-up unit weighs about 27kg. Use maximum care not to drop it or let it hit other objects.
6) Slide platen ink BOX unit [1] to the front out of position.
[3]
[2] [1]
[1]
[2] [1]
F-4-83
[1]
[4]
F-4-84
[1] [1]
F-4-85
[3]
[1]
Chapter 4
4-37
