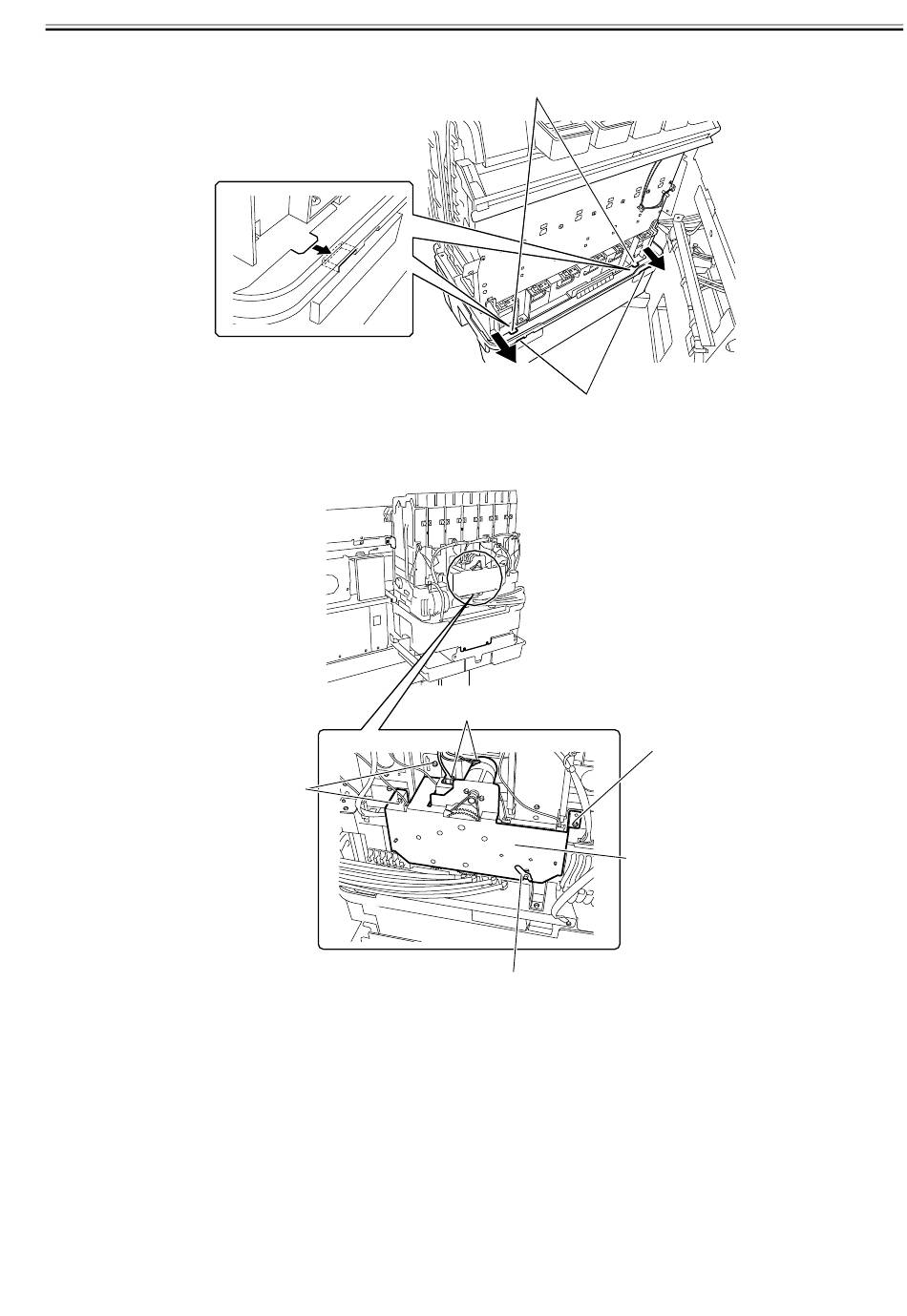

b) Precaution in mounting the ink tank unit
Check that two hooks [1] on the ink tank unit are inserted into notches [2] in the ink supply mount unit.
c) Removing the valve motor unit
1) To remove the valve motor unit, remove the ink tank cover unit.
2) Remove three screws [1], two connectors [2] and bearing [3], and then remove valve motor unit [4].
[1]
[1]
[2]
F-4-99
[2]
[3]
F-4-100
[1]
[4]
