4.3.9 Pick-up/Feed Unit

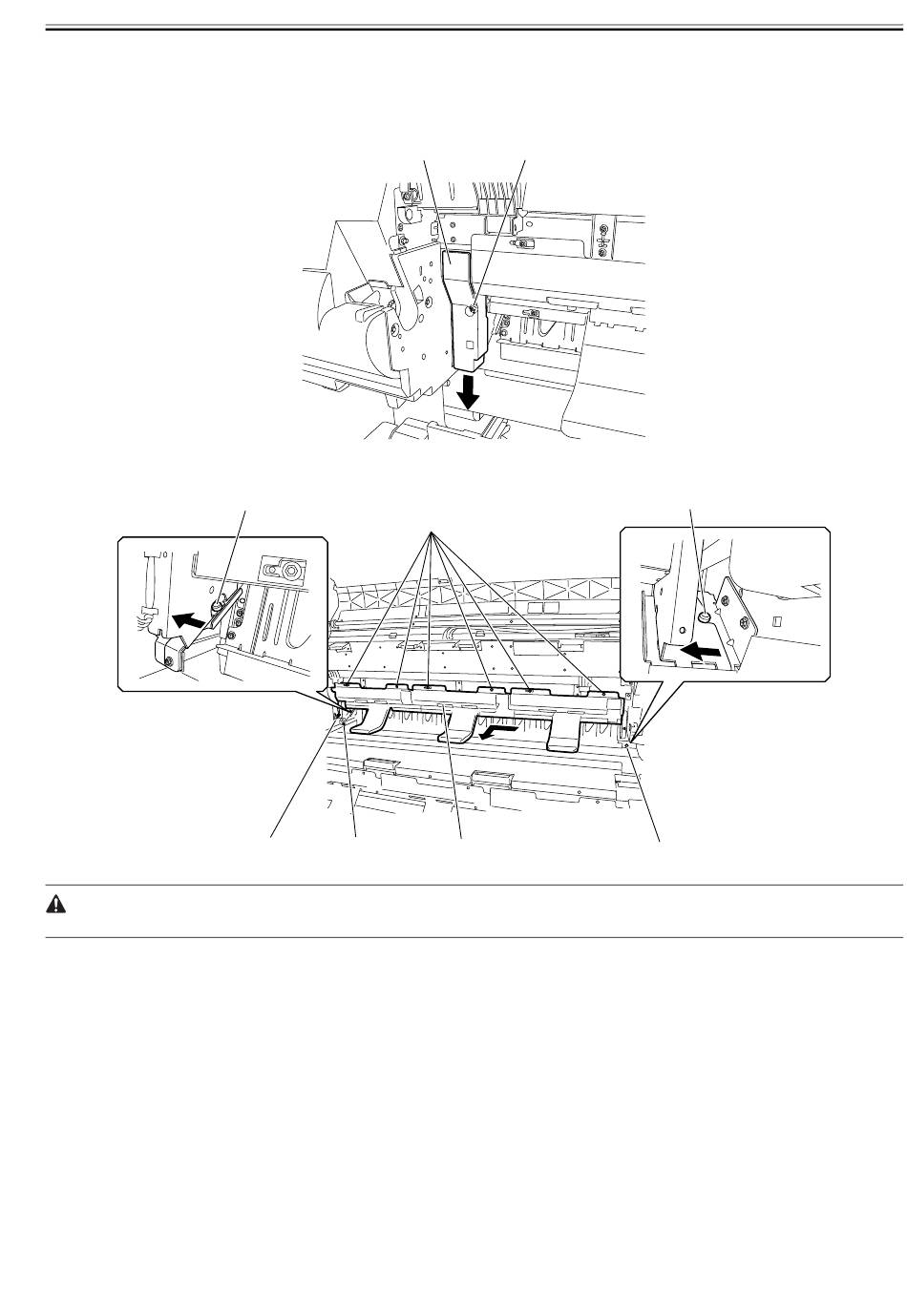

a) Removing the pick-up unit
1) Open the upper cover.
2) Raise the ejection guides.
3) Remove screw [1] to remove left front inner cover [2].
4) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3].
The pick-up unit weighs about 27kg. Use maximum care not to drop it or let it hit other objects.
[3]
[2] [1]
[2] [1]
F-4-59
[1]
[4]
F-4-60
[3]
[1]
