Canon imagePROGRAF iPF815 Service Manual page 161

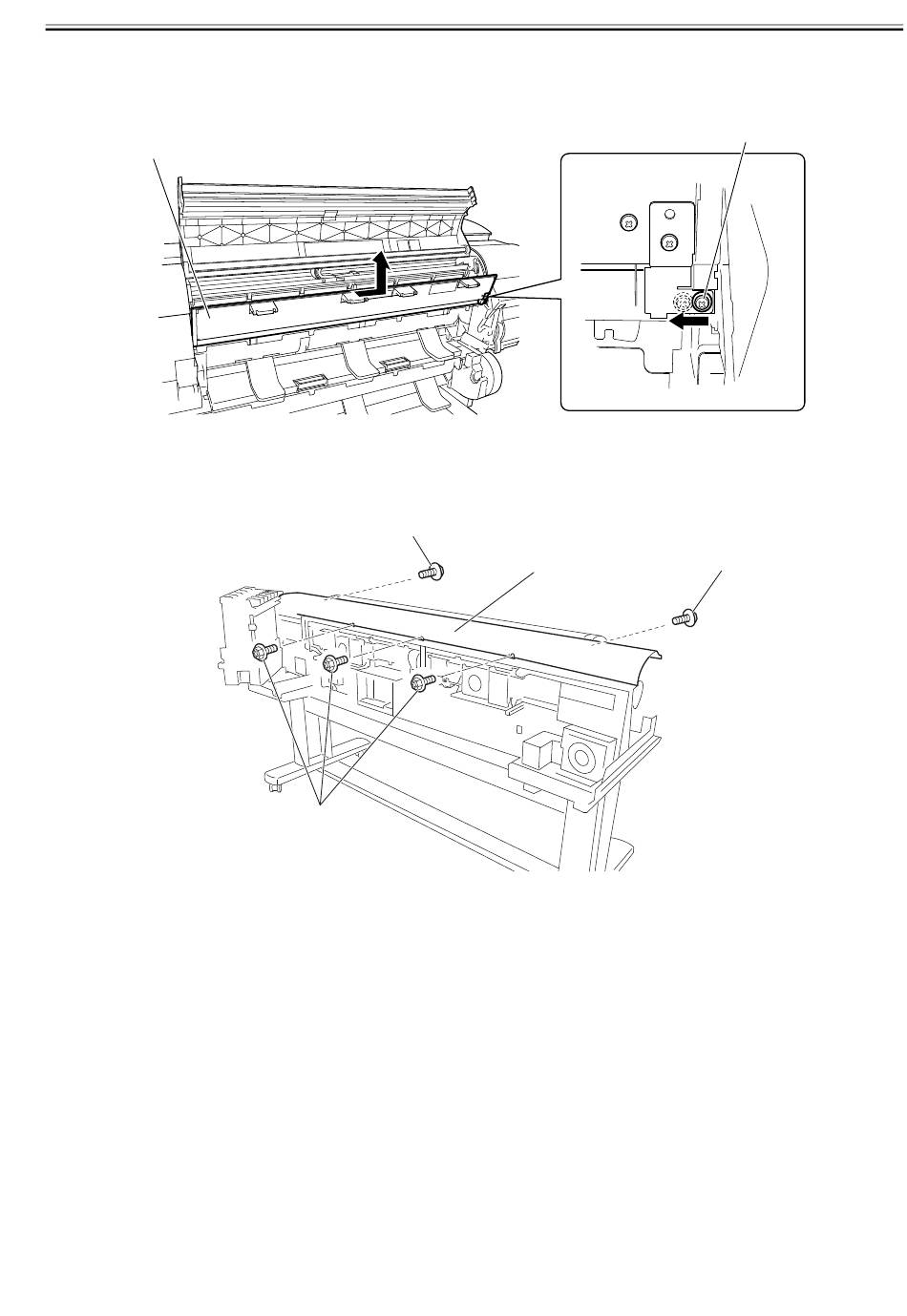

m) Ejection guides
Removing ejection guides
1) Raise the ejection guides.
2) Loosen screw [1] and slide it to left to tighten.
3) Remove ejection guide [2].
[2]
n) Upper rear cover
Removing the upper rear cover
1) To remove the upper rear cover, remove left/right circle covers (L), left/right circle covers (S), left/right side covers, upper left/right covers, left/right rear covers,
and ink tank cover unit and then open the ink tank.
2) Remove two screws [1] on front side of the printer and three screws [2] on the rear side, and then remove upper rear cover [3].
F-4-20
[1]
[2]
F-4-21
[3]
Chapter 4
[1]
[1]
4-11
