Canon imagePROGRAF iPF815 Service Manual page 172

Chapter 4

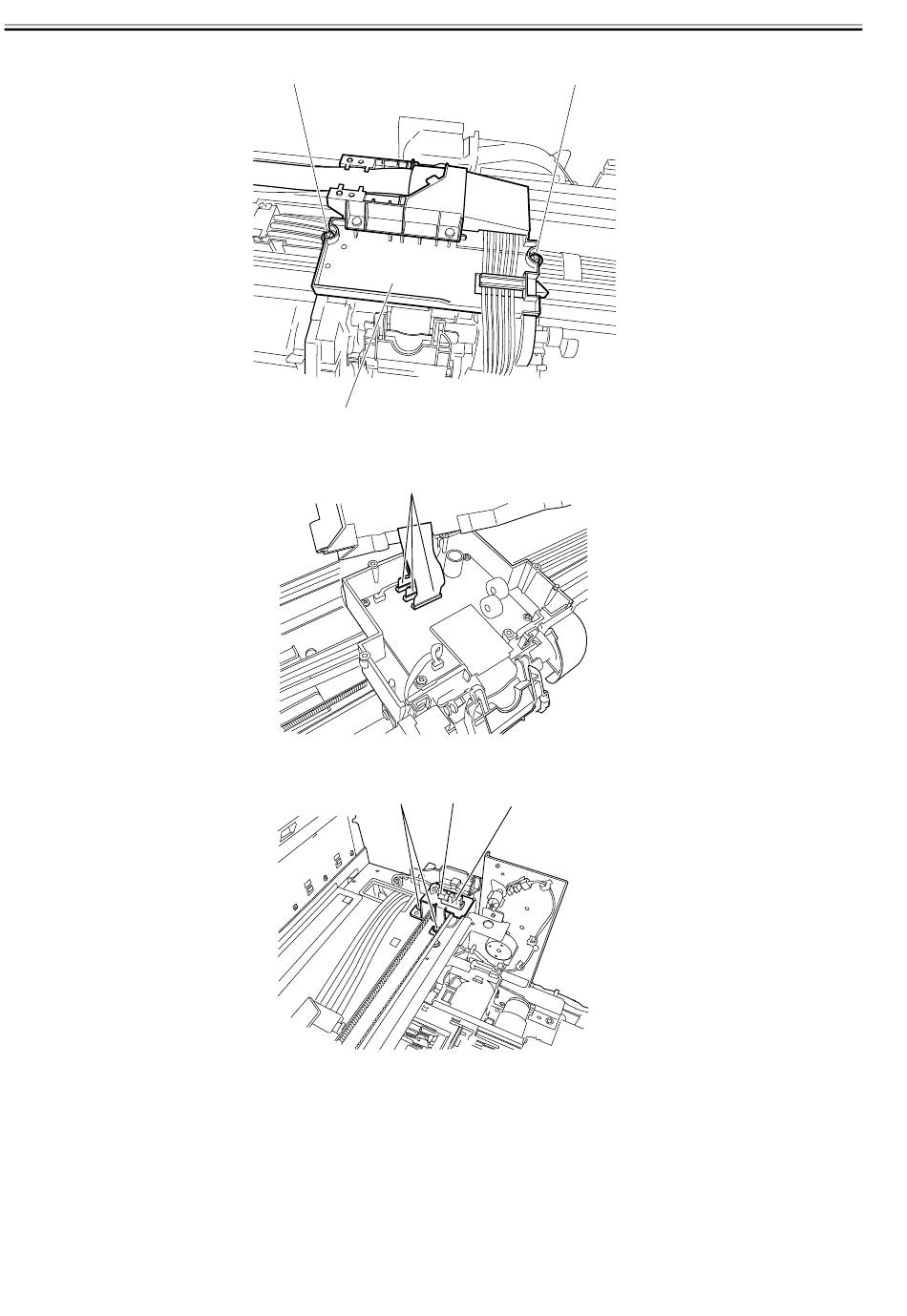

5) Remove two screws [1] to remove carriage upper cover [2].
6) Remove three connectors [1].
7) Remove two screws [1] and connector [2] to remove carriage HP sensor assembly [3].
4-22
[1]
[2]
F-4-43
[1]
F-4-44
[1] [2]
F-4-45
[1]
[3]
