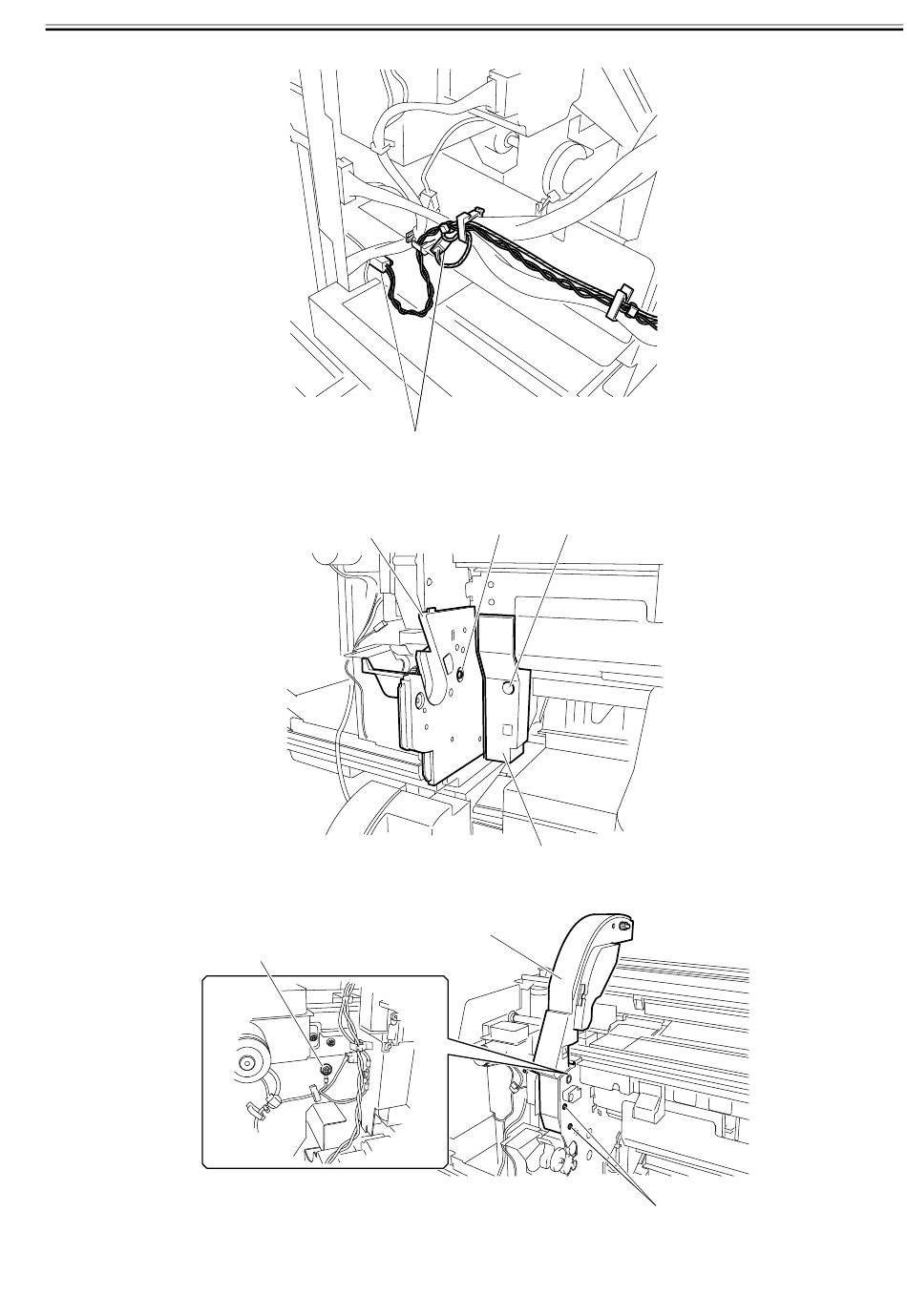

2) Disconnect two connectors [1] from the back of the printer to release the harness from the harness guide.
3) Remove screw [1] to remove left front inner cover [2].
4) Remove screw [3] to remove spool holder [4].
5) Remove screw [1] to remove cover stay unit [2].
[1]
[4]
[1]
F-4-29
[3]
[1]
[2]
F-4-30
[2]
F-4-31
[1]
Chapter 4
4-15
