1.7.1.2 Adhesion of Ink

1. Ink passages
Be careful not to touch the ink passages of the printer or to allow ink to stain the workbench, hands, clothes or the printer under repair.

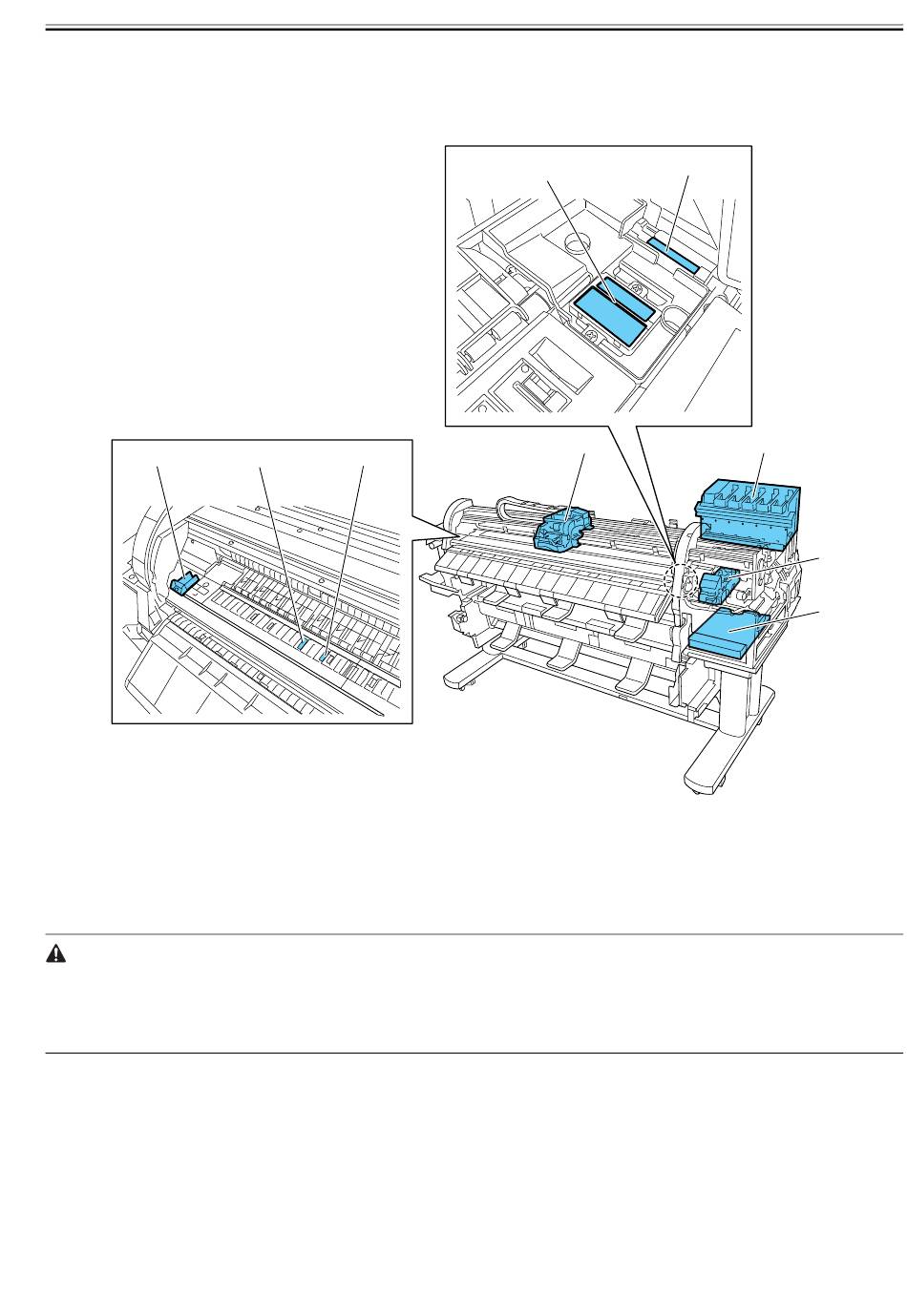

The ink flows through the ink tank unit, carriage unit, purge unit, maintenance jet tray, borderless print ink groove, maintenance cartridge and the ink tubes that
relay ink to each unit.
[9]
[1]
[2]
[3]
[4]
[5]
Although the ink is not harmful to the human body, it contains organic solvents.
Avoid getting the ink in your mouth or eyes.
Flush well with water and see a doctor if contact occurs.
In case of accidental ingestion of a large quantity, call a doctor immediately.
Since this ink contains pigment, stains will not come out of clothing.
[8] [7]
Maintenance cartridge
Purge unit
Ink tank unit
Head management sensor ink tray
HP maintenance jet tray
[5]
[6]
F-1-37
[6] Carriage
[7] Borderless printing ink groove
[8] Platen maintenance jet groove
[9] BP maintenance jet tray
