Chapter 4

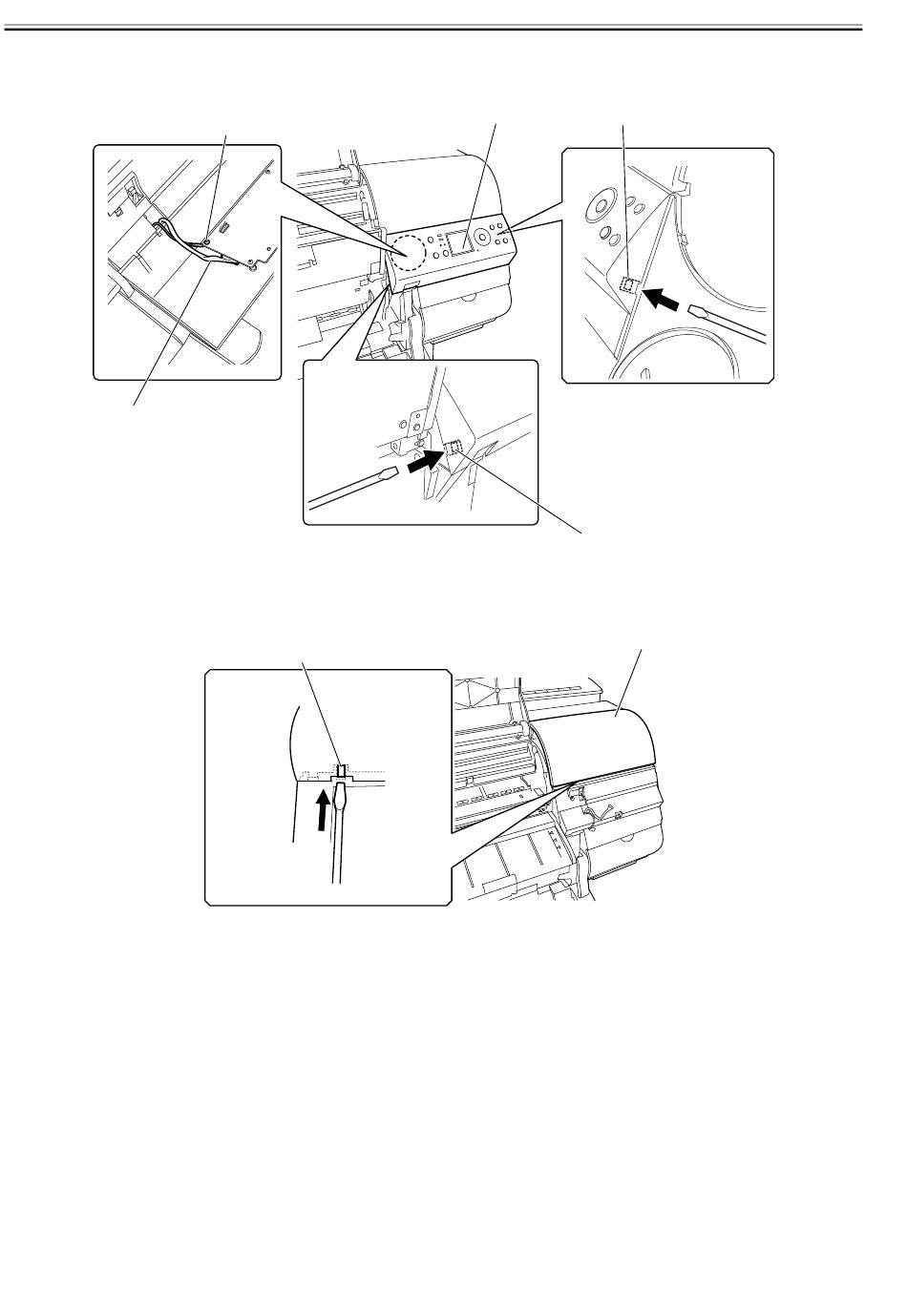

d) Operation panel
Removing the operation panel
1) To remove operation panel [1], open the upper cover and raise the ejection guides. Remove two claws [2] using a flathead screwdriver and disconnect connector
[3] and ground wire [4].
[2]
[1]
[4]
[3]
[2]
F-4-9
e) Upper left cover/Upper right cover
Removing the upper left cover/upper right cover
1) To remove upper left/right covers [1], remove left/right circle covers (L), left/right circle covers (S) and left/right side covers.
2) Insert a flathead screwdriver at the position shown in the figure to remove hook [2].
[1]
[2]
F-4-10
f) Right front cover
Removing the right front cover
4-6
