Resume: This option is available if the system is armed and the previous session was not completed.
Selecting Resume will return the session to the point at which it was stopped, beginning at the start of
the next train regardless of when the last train was stopped.
Setup: Selection of this option will return the user to the Repetitive Setup screen.
Single Pulse: Selecting this option will return the user to the Single Pulse Mode screen.
Options Menu: Section of this option will return the user to the Options Menu screen.
Repetitive Mode: Burst
4.4.3
4.4.3.1
Select Burst Mode from the Repetitive Setup
screen
to
parameters to be set.
If Repetitive Setup is accessed from Single
Pulse Mode, the protocol intensity value
established in Single Pulse Mode will be carried
over into the power window.
To enter Burst Mode, select the 'Burst' mode
selection button on the Repetitive Setup screen
which allows the listed adjustable parameters to
be set.
To alter the settings, touch the window next, or
below, the required setting. A dark blue margin
will appear within the selected window. The settings can be quickly altered using the Rotary Control
Knob. Windows with a white background can not be altered.
The status of the charge delay and duration are synchronised between Single Pulse Mode and
Repetitive Mode. That is, any changes made to the charge delay settings in Repetitive Mode will be
reflected in Single Pulse Mode.
Power: Selecting the Power window allows you to adjust the power level between 0% and 100%
using the Rotary Control knob.
Frequency: Selecting the Frequency window will allow the user to set the frequency of the pulses to a
value between 0 and FMaxHz in 1Hz increments. The maximum frequency can be up to 100Hz
depending on the power level set and the system configuration. A table detailing the available power/
frequency combinations is included in Appendix D.
Number of Pulses: Selecting the 'Number of Pulses' window allows the user to set the number of
pulses per Burst. The Number of Pulses can be set between 1 and 10 using the Rotary Control Knob.
Number of Bursts: Selecting the 'Number of Bursts' window allows the user to set the number of
bursts in a cycle. The number can be set between 1 and 500 in increments of 1
Burst Frequency: Selecting the 'Burst Frequency' window allows the user to set the Burst frequency
between 1Hz and 10Hz.
Cycle Time: Selecting the 'Cycle Time' window allows the user to set the time for each cycle in
seconds. The time can be set between 1 and 500 seconds in increments of 0.1 seconds. The cycle
time represents the sum of the 'Delivery Time' and the 'Wait Time'. The delivery time is dependant
© The Magstim Company Limited
Repetitive Setup: Burst
allow
the
following
adjustable
Mode Selection
Buttons
Information
Window

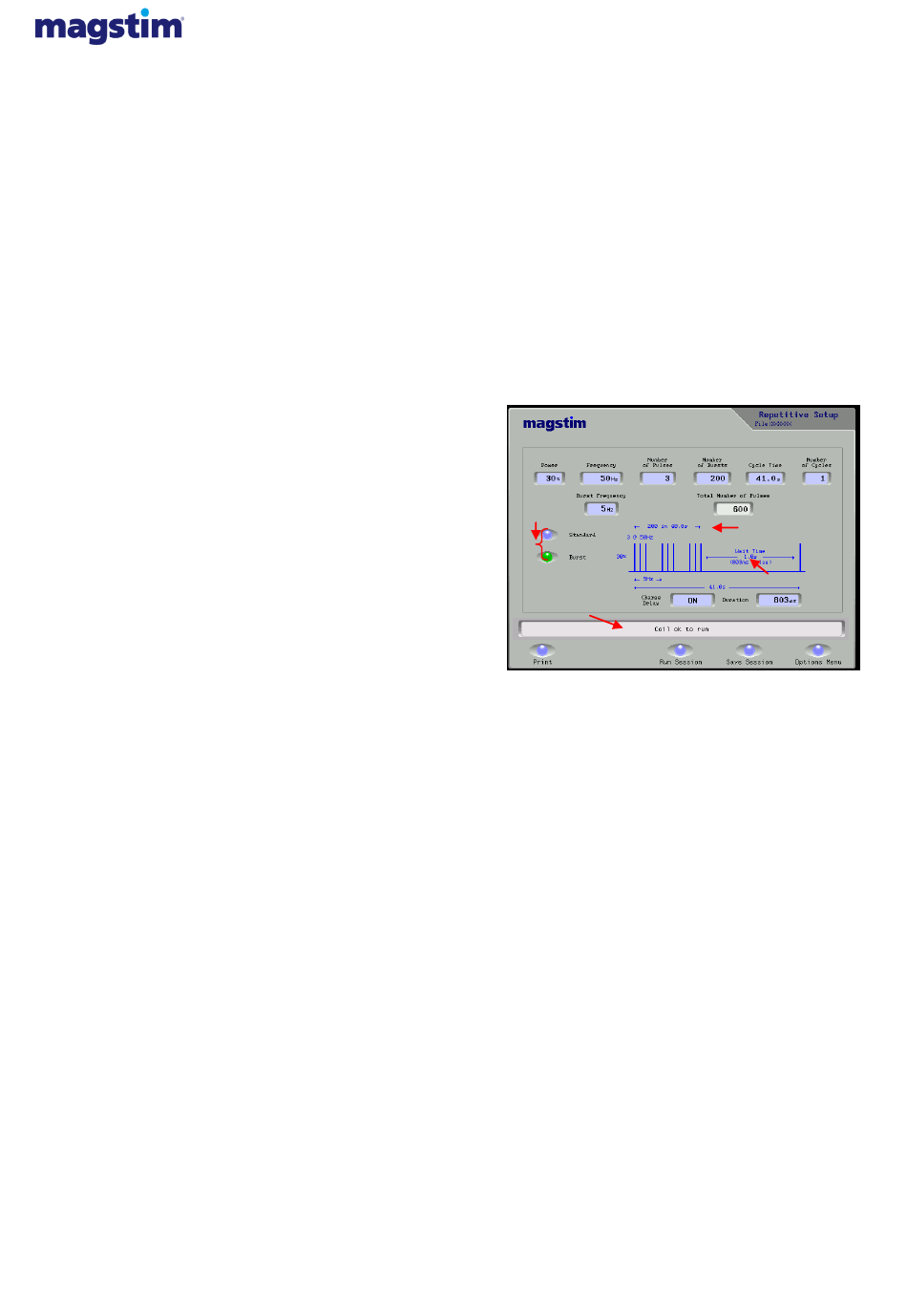

Figure 4.20: Repetitive (Burst) Setup Window
33
Magstim Rapid²
Operating Manual
DELIVERY tIME
Duration (Charge
Delay)
MOP03-EN-03
