MAGSTIM Rapid2 Operating Manual page 14

3.2.1.3
The power indicator flashes when the Magstim Rapid² is in standby, and illuminates when the Magstim
Rapid² is on.
3.2.1.4
This socket is used to connect the stimulating coil to the Magstim Rapid². Note that the unit
Note: It is normal for the pin indicated on the label to protrude from the coil socket. This is an
intentional design feature.
3.2.1.5
This LED is continuously illuminated when the Magstim Rapid
on the system. This LED turns RED when a fault is detected in the PSU.
3.2.1.6
The PSU power indicator is OFF when the system is in standby or OFF. It is continuously illuminated
when the system is on.
3.2.1.7
This LED is continuously illuminated green when the Plus
3.2.1.8
This LED is continuously illuminated green when system is operating correctly. This LED turns RED
when a fault has been detected in either the Dual PSU or Plus
3.2.1.9
This is the interface by which the user controls the stimulator. See Section 3.3 for further details.
© The Magstim Company Limited
Power Indicator* (3)
Coil Output Socket* (4)

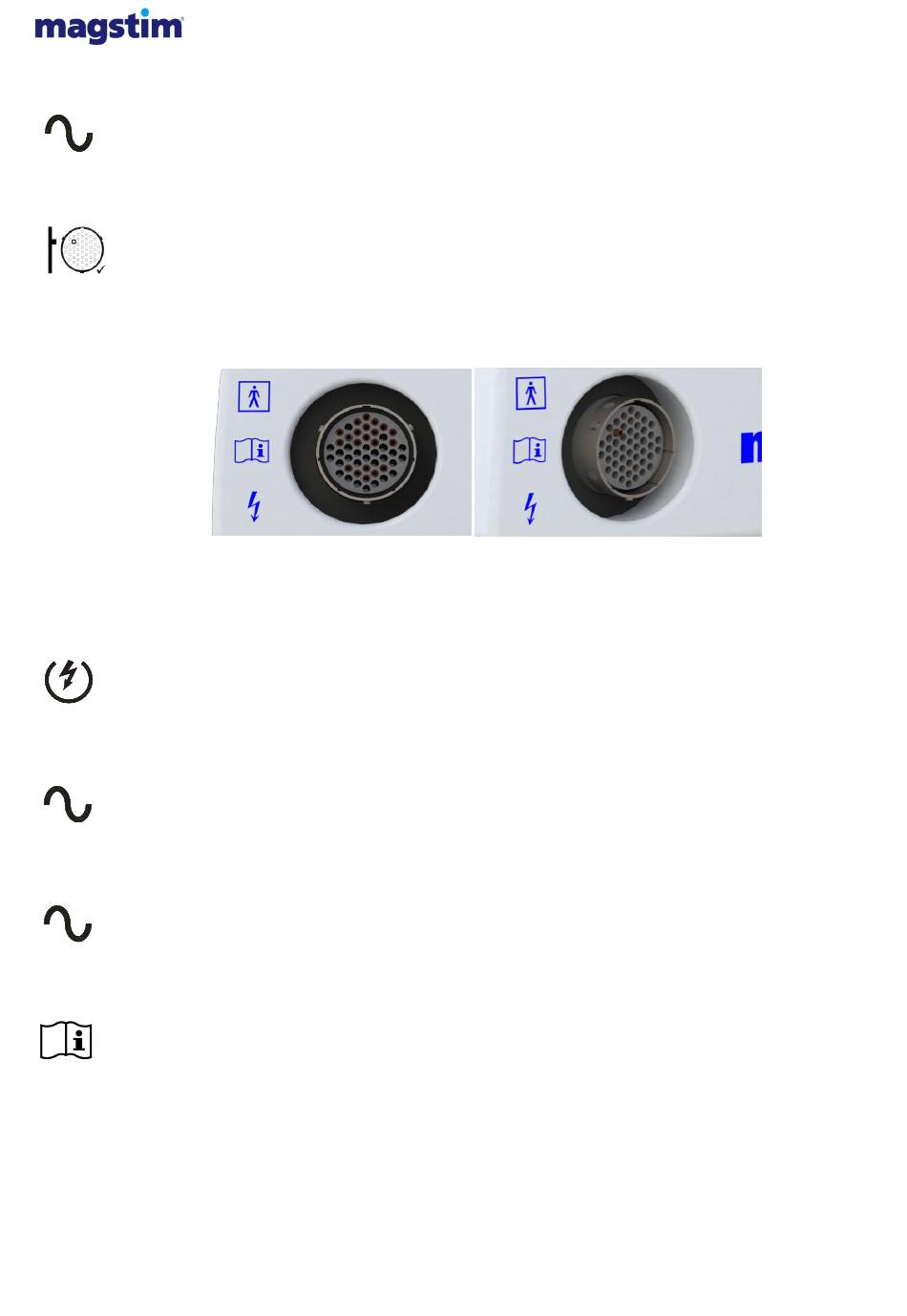

Figure 3.6: Coil output socket front view
Armed/Fault Indicator* (5)
PSU Power Status Indicator* (6)
Power Indicator* (7)
Status/Fault Indicator* (8)
Rapid² UI (9)
Figure 3.7: Coil output socket angled view
2
is armed and high voltages are present
1
module is powered on.
1
Module.
11
Magstim Rapid²
Operating Manual
MOP03-EN-03
