Magstim Rapid²
Operating Manual
Turning the charge delay OFF causes the duration window to display 0ms. Turning the charge delay
ON will restore any previously set charge delay duration since power-up. The default duration on
power-up is 0ms.
Note: After each delivered pulse, the system will not begin to re-charge until the specified charge
delay duration has elapsed. Any attempt to trigger the system during this charge delay period will be
ignored.
Note: If Repetitive Mode or Session Mode is accessed via Single Pulse Mode, the Charge Duration
set will be carried over into these modes.
Note: Charge Delay mode is not supported in Session Mode.
4.4.1.3
Parameters Panel
Press the Parameters button (green when
selected) to access the MEP Configuration
panel.
Time Base: Selecting the Time Base window
allows the user to set the MEP total sample
period. The selectable options are; 20ms, 50ms,
100ms, 200ms and 500ms and are selected
using the Rotary Control Knob. The trace width
will show the whole of the selected sample
period.
Filters: Selecting the Filters window allows the
user to set the MEP Filter using the Rotary
Control Knob. Selectable options: 2Hz-10kHz

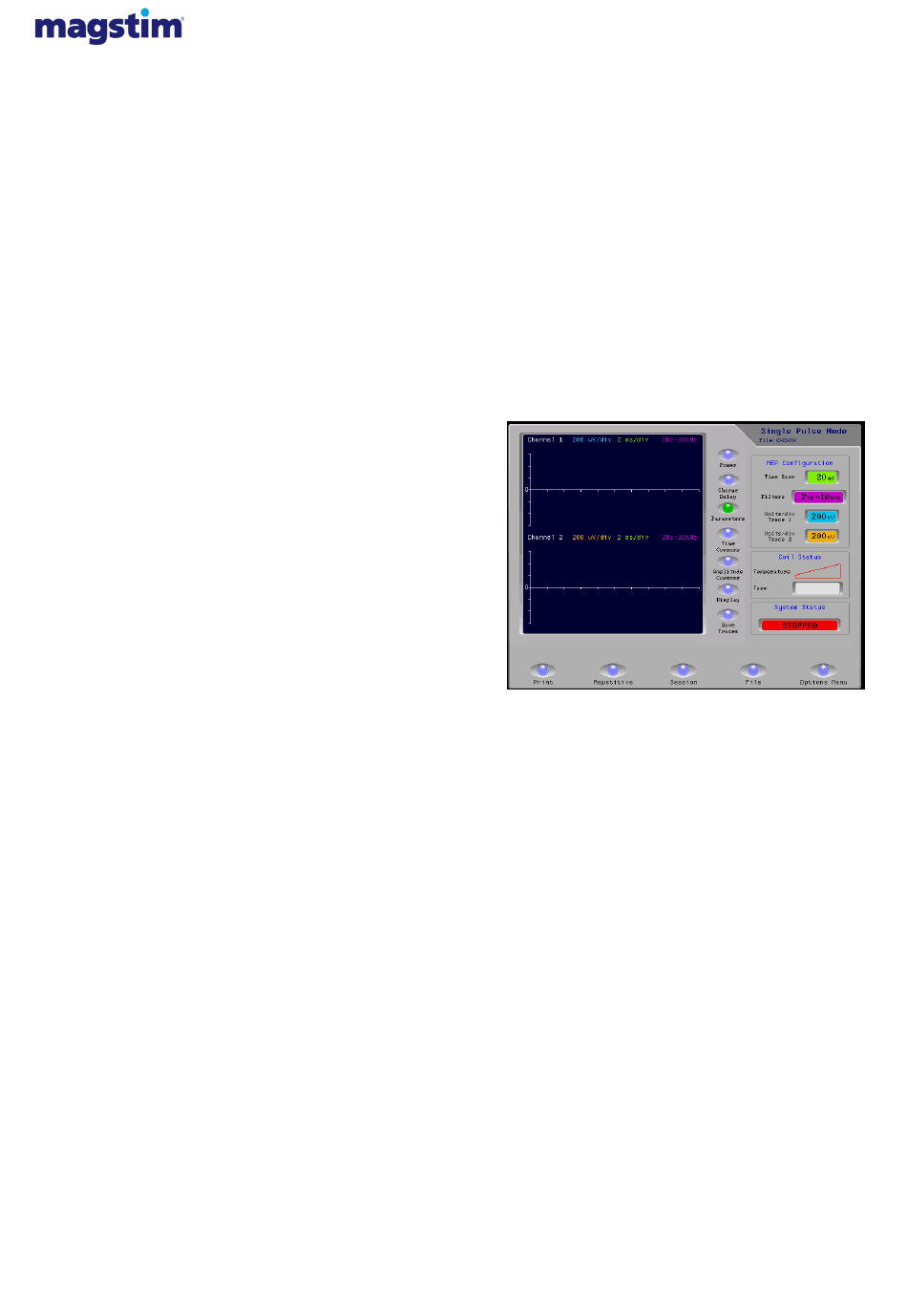

Figure 4.14: Parameters Panel Window
and 20Hz-10kHz.
Volts/Div Trace 1: Selecting the Volts/Div Trace window allows the user to set the scaling factor for
channel 1. Selectable options: 50μV, 100μV, 200μV, 500μV, 1mV, 2mV, 5mV and 10mV. The default
setting is 200μV.
Volts/ Div Trace 2 : Selecting the Volts/Div Trace window allows the user to set the scaling factor for
channel 2. Selectable options: 50μV, 100μV, 200μV, 500μV, 1mV, 2mV, 5mV and 10mV. The default
setting is 200μV.
© The Magstim Company Limited
28
MOP03-EN-03
