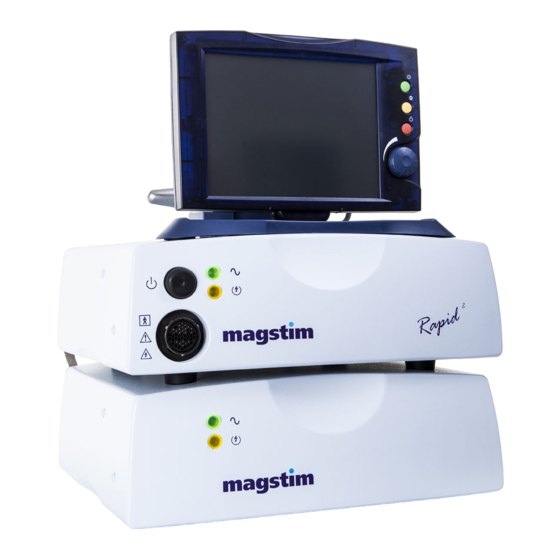

MAGSTIM Rapid2 Operating Manual

Hide thumbs Also See for Rapid2:
Table of Contents

Advertisement

Quick Links

Download this manual
Magstim Rapid²
Operating Manual
MOP03-EN
Revision 03
February 2015

Advertisement

Table of Contents
loading

Related Manuals for MAGSTIM Rapid2

Summary of Contents for MAGSTIM Rapid2

  • Page 1 Magstim Rapid² Operating Manual MOP03-EN Revision 03 February 2015...

  • Page 2: Table Of Contents

    Frequently Used Functions..................2 Warnings and Precautions ................. 3 Section 2 Product Descriptions ..................5 Section 3 Magstim Standard Rapid² & Super Rapid² ..............5 Magstim Rapid² Plus¹ ..................... 10 Magstim Rapid² User Interface ................15 Accessories ......................17 Operating Instructions ..................19 Section 4 Preparation ......................

  • Page 3: Guarantee

    The Capacitor is guaranteed for a period of two years from the date of shipment; or up to a maximum of 1 million discharges; whichever is reached first. The Magstim Company Ltd. reserves the right to perform guarantee services in its factory, at an authorised repair station, or at the customer’s installation; at the discretion of the company.

  • Page 4: Introduction

    In addition, no skin preparation is required and stimulation can be achieved through clothing. The Magstim Rapid² systems are intended for use by, or under the supervision of, a medical practitioner or investigator who has knowledge about the principles of TMS, physiology and potential side effects of TMS.

  • Page 5: Devices Covered

     Rapid² Printer Package (P/N: 3804-00) If a Magstim Rapid² UI Controller is not used, a remote control will need to be used. Note: Please also consult any labelling and information accompanying stimulating coils and other accessories for safety and use information regarding these devices.

  • Page 6: Warnings And Precautions

     ensure that the system is switched off prior to removing the HV cables at the rear of the system*. High Voltages: High voltages are present in the Magstim Rapid² system and accessories during operation and for up to 20 minutes following operation. Therefore: ...
  • Page 7 Section 6.5 of this manual. MEP Pod: The MEP Pod is designed to be fitted to the Magstim Rapid² UI only. Do not attempt to connect it to a computer, or any other equipment, with a similar connector. To do so could result in electric shock/ burns to the patient at the site of electrode attachment.

  • Page 8: Product Descriptions

    Magstim Rapid² magnetic stimulators combine stimulation frequencies from 1Hz to 100Hz with a touch screen interface which controls every aspect of the stimulator's control and operation.
  • Page 9 The armed indicator illuminates when the unit is armed and high voltages are present on the system. 3.1.1.3 Power Indicator* (3) The power indicator flashes when the Magstim Rapid² is in standby, and illuminates when the Magstim Rapid² is on. 3.1.1.4 Coil Output Socket* (4) This socket is used to connect the stimulating coil to the Magstim Rapid².
  • Page 10 Note: 115V units are identical in appearance to the 230V units, with the exception of the voltage/power rating labels sited to the rear 3.1.2.1 UI Cable* (1) The UI cable connects the Rapid² UI to the Rapid² mainframe. © The Magstim Company Limited MOP03-EN-03...
  • Page 11 Foot Switch Pneumatic Socket* (9) This socket is used to connect the pneumatic foot switch to the Magstim Rapid² system. The foot switch can be used to trigger the instrument when one of the trigger buttons located on the coil is also pressed.
  • Page 12 3.1.2.10 Cooling Fan Outlet (10) With the Magstim Rapid² system turned on, air is drawn through slots at the bottom of the instrument and expelled through the fan outlet. There should be no obstructions placed closer than 50mm to the fan outlet.

  • Page 13: Magstim Rapid² Plus¹

    Figure 3.5: Detailed front panel of Rapid² Plus¹. 3.2.1.1 On/Off/Standby* (1) This switch toggles the operational state of the Rapid 3.2.1.2 Armed Indicator* (2) The armed indicator illuminates when the unit is armed and high voltages are present on the system. © The Magstim Company Limited MOP03-EN-03...
  • Page 14 Coil Output Socket* (4) This socket is used to connect the stimulating coil to the Magstim Rapid². Note that the unit Note: It is normal for the pin indicated on the label to protrude from the coil socket. This is an intentional design feature.
  • Page 15 (13) (14) (15) Figure 3.8: Detailed rear panel of Rapid² Plus¹. Note: 115V units are identical in appearance to the 230V units, with the exception of the voltage/power rating labels sited to the rear © The Magstim Company Limited MOP03-EN-03...
  • Page 16 3.2.2.9 Isolated Trigger Port* (9) This 26 way D-Type connector is situated on the rear of the UI and has three rows of pins. It provides trigger input and output signals. (see Appendix B). © The Magstim Company Limited MOP03-EN-03...
  • Page 17 3.2.2.11 Cooling Fan Outlet (11) With the Magstim Rapid² system turned on, air is drawn through slots at the bottom of the instrument and expelled through the fan outlet. There should be no obstructions placed closer than 50mm to the fan outlet.

  • Page 18: Magstim Rapid² User Interface

    3.3.1.3 System Stop Button* (3) The Magstim Rapid² can be disarmed and put into a safe state by pushing the red STOP button. In this mode the system will discharge internally. 3.3.1.4 Output Control* (4) This control allows the user to change the screen-selected parameter to the desired value.
  • Page 19 This socket is situated on the rear of the left hand side panel of the UI. This allows connection of an SD Card. This removable memory storage facility enables transfer of data between the UI and external devices, such as PCs. © The Magstim Company Limited MOP03-EN-03...

  • Page 20: Accessories

    Note: The Magstim Rapid² system should only be powered using the power leads supplied by The Magstim Company Ltd. Stimulating coils 3.4.1 A range of stimulating coils is available for use with the Magstim range of products. For more details, please contact the Sales department. Contact details are shown in Section 7.3. MEP Pod 3.4.2 NOTE.
  • Page 21 3.4.3 The printer makes it possible to generate copies of the majority of the information that is stored within the Magstim Rapid². The Print option allows for screen or file information to be obtained on paper. Figure 3.12: Printer In any screen where the ‘Print’ Button is visible the Printer can produce a reproduction of the information that is displayed on screen.

  • Page 22: Operating Instructions

    Note: The Magstim Rapid² system should be assembled following the instructions provided within this section to ensure continued compliance of IEC 60601-1:2005. Note: ensure not to position the Magstim Rapid² system, so it is difficult to disconnect the power lead.
  • Page 23 Main Frame. Please refer to section 3 for reference. Rapid² Plus²: Connect a 10A link lead from the Dual PSU Module to the Magstim Plus1 and from the Magstim Plus1 PSU module and the stimulator Main Frame. Please refer to section 3 for reference.
  • Page 24 Magstim Rapid² Operating Manual Connect the UI Controller to the Magstim Rapid² Main Frame via the UI cable supplied. If a foot switch is to be used, insert the pneumatic connector of the foot switch to the rear panel Foot Switch Socket on the mainframe*.

  • Page 25: Connection Of Accessories

    Figure 4.4*. If using a stand held coil, place the coil in the stand. Figure 4.4: Attaching the coil to the coil holder Connect the stimulating coil to be used to the Magstim Rapid² unit*. Note: There is locating key on the coil connector, which needs to be aligned with the corresponding receptor on the stimulator coil socket.
  • Page 26 Connect the other end of the cable to the back of the UI via an optical RS/232 Interface cable by sliding the connector into the slot until tight. Connect the printer to its power supply and the power supply to the mains. © The Magstim Company Limited MOP03-EN-03...
  • Page 27 Align the edges of the paper roll against the paper holders and push down gently. Pull the paper through and close the cover. The printer is now ready to be used. Roller Paper On/Off Cover Button Cover Open Feed Button Figure 4.9: Printer © The Magstim Company Limited MOP03-EN-03...

  • Page 28: Operation

    Apply mains power to the Rapid² system by switching the mains power switch on the rear panel of the Rapid² Main Frame and, if relevant the mains power switch on the rear panel of the Magstim Plus1 to the ON (I) position. Switch on the system using the ON/OFF/ STANDBY button on the front of the Rapid²...
  • Page 29 Magstim Rapid² Operating Manual Press the green RUN button on the Rapid² UI to arm the Magstim Rapid²*. The system will charge and the UI will display READY in the system status window. Note: The system cannot be armed if the footswitch is active.
  • Page 30 ON, the duration window allows the duration of the charge delay to be Figure 4.13: Charge Delay Panel Window adjusted between 1ms and 10000ms in 1ms increments using the Rotary Control Knob. © The Magstim Company Limited MOP03-EN-03...
  • Page 31 Volts/ Div Trace 2 : Selecting the Volts/Div Trace window allows the user to set the scaling factor for channel 2. Selectable options: 50μV, 100μV, 200μV, 500μV, 1mV, 2mV, 5mV and 10mV. The default setting is 200μV. © The Magstim Company Limited MOP03-EN-03...
  • Page 32 Amplitude Cursors must be ON for this option to become available. Note, in Repetitive Mode or Session Mode, the Amplitude Cursor positions set in Single Pulse Mode will remain marked by the Amplitude Cursor on the trace. © The Magstim Company Limited MOP03-EN-03...
  • Page 33 Session: This takes the user to the Session Setup screen (see Section 4.4.4) File: This takes the user to the File Maintenance screen (see Section 4.4.6). Options Menu: Selection of this option will return the user to the Options Menu screen. © The Magstim Company Limited MOP03-EN-03...
  • Page 34 1 and 999 in steps of 1. The number of trains cannot be set to exceed the maximum total number of pulses of 65000. Charge Delay: Select the ‘Charge Delay’ window to turn the Charge Delay on and off. The default setting is OFF. © The Magstim Company Limited MOP03-EN-03...
  • Page 35 In order to save the traces it is necessary to return to Single Pulse Mode and save the data as before. The information will remain on each trace window until a new trace is generated, when the new trace will overwrite the previous trace. © The Magstim Company Limited MOP03-EN-03...
  • Page 36 The time can be set between 1 and 500 seconds in increments of 0.1 seconds. The cycle time represents the sum of the ‘Delivery Time’ and the ‘Wait Time’. The delivery time is dependant © The Magstim Company Limited MOP03-EN-03...
  • Page 37 Repetitive Run Mode: Burst Session Details Panel: The Session Details panel shows a pictorial representation of the cycle currently running, and shows the settings established in Repetitive Setup and any associated charge delay duration if appropriate. © The Magstim Company Limited MOP03-EN-03...
  • Page 38 To alter the settings of a subsequent line, touch the window of the required setting on that Figure 4.22: Session Mode Setup Window particular line. Subsequent lines cannot be selected if the required settings have not been set on the previous line. © The Magstim Company Limited MOP03-EN-03...
  • Page 39 This option will return the session to the point at which it was stopped. This will always begin at the start of the next session line regardless of when the last session line was stopped. © The Magstim Company Limited MOP03-EN-03...
  • Page 40 ‘ignore’ option is active. It is important that those in the vicinity of the system are made aware that the system is in this mode of operation, to ensure that inadvertent triggering does not occur. © The Magstim Company Limited MOP03-EN-03...
  • Page 41 Enter: This button enters the current number in the password window for verification. If correct, the service menus are displayed. Back: This option returns the user to the System Options Menu screen. Figure 4.27: System Configuration Window © The Magstim Company Limited MOP03-EN-03...
  • Page 42 Patient Details: Selection of this option will call up the Patient Details Screen. See Section 4.4.6.1 Back: Selection of this option returns the user to the previous screen. Options Menu: Selection of this option will return the user to the Options Menu Screen. © The Magstim Company Limited MOP03-EN-03...
  • Page 43 ‘Yes’ been entered. If a patient file is open, the patient details will be removed from the file. File: Selection of this option will call up the File Maintenance screen. Options Menu: Selection of this option will return the user to the Options Menu Screen. © The Magstim Company Limited MOP03-EN-03...
  • Page 44 To Rename a File: 1. Select the File in the Local Store panel using the Rotary Control Knob. 2. Press ‘rename’ and use the on-screen keyboard to make changes. 3. Press ‘Save’ on the keyboard to confirm © The Magstim Company Limited MOP03-EN-03...
  • Page 45 Make sure an SD Card Reader is connected to the system. Insert the SD card. 1. Using Windows Explorer select the drive associated with the SD card. 2. Select the Format option. 3. Under File System select the FAT option. 4. Follow the instructions on screen. © The Magstim Company Limited MOP03-EN-03...
  • Page 46 The printer makes it possible to generate copies of the majority of the information that is stored within the Magstim Rapid². The Print option allows for screen or file information to be obtained on paper. In any screen where the ‘Print’ Button is visible the Printer can produce a reproduction of the information that is displayed on screen.
  • Page 47 The temperature of the internal components become elevated during operation. The system should be left on, and uncovered, for approximately ten minutes following completion of stimulation to enable the fan to cool the internal system components. © The Magstim Company Limited MOP03-EN-03...

  • Page 48: Maintenance

    If there are any signs of physical damage to the Magnetic Stimulator, PSU, UI, stimulating coil, or any Magstim accessories, including cables, they must not be used and should be returned to The Magstim Company Limited for servicing and repair (see Section 7.2 for contact details).*...

  • Page 49: Voltage Selection And Fuse Rating

    Fuse Replacement: 5.3.1 1. The Magstim Rapid² must be disconnected from the mains by disconnecting the power cord from the PSU. 2. Insert the tip of a small blade screwdriver or similar tool into the slot (2) (refer to diagram 5.2) and gently lever up the retaining lip of the fuse holder.

  • Page 50: Cleaning And Disinfecting

    Magstim Rapid² and accessories have dried thoroughly before use. It is the responsibility of the user to ensure the Magstim Rapid² is cleaned when necessary. Note: Do not clean or wipe the touch screen with anything abrasive as it will cause permanent...

  • Page 51: Servicing

    Service training courses are available on request. For further information contact the Magstim Company Service Manager. Device Lifetime The lifetime of the Magstim Rapid² and accessories is defined as being five years from the date of shipment. The Magstim Company Limited will support the products for the duration of their lifetime. Disposal When a Magstim Rapid²...

  • Page 52: Specifications

    SECTION 6 SPECIFICATIONS General Specifications During use, the type of protection against electric shock provided by the Magstim Rapid² system is classified as Class 1. The degree of protection against electric shock for applied part accessories is classified as Type BF Applied Parts.

  • Page 53: Additional Safety Specifications

    Power Supply: Power: 115V ±10% ~ 60Hz 230V ±10% ~ 50Hz 240V ±10% ~ 60Hz Maximum Power: 230V/240V Rapid² Systems: Standby: All Systems: 20VA During Discharge Standard Rapid²: 3kVA Super Rapid²: 6kVA Rapid² Plus¹: 9kVA © The Magstim Company Limited MOP03-EN-03...
  • Page 54 (Software ref: 3519) Please note: All specifications are subject to alteration. Accessory Specifications: Stimulating Coils: Compatibility: See Appendix E MEP Pod: Class Type: Class 1, BF Channels: CMMR: > 90dB Dynamic Range: ± 30mV ±10% © The Magstim Company Limited MOP03-EN-03...

  • Page 55: Output Safety, Repetition Rate Of Stimulus

    5°C to 40°C Transport and storage temperature: -19°C to 60°C Operating, transport and storage relative humidity: 10% to 80% (non-condensing) Operating atmospheric pressure: 80kPa to 106kPa Transport and storage atmospheric pressure: 50kPa to 106kPa © The Magstim Company Limited MOP03-EN-03...

  • Page 56: Handling

    Magstim Company Limited. The Magstim Rapid² System must be completely disconnected before shipping, including removal of the coil holder on the side of the Magstim Rapid². Failure to do so is likely to result in transit damage to the casing.

  • Page 57: Contact Details

    +44 (0)1994 240798 Fax: +44 (0)1994 240061 E-mail: info@magstim.com Website: www.magstim.com Servicing Enquiries Telephone: +44 (0)1994 242900 Fax: +44 (0)1994 240061 E-mail: service@magstim.com Sales Enquiries Telephone: +44 (0)1994 241111 Fax: +44 (0)1994 242917 E-mail: sales@magstim.com © The Magstim Company Limited MOP03-EN-03...

  • Page 58: Appendix A - System Error Codes

    EMC Detected (Coil adapter only). Invalid Coil Power Identification (Coil adapter only). Hardware Stop activated. Watchdog Timeout. Temperature Interlock 3 activation. Coil stop line fault. Air Extraction Unit Not Operating Correctly (3530-00 coil only) © The Magstim Company Limited MOP03-EN-03...
  • Page 59 Base under temperature HV CAP under temperature Snubber board under temperature Ambient over temperature System failed to produce protocol For diagnosis, contact The Magstim Company Limited service department (see Section 7.2 for contact details). © The Magstim Company Limited MOP03-EN-03...

  • Page 60: Appendix B - Trigger Input / Output

    Trigger Edge / Level When set to edge trigger, the Magstim Rapid² will only be triggered when the logic level being applied on the Tin+ or Tin- pin is changed. On the Tin+ pin, triggering will occur when the logic level is changed from low to high. On the Tin- pin, triggering will occur when the logic level is changed from high to low.

  • Page 61: Appendix C - Sd Card File Details

    Each line of the file starts with a text string that describes the data that follows on that line. Each line of data ends with a carriage return line feed request, <CR>. File Layout The following details the order the data is stored in the Magstim UI generated file. Version, <file format number>, <CR> File, <system filename>, <CR>...
  • Page 62 <special feature>, <filters index>, <CR> Note 1. Line only added to files by UI software version V6.0 or greater. File line Details The following details the content and data range limits for each data lines contained in the Magstim UI generated file. Version.
  • Page 63 Number of cycles: 1 – 999 at a resolution of 1. Note all time periods are specified in multiples of tenths of a second i.e. if a time period of 6.5 seconds is required then a value of 65 is entered between the commas. © The Magstim Company Limited MOP03-EN-03...
  • Page 64 Channel 2 voltage range index, possible values and meanings are as follows: 0 = 150V; 1 = 300V; 2 = 600V; 3 = 1.5mV; 4 = 3mV; 5 = 6mV; 6 = 15mV; 7 = 30mV. Special feature, always 0. © The Magstim Company Limited MOP03-EN-03...

  • Page 65: Appendix D - Power/Frequency

    “Arial- western European” APPENDIX D – POWER/FREQUENCY 230V/240V Rapid Systems Operating Frequency (Hz) Max. 100Hz Available Output Power (%) Standard Rapid Super Rapid Super Rapid Plus 0 – 30% © The Magstim Company Limited MOP03-EN-03...
  • Page 66 Operating Frequency (Hz) Max. 100Hz Available Output Power (%) Standard Rapid Super Rapid Super Rapid Plus 115V Rapid Systems Operating Frequency (Hz) Max. 60Hz Available Output Power (%) Standard Rapid Super Rapid² Standard Rapid 0-30 © The Magstim Company Limited MOP03-EN-03...
  • Page 67 Magstim Rapid² Operating Manual Operating Frequency (Hz) Max. 60Hz Available Output Power (%) Standard Rapid Super Rapid² Standard Rapid © The Magstim Company Limited MOP03-EN-03...

  • Page 68: Appendix E - Coil Compatibility

    System Max. No. of Max. No. of Max. No. of Average Stimulations Stimulations Stimulations Coil Inductance at 50% at 80% at 100% Power Power Power 90mm Coil 23.47H 3192-00/3193-00 Double 70mm Coil 15.50H 3190-00/3191-00 © The Magstim Company Limited MOP03-EN-03...
  • Page 69 Max. No. of Average Stimulations Stimulations Stimulations Coil Inductance at 50% at 80% at 100% Power Power Power HP 90mm 1935 23.30H 9784-00 70mm 16.25H 9762-00 Db 70mm 1576 16.35H 9925-00 DC 110mm 1419 17.85H 9902-00 © The Magstim Company Limited MOP03-EN-03...

  • Page 70: Appendix F - Emc Emissions And Immunity

    The Magstim Rapid System is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Magstim Rapid System can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF...
  • Page 71 Mains power quality should be that of a (>95 % dip in U interruptions and typical commercial or hospital environment. voltage variations for 0,5 cycle If the user of the Magstim Rapid System on power supply requires continued operation during power input lines. 40 % U...
  • Page 72 AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured filed strength in the location in which the Magstim Rapid System is used...
